Description

ALL POSTED PRICES ON TRAILERS ARE DISCOUNTED FOR CASH OR CHECK ONLY SALES! ANY OTHER FORM OF PAYMENT THE TRAILER WILL BE SOLD AT FULL RETAIL PRICE!

14,000 GVWR

Standard Equipment

2 – 7000# Dexter
ST235/80R/16 LRE
7000#
14000#

2 – Electric Brakes Nev-R-Adjust
7×16 DPX 140
E-Z Lube – 1/2 Cambered

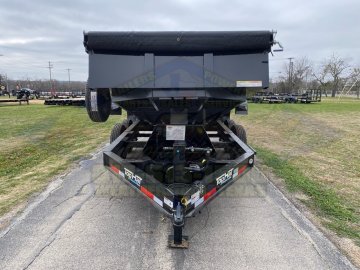

Coupler: 2 5/16″ Forged Adjustable 5/Position
Coupler: 2 5/16″ Round Adjustable on GN
Jack: 7000# Drop Leg
Jack: Dual 10000# Drop Leg on GN
Fenders: HD Diamond Plate Straight

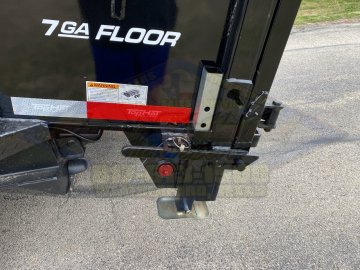

Floor: 7 GA Sheet Metal
Width: 83″ Inside Box
Brake: Electric All Wheel
Break Away Unit w/Charger
DOT Reflective Tape
Primed & Painted Underside

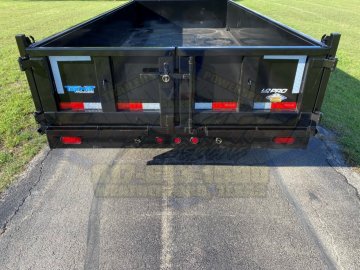

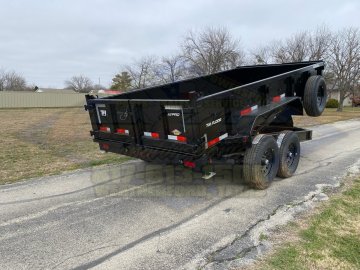

Doors: Double Action (Dual Swing Out/Spreader Gate. NA w/High Sides.)

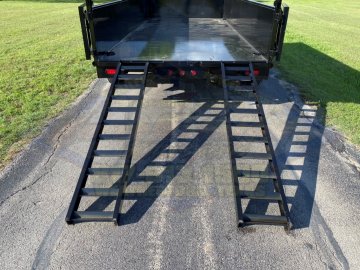

Ramp Pockets w/7′ Ramps
5/8″ D-Rings in Box (4)

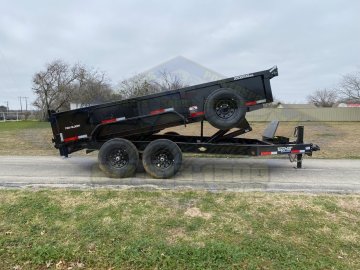

Spare Rack
Sealed Flush Mount LED Lights
Wiring Harness

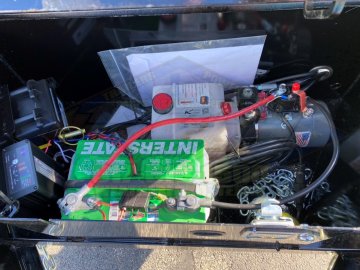

Lockable Battery/Pump Box
Deep Cycle 12V Marine Battery w/110V-5 Amp Charger
Color: Black
Frame Structure
Frame & Tongue: 8″ I-Beam Intergrated
Neck & Risers: (GN Model) 10″ I-Beam
Sides: 24″ Tall 10 GA Sheet Metal w/Toprail
Toprail: Rigid 3×2 Rectangular Tubing
Uprights: 24″ OC
Dump Body Frame: 6″ Channel
Crossmembers: 3″ Channel 16″ OC
Tarp Bracket & Tie Downs
Loading Height 4″ Lower than DP Model

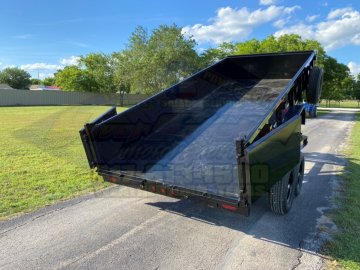

Dump Components

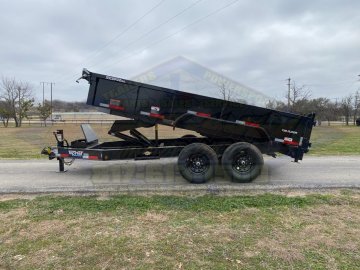

Hoist: Scissor Lift
Power Up/Power Down
Control: Pistol Grip w/10′ Cord
Safety Prop
Caulked Seams on Dump Body

Options
DPX 140 Options
6000# Axles w/12000# GVWR
Deduct 7′ Ramps
3′ High Side on 12′, 14′, 16′
4′ High Side on 12′, 14′, 16′
Note: Standard Equipment Double Action Doors NA w/High Side Option
Tarp (Shipped Loose)
Dump Tarp Installation
Gas Engine Powered Pump in Lieu of Electric Pump
Spare ST235/80R/16 LRE on 8-Hole
Hydraulic 7K Jack
