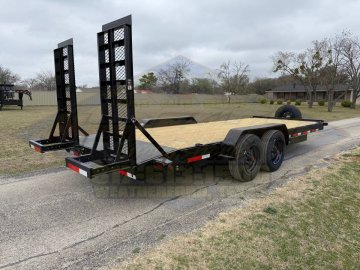

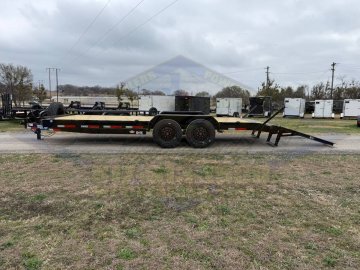

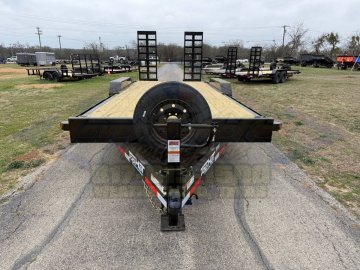

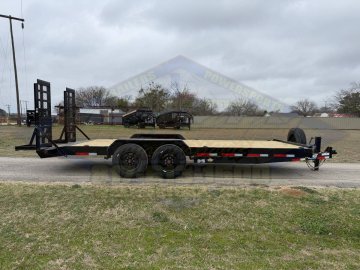

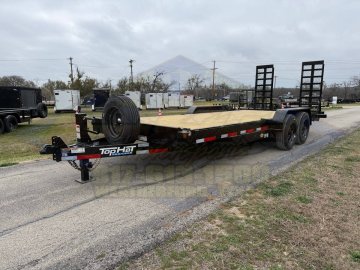

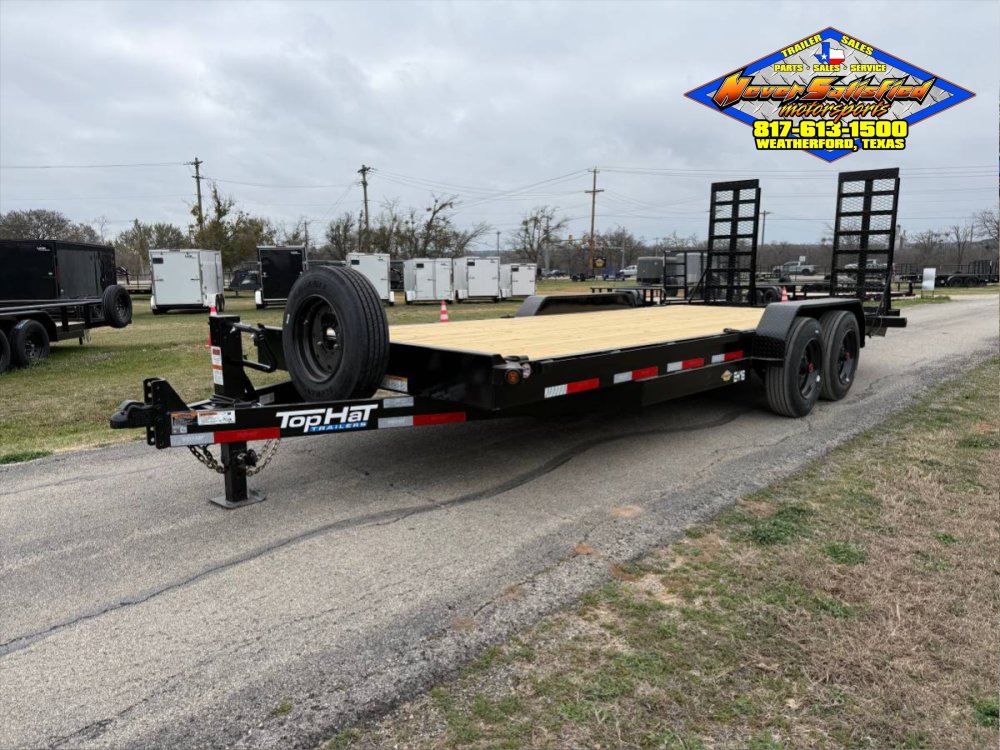

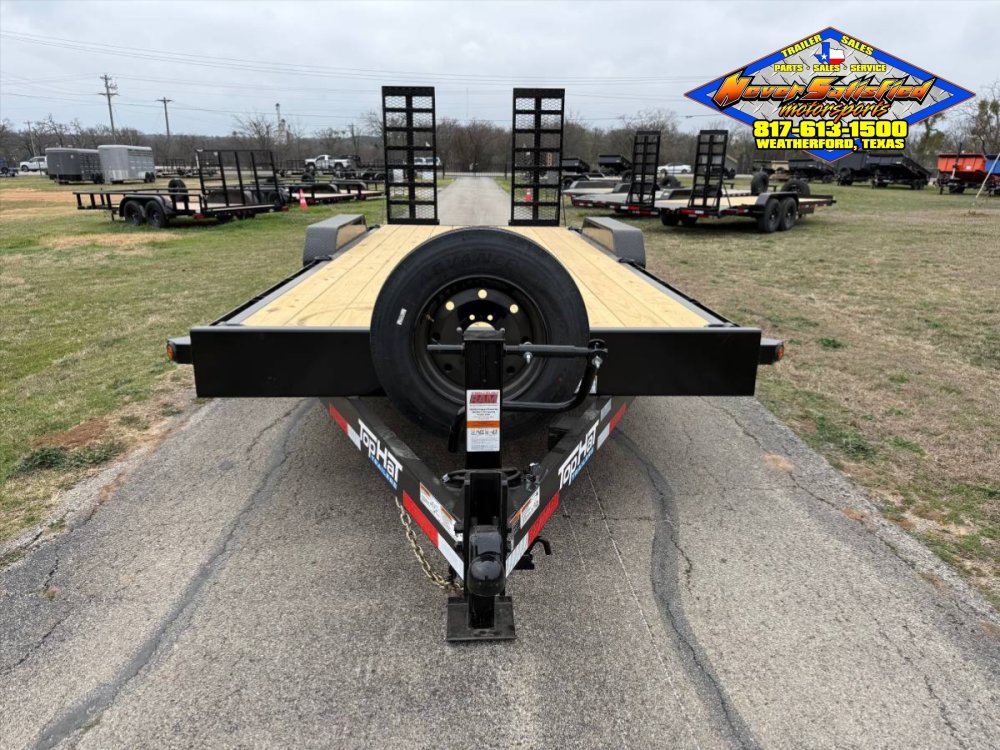

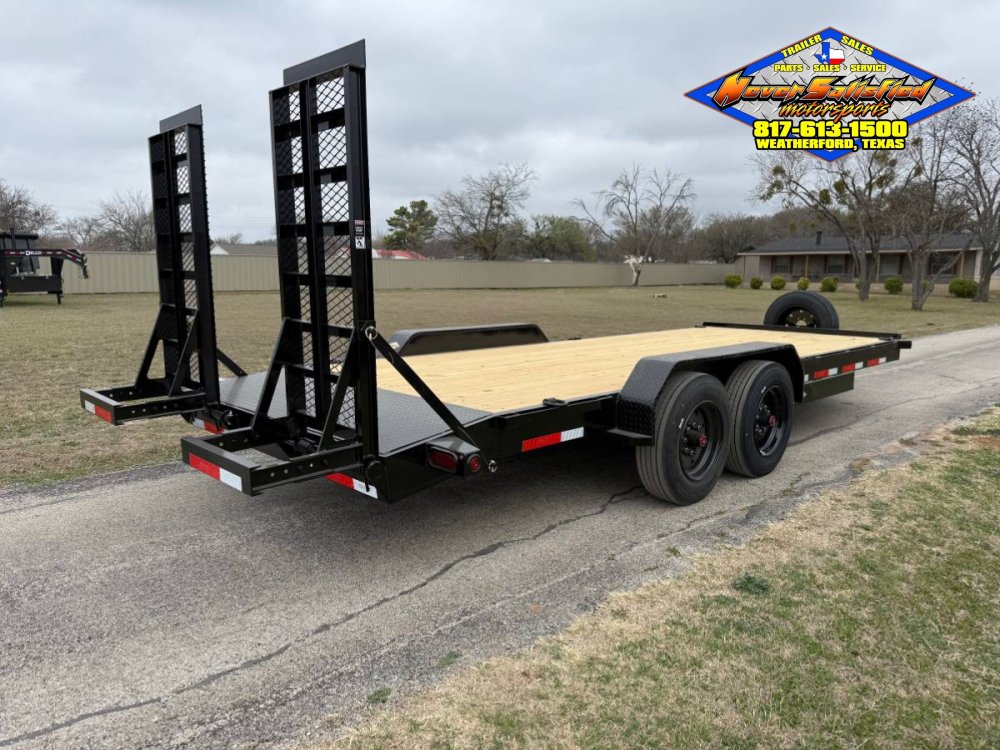

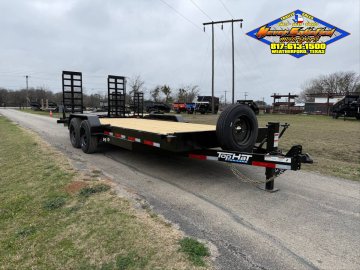

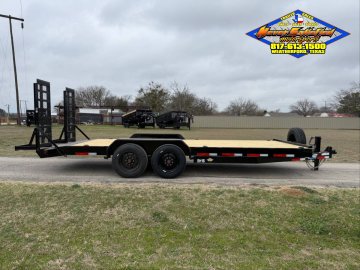

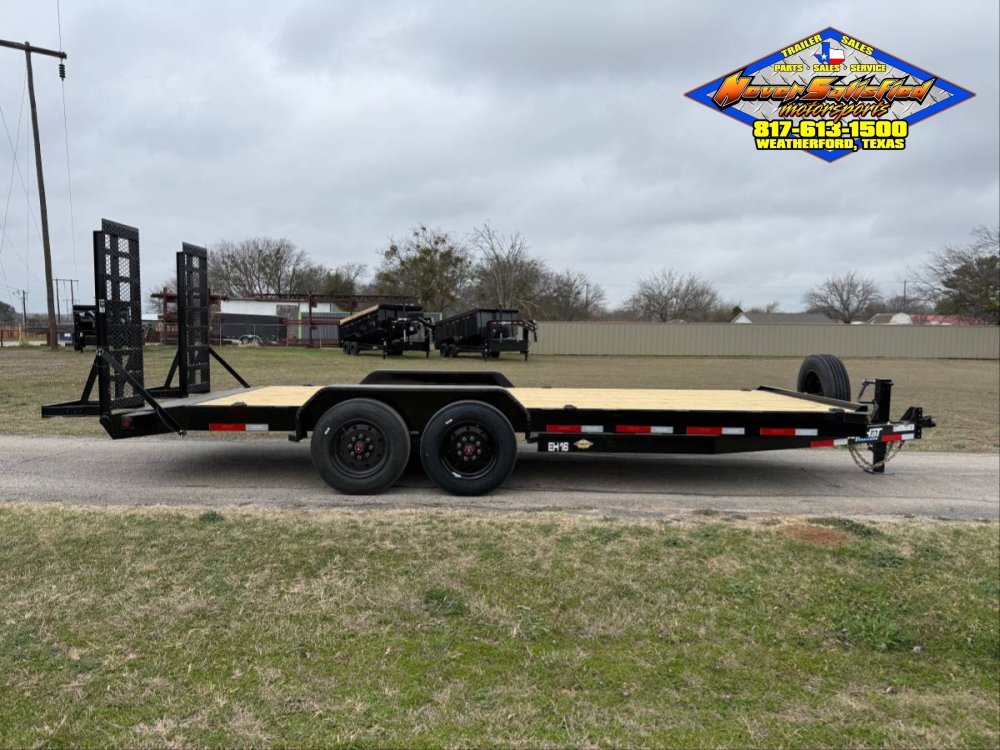

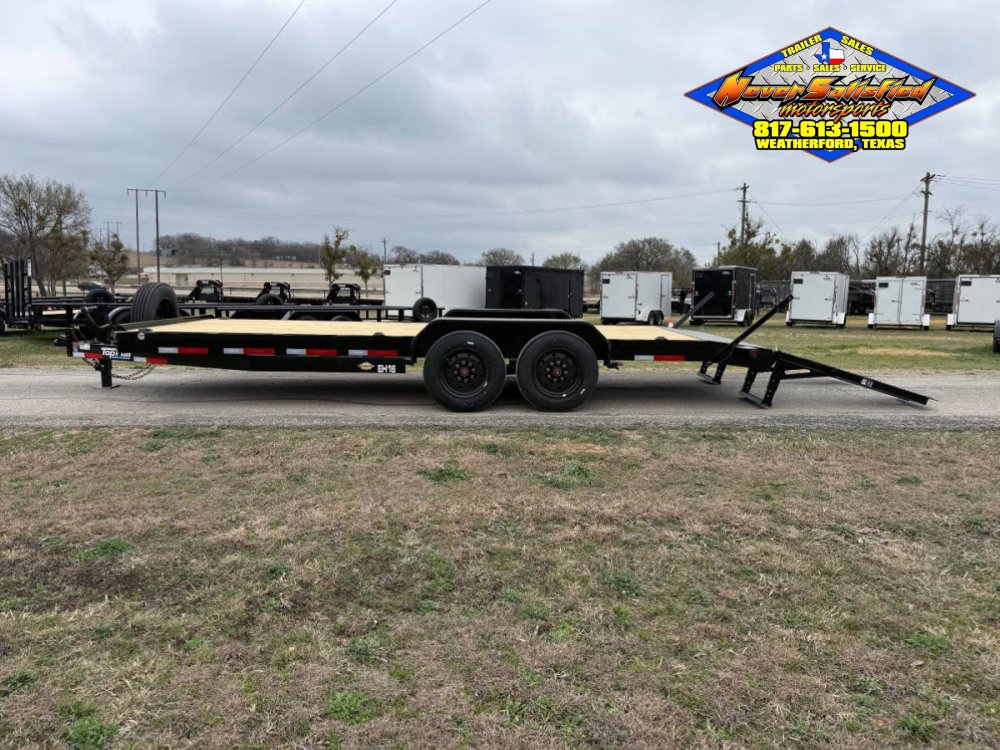

2026 TOP HAT 83" X 20' EQUIPMENT HAULER WITH WIDE STAND UP RAMPS AND SPARE, 17500-GVWR
$9,150
Trailer Specs
Stock Number:
61131
VIN/Serial Number:
4R7BU2027TN261131
Condition:
New
Year:
2026
Model:
EH16-20X83-17.5E-H
Weight (lbs):
3,780 lbs
Length:
20'
Width:
83"
GVWR (lbs):
17,500
Features:

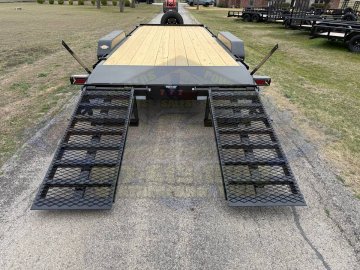

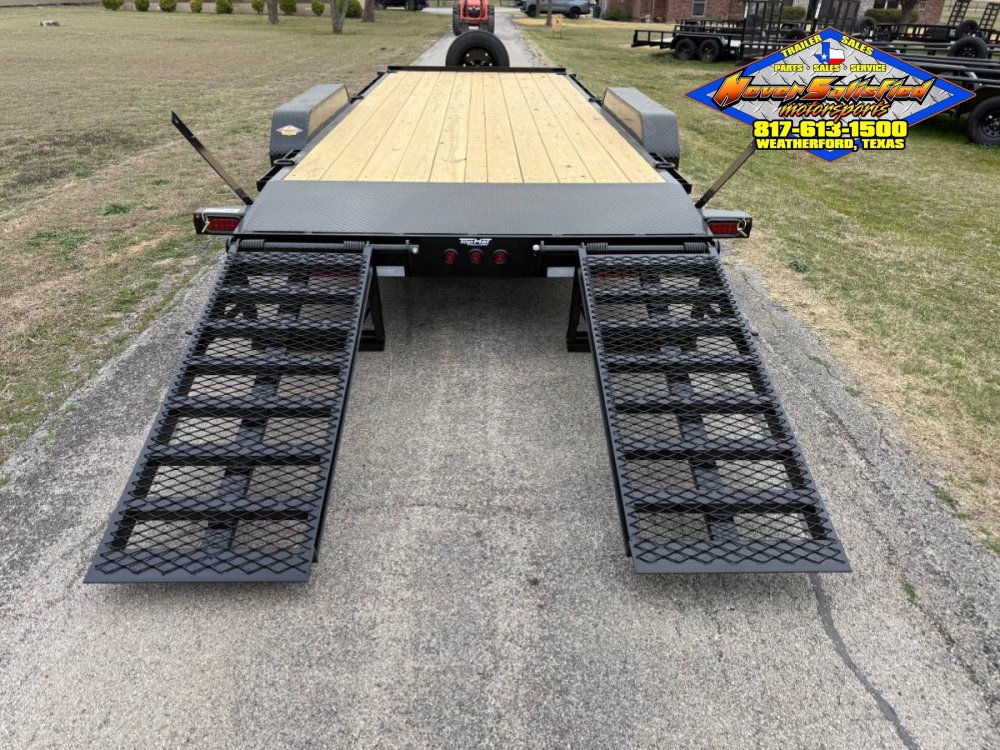

Spare Mount, Spare Tire, Stand Up Ramps, Tandem Axle, Wood Floor
Standard Equipment
- ST215/75R/17.5 LRH Tires on 8-Hole
- 8000# Dexter Oil Bath 1/2 Cambered Axles w/5/8″ Lug Studs
- Electric Brake on 2-Axles w/2 1/4″ Brake Pads
- 2 5/16″ DEMCO Easy Latch Adjustable 5/Position Coupler
- 10000# Drop Leg Jack
- HD Diamond Plate Fender (Double Broke)
- Treated Pine Floor
- Break Away Unit w/Charger
- Suspension: Slipper Spring
- DOT Reflective Tape
- Sealed Flush Mount LED Lights w/Wiring Harness
- Spare Rack
- Color: Stock
Frame Structure
- Frame: 8″ Channel
- Tongue: 6″ Channel Thru 24′
- Tongue: 8″ Channel on 26-32′
- Front Bumper w/Side Gussets
- Crossmembers: 3″ Channel 16″ OC
- 2′ Treadplate Dovetail
- Stake Pockets w/3/8×2 Rubrail
- Flush Floor
- 5/8″ D-Rings (6)
Options
- Pintle Eye Adjustable 35K
- Spare 215/75R/17.5 LRH on 8-Hole Black Mod
- Weld-on D-Rings 5/8″ (Each)
- HD 3/16″ Drive Over Fenders
- 3″ Square Tube Toprail (Side Option)
- Fork Rack (2-6″ Channel tubes set at 46″ Outside. Driver side)
- Fork Rack Tubing & dimensions can be custom w/additional fee.
- *5′ Rear Slide Channel Ramps (Must Purchase 2 Rear Stabalizer Jacks)
- Rear Stabalizer Jack (5K Top Wind Pipe Mount)
- 5′ Fold-up Channel Ramp w/Adjustable Knees & Spring Assist
- **3′ Self Cleaning Cleated Dovetail & 3′ Mini Jumbo Spring Assist Ramps (Must be 20′ or longer)
- 5′ XM Fold Up Channel Ramp w/Adjustable Knees & Spring Assist
- Above Ramp is 24″ Wide Covered w/Expanded Metal
- 3-4′ Dovetail ILO 2′ Dovetail
- 2′ Self Cleaning Cleated Dovetail ILO 2′ Treadplate Dovetail
- *Rear Slide-N Ramps on 16′ will be 4 1/2′. Rear Slides NA on 12-14′.
- **Jumbo Ramps NA on lengths less than 20′
