Description

Standard Equipment
ST235/80R/16 LRE Tires on 8-Hole
2-7000# Dexter Axles w/Electric Brakes
Axles 1/2 Cambered w/EZ Lube Hubs
2 5/16″ DEMCO Easy Latch Adjustable 5/Position Coupler
10000# Drop Leg Jack
HD Diamond Plate Fender (Double Broke)
Treated Pine Floor
Break Away Unit w/Charger
Suspension: Slipper Spring
DOT Reflective Tape
Sealed Flush Mount LED Lights w/Wiring Harness
Spare Rack
Color: Stock
Frame Structure
Frame & Tongue 6″ Channel Thru 24′
Frame & Tongue 8″ Channel 26′-32′
Front Bumper w/Side Gussets
Crossmembers: 3″ Channel 16″ OC
Stake Pockets w/3/8×2 Rubrail
Crossmembers: 3″ Channel 16″ OC
Stake Pockets w/3/8×2 Rubrail
5/8″ D-Rings (6)
2′ Treadplate Dovetail
Flush Floor
Options
Spare ST235/80R/16 LRE on 8-Hole
Weld-on D-Rings 5/8″ (Each)
HD 3/16″ Drive Over Fenders
3″ Square Tube Toprail (Side Option)
Fork Rack (2-6″ Channel tubes set at 46″ Outside. Driver side)
Fork Rack Tubing & dimensions can be custom w/additional fee.
*5′ Rear Slide Channel Ramps (Must Purchase 2 Rear Stabalizer Jacks)
Rear Stabalizer Jack (5K Top Wind Pipe Mount)

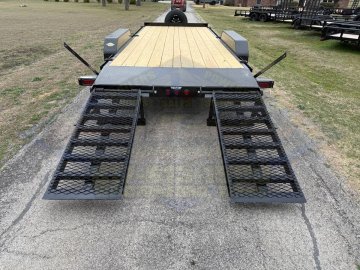

5′ Fold-up Channel Ramp w/Adjustable Knees & Spring Assist
**3′ Self Cleaning Cleated Dovetail & 3′ Mini Jumbo Spring Assist Ramps (Must be 20′ or longer)
5′ XM Fold Up Channel Ramp w/Adjustable Knees & Spring Assist
Above Ramp is 24″ Wide Covered w/Expanded Metal
3-4′ Dovetail ILO 2′ Dovetail
2′ Self Cleaning Cleated Dovetail ILO 2′ Treadplate Dovetail
*Rear Slide-N Ramps on 16′ will be 4 1/2′. Rear Slides NA on 12-14′.
**Jumbo Ramps NA on lengths less than 20′
