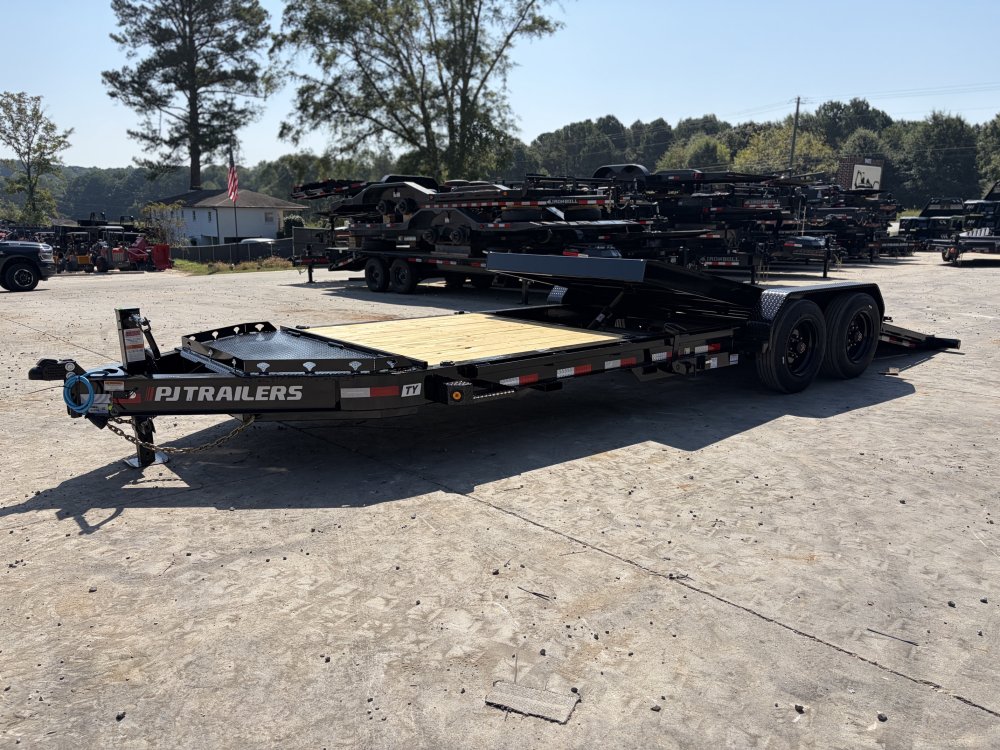

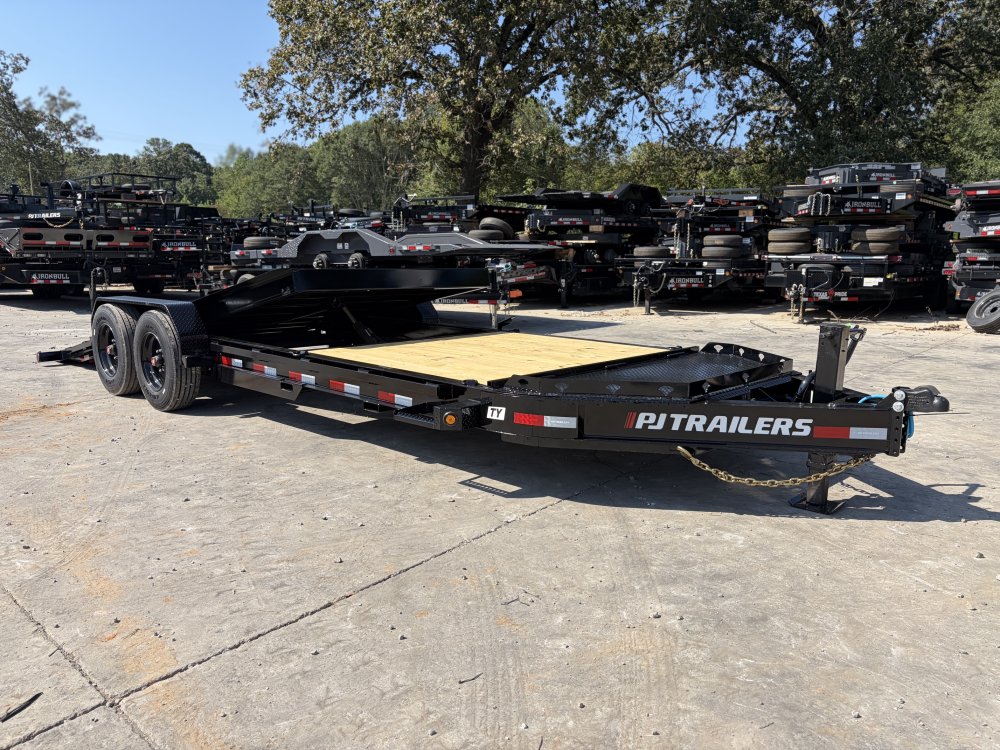

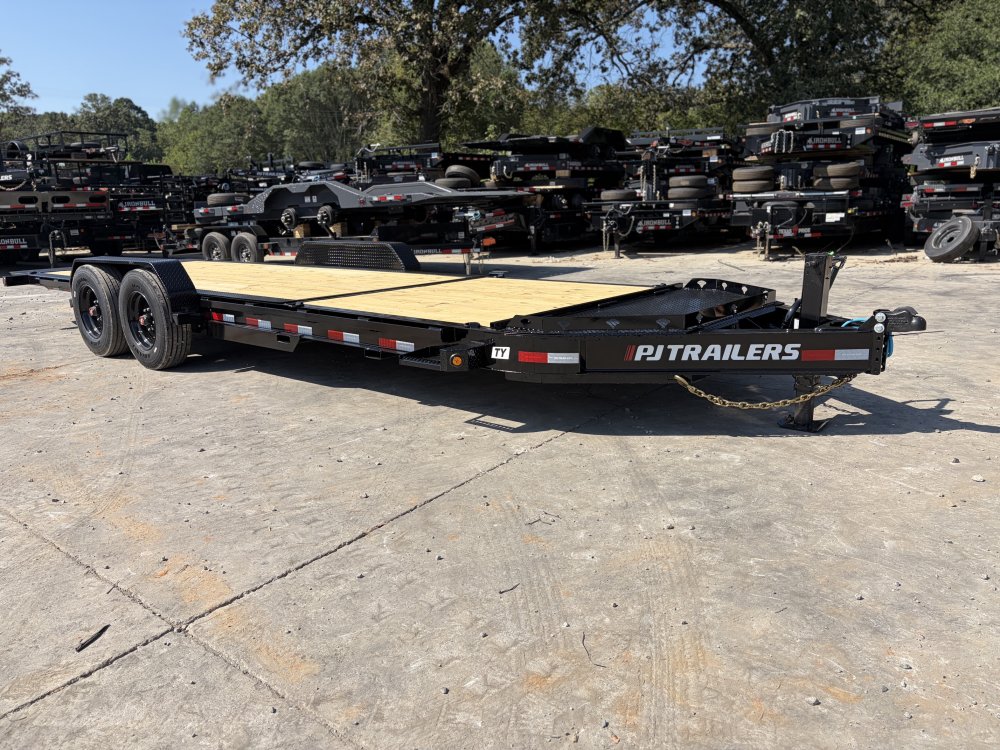

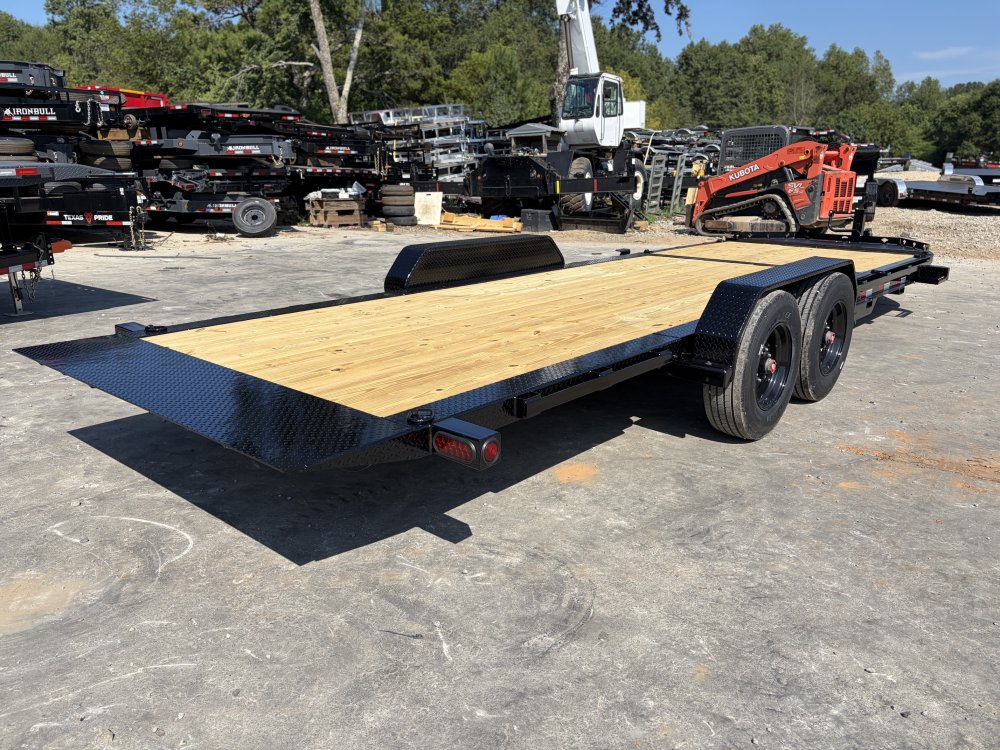

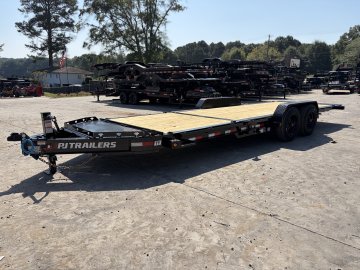

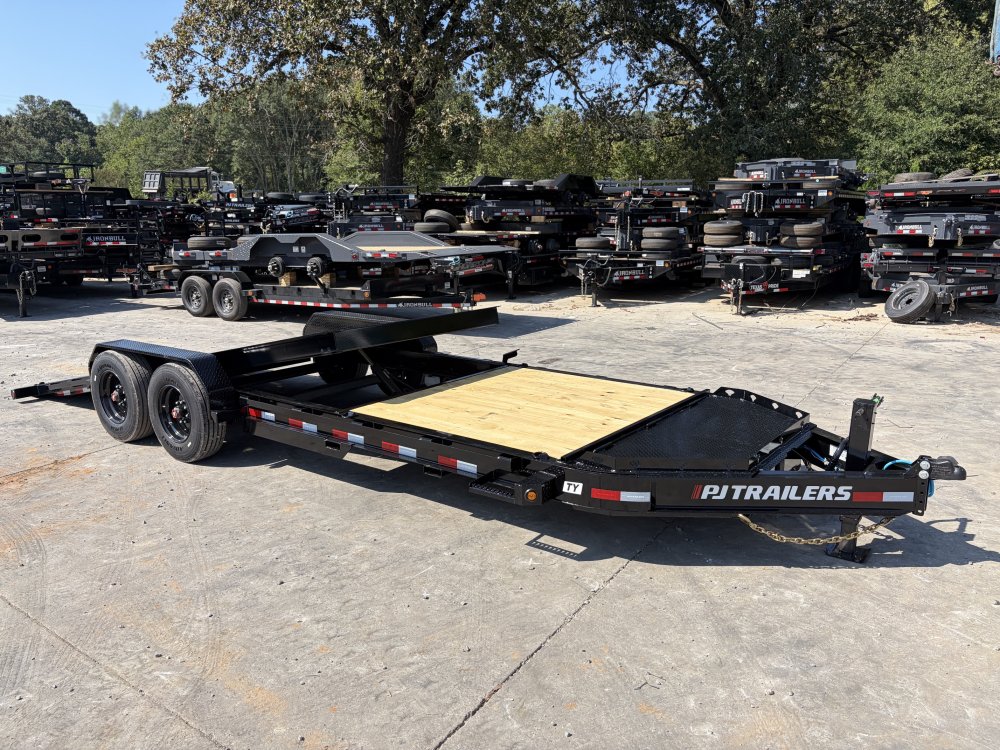

The PJ TY1 7x22 Equipment Tilt Trailer is built for serious commercial equipment hauling, combining a heavy-duty I-beam frame with a smooth gravity-tilt system and upgraded running gear. This configuration features a 16' tilt deck with a 6' stationary front deck, giving you plenty of room for skid steers, compact track loaders, mini excavators, tractors, attachments, and other machinery.

With the upgraded dual 8,000 lb oil-bath torsion axles, 17.5" wheels, and 16-ply Load Range H tires, this trailer is configured for a 17,500 lb GVWR. The heavier axle and tire package gives operators more capacity and durability for demanding commercial use compared with the standard TY configuration. (pjtrailers.com)

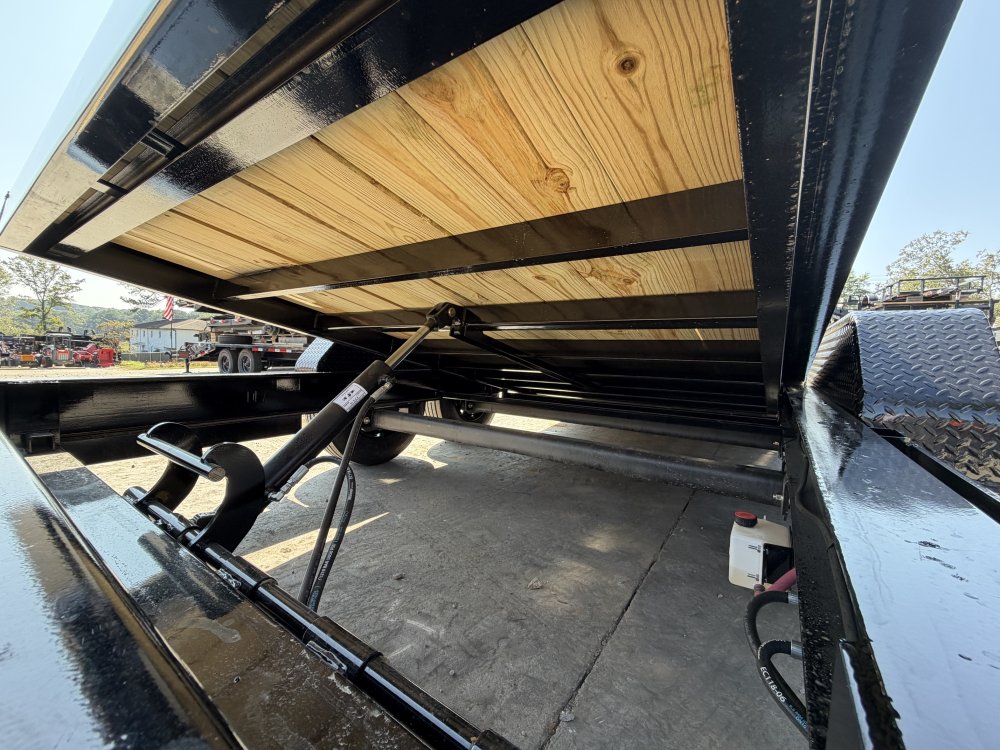

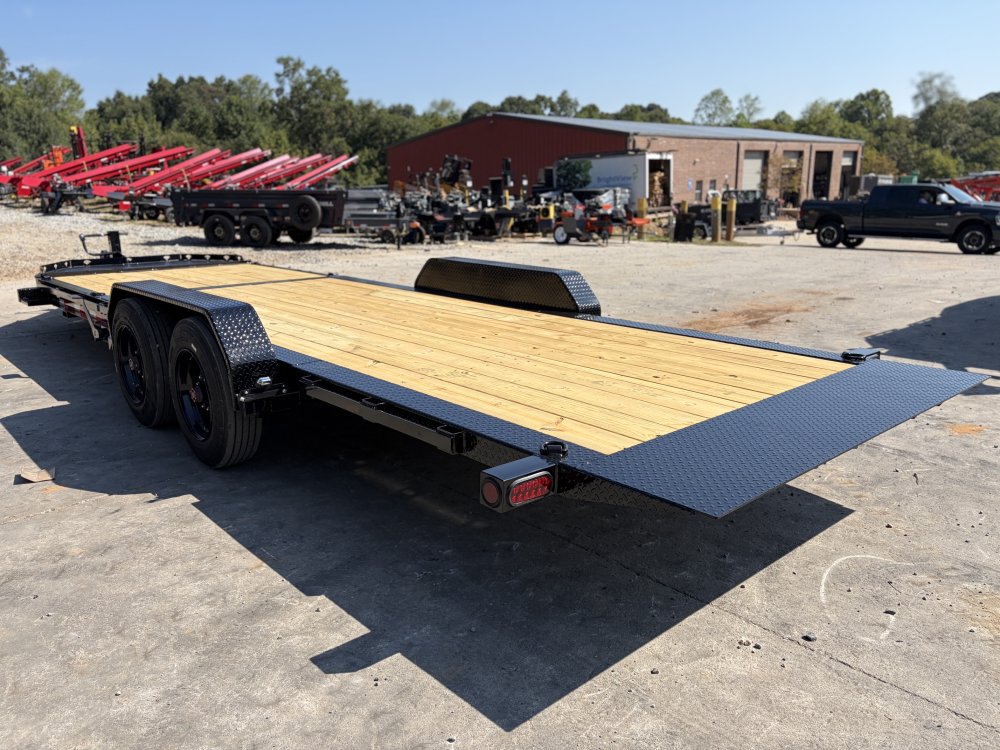

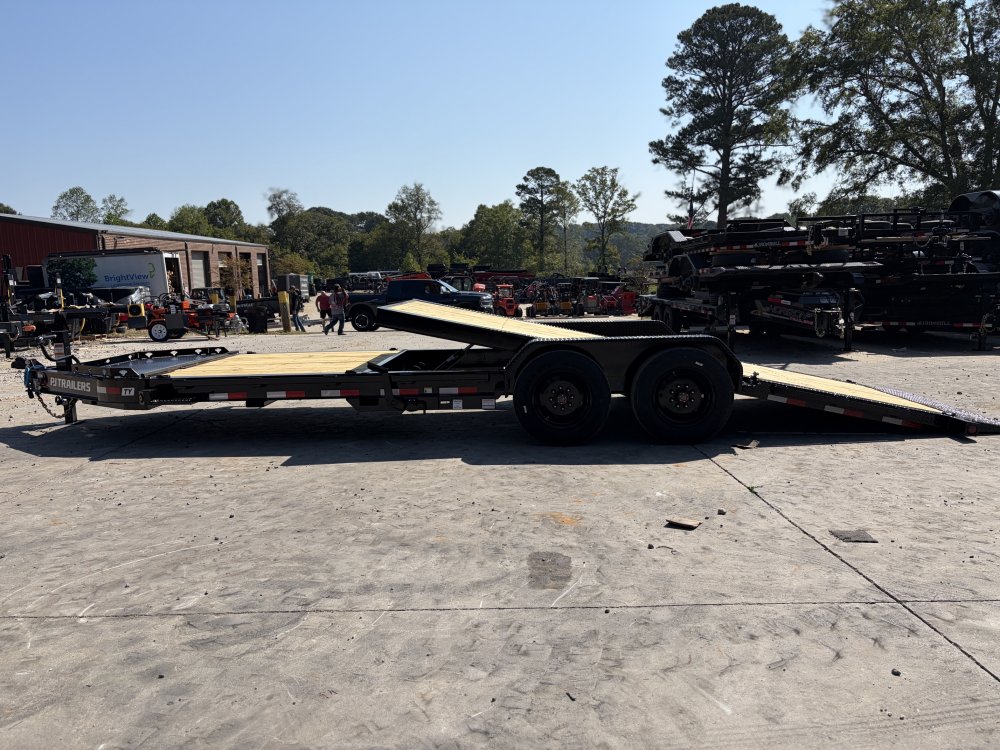

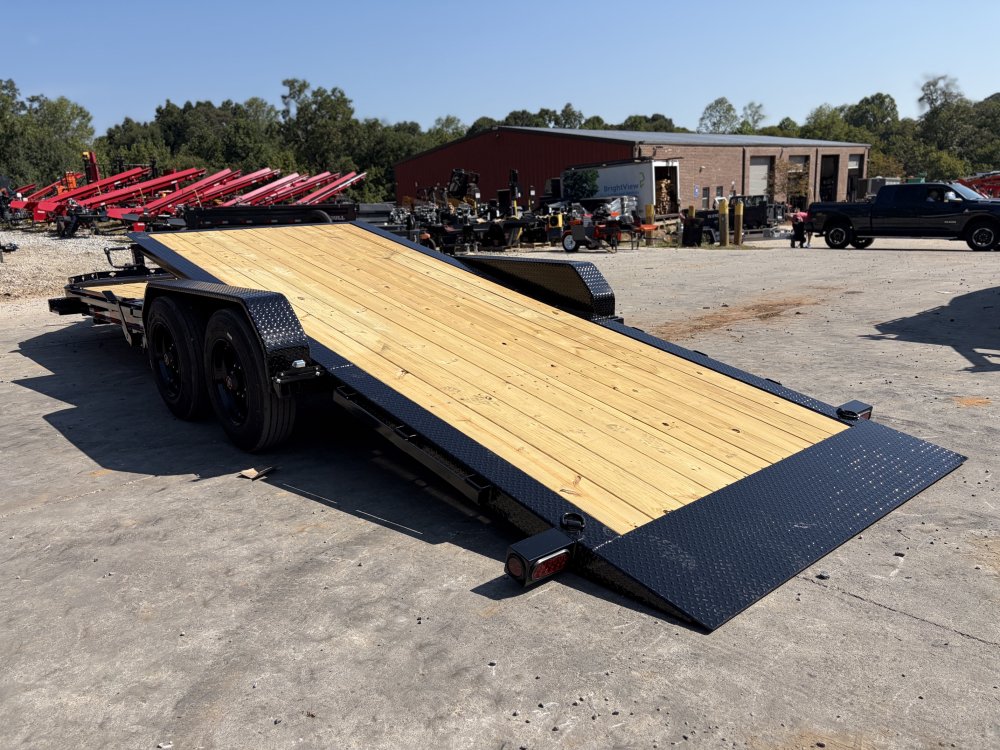

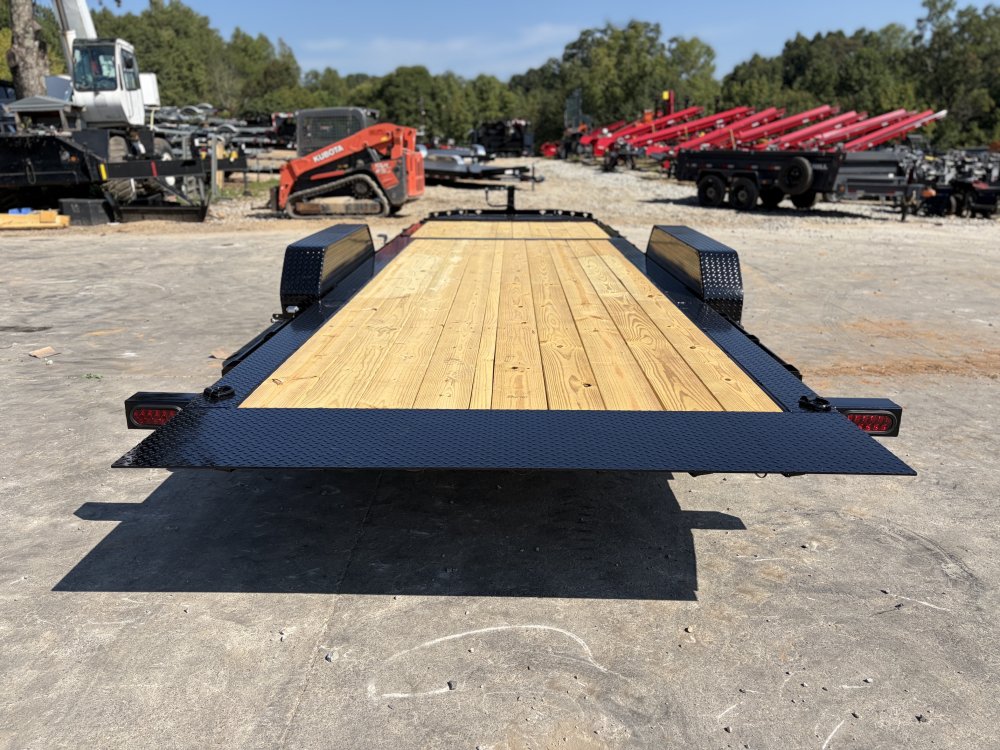

The hydraulically dampened gravity tilt deck provides controlled loading and unloading without the hassle of separate ramps, while the 12-degree tilt angle and knife-edge rear help create a smooth approach for lower-clearance equipment. PJ builds the TY on an 8" x 10 lb I-beam frame with an 8" I-beam tongue and closely spaced crossmembers for a strong, rigid hauling platform. (pjtrailers.com)

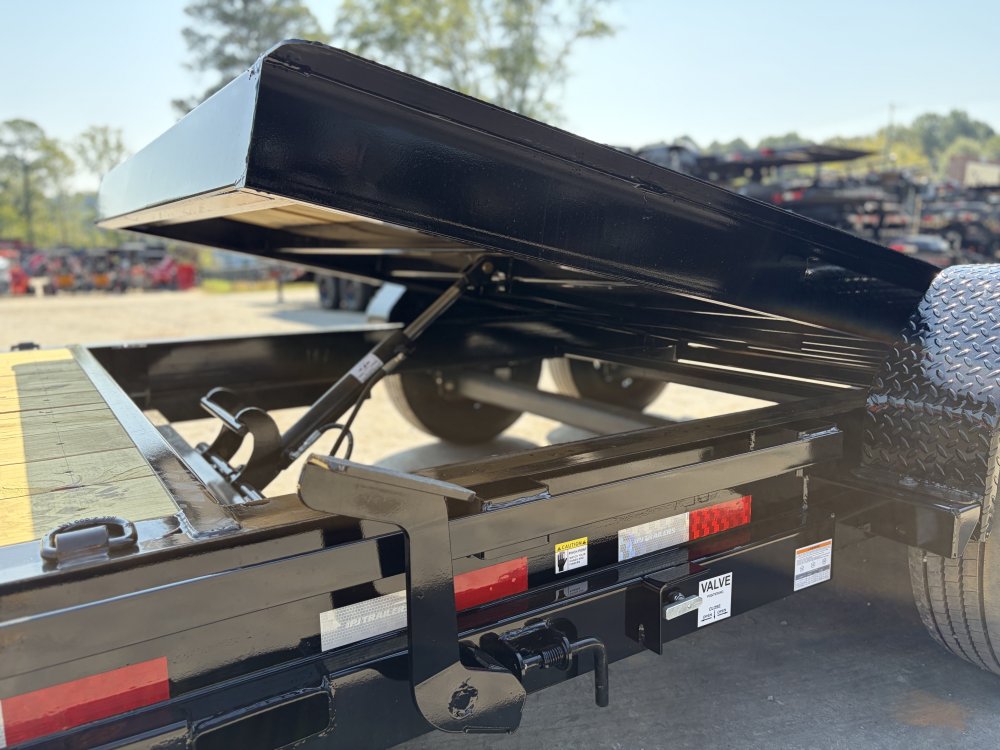

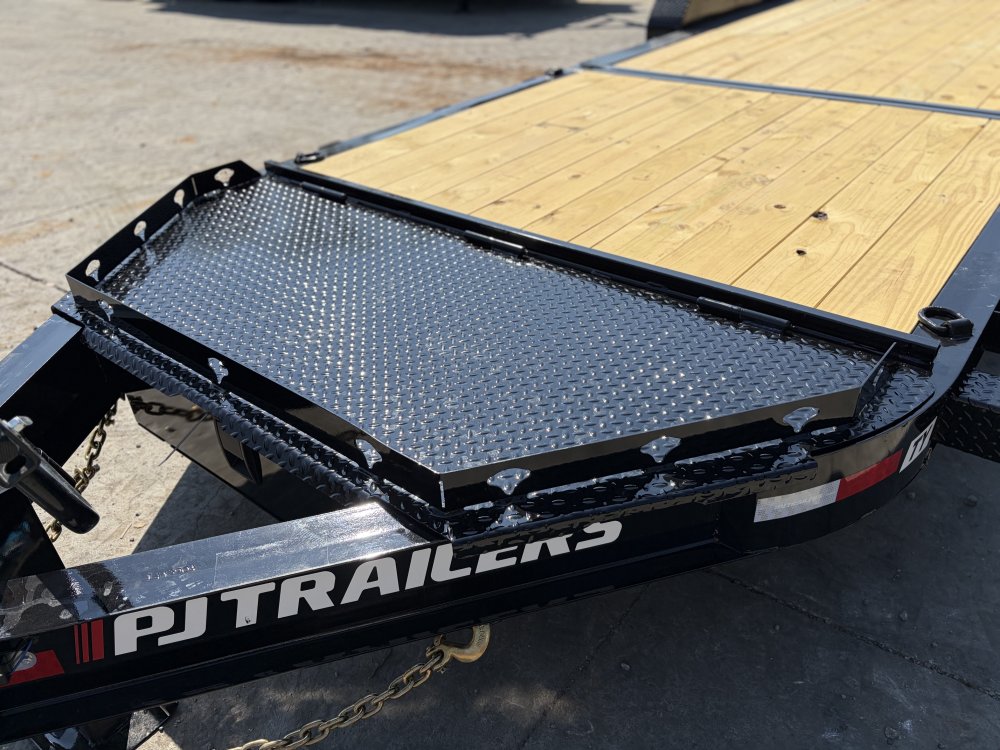

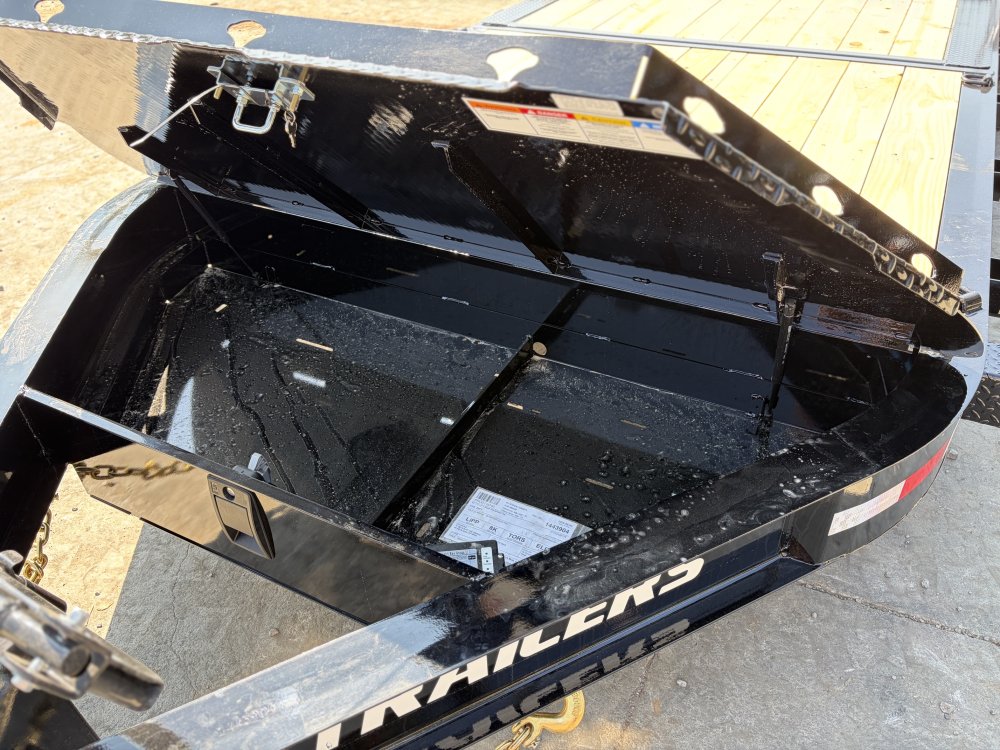

Up front, the massive full-tongue lockable toolbox provides an oversized storage area for chains, binders, straps, tools, and other hauling gear while keeping everything protected and organized.

Key Specs:

• 7' x 22' Equipment Tilt
• 17,500 lb GVWR
• 16' Gravity Tilt Deck
• 6' Stationary Front Deck
• 12° Tilt Angle

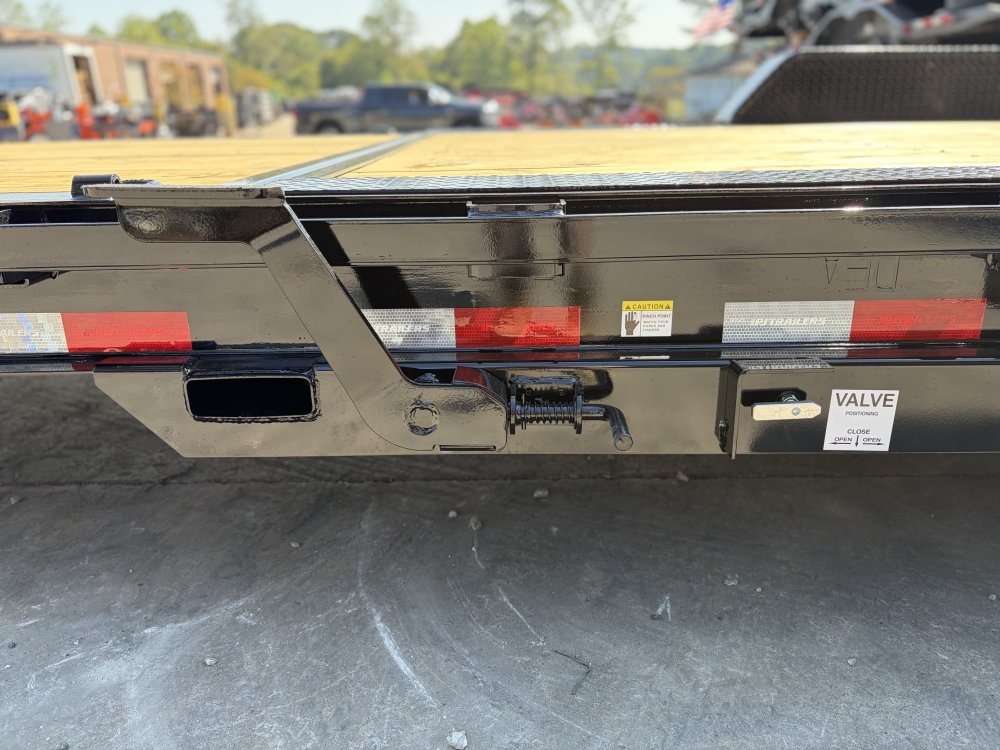

• Hydraulic Dampened Tilt Operation

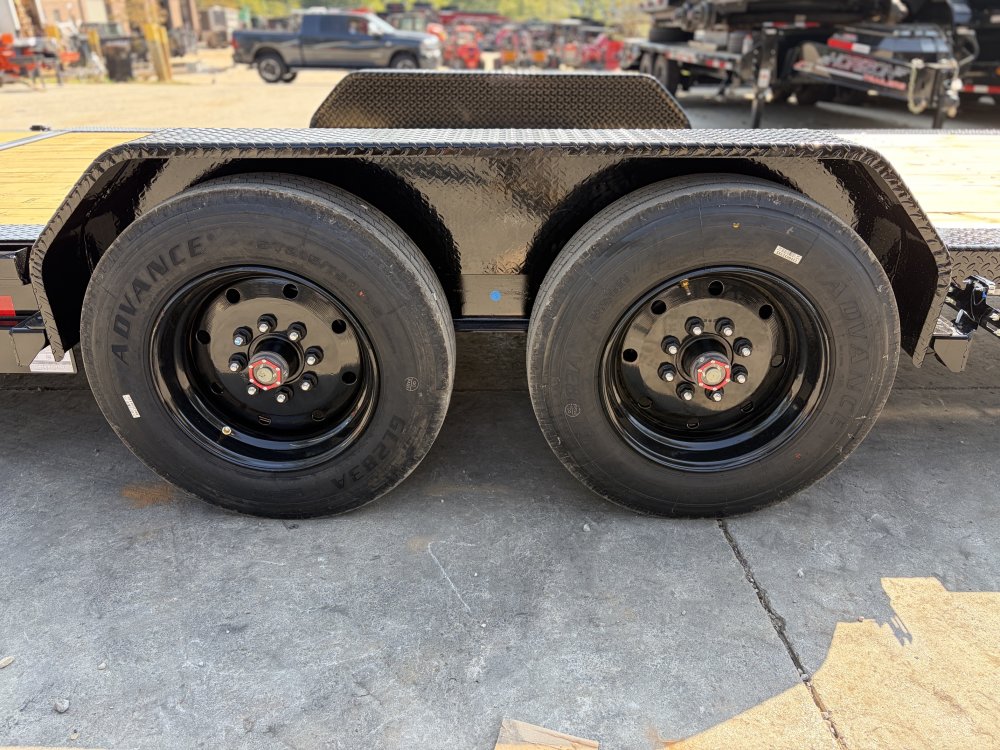

• Dual 8,000 lb Oil-Bath Torsion Axles
• 215/75R17.5 Load Range H / 16-Ply Tires
• 17.5" Heavy-Duty Wheels
• 8" x 10 lb I-Beam Main Frame
• 8" I-Beam Tongue
• 3" Crossmembers on 16" Centers

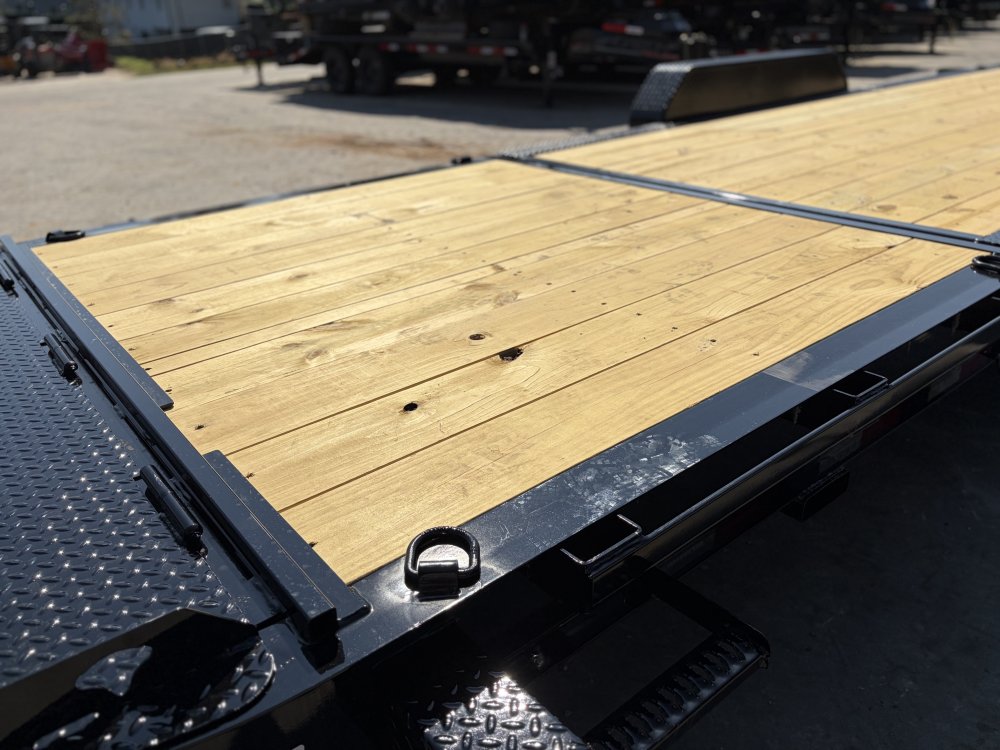

• 2" Treated Pine Deck
• Massive Full-Tongue Lockable Toolbox

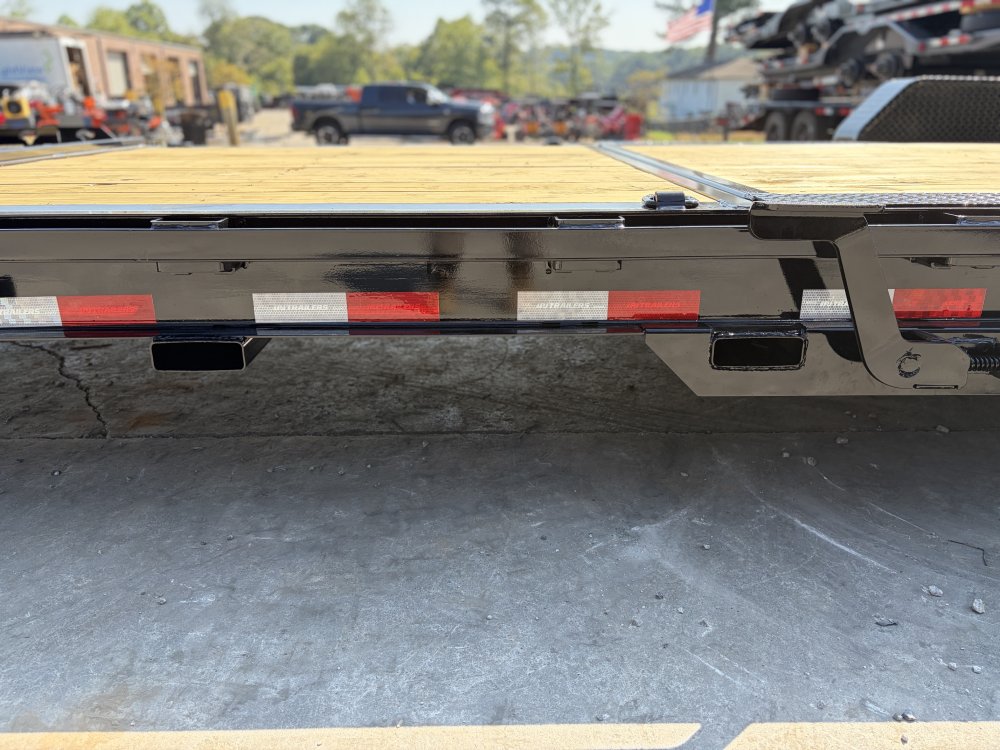

• Integrated Fork Pockets
• 12K Drop-Leg Jack
• Adjustable 2-5/16" Coupler

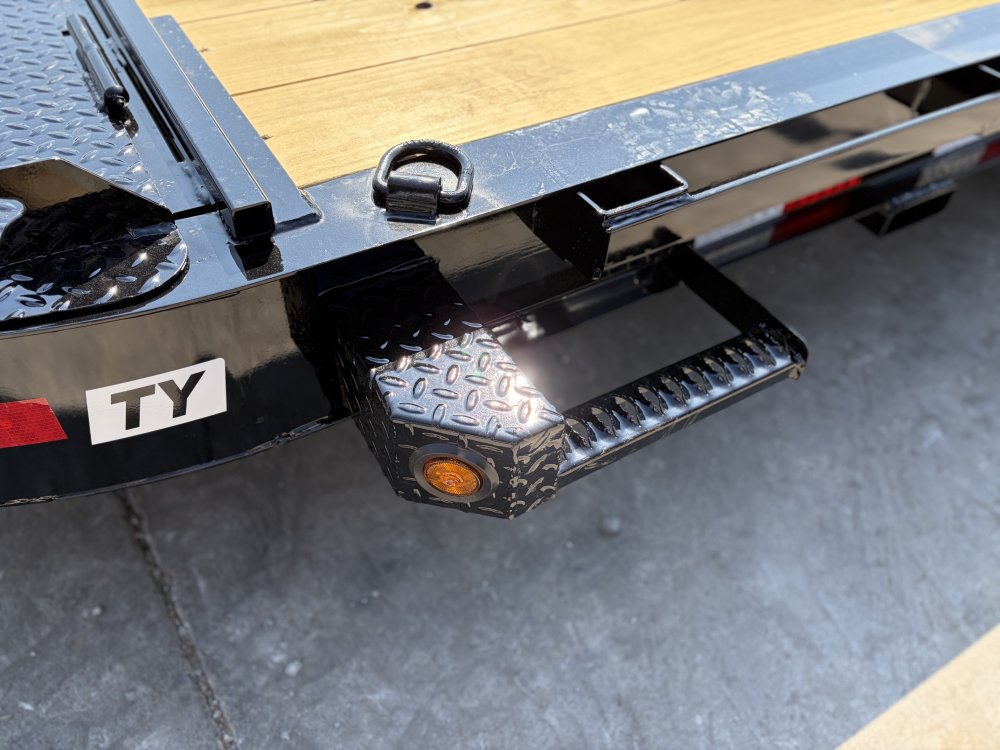

• Six D-Ring Tie-Downs
• Rub Rail, Stake Pockets & Pipe Spools
• LED Lighting
• Powder-Coat Finish
