6'x10' Quality Cargo Fiber Splicing Trailer

Standard Specifications

• 15” Tires
• Silver Mod Wheels
• 32” RV Style Side Door with Flush Lock
• V-Nose with Vertical ATP Trim
• Double Rear Door with Bar Lock or Ramp
• Tandem 3500 lb Spring Axles with 4” Drop & EZ Lube Hubs
• 24” Stoneguard on Front
• White Metal Exterior
• 2” Coupler
• Aluminum Fender with Lights
• 3/4” Plywood Floor (Painted Underneath)
• Premium 3/8” Plywood Sidewalls
• 1” x 1 ½” Steel Tube in Walls and Ceiling
• 75” (6’3”) Interior Height
• 2000 lb Tongue Jack
• 2” x 4” Steel Tube Main Rails
• 12V Dome Light with Switch
• Non-Powered Roof Vent or Sidewall Vent
• LED Strip Tail Lights
• Wall Members 16” O.C.
• Floor Crossmembers 16” O.C.
• Roof Members 24” O.C.
• Screwed Metal Exterior
• Galvalume Roof
• 4-Way Bargman Plug

Structure

• Flat Front
• 9” Extra Height
• 66” Extended Tongue

Tires & Wheels

• Silver Mod Wheels
• Chrome Center Lug Covers
• Sand Foot
• Radial Tires

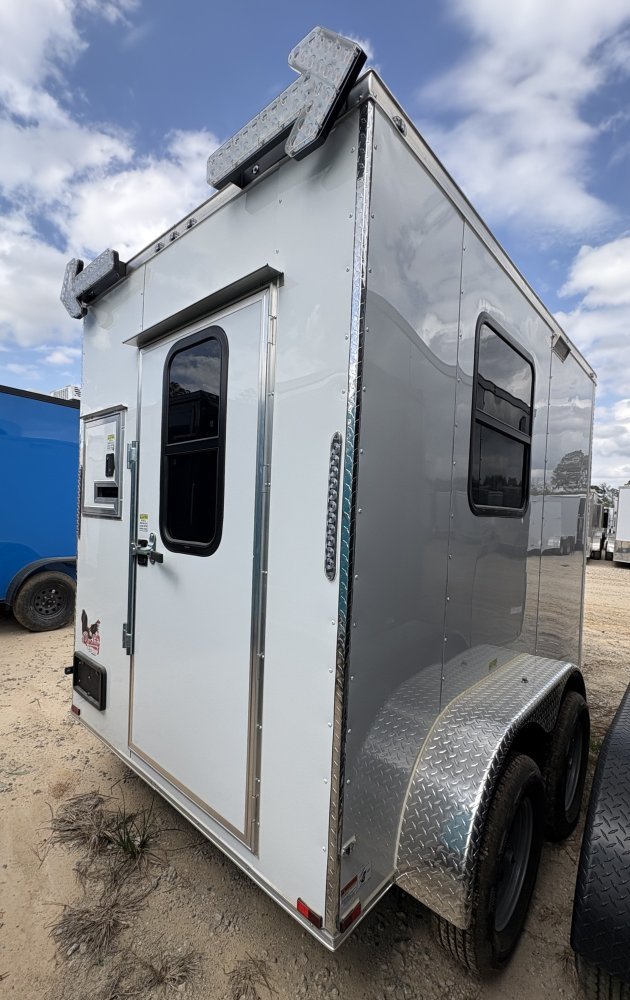

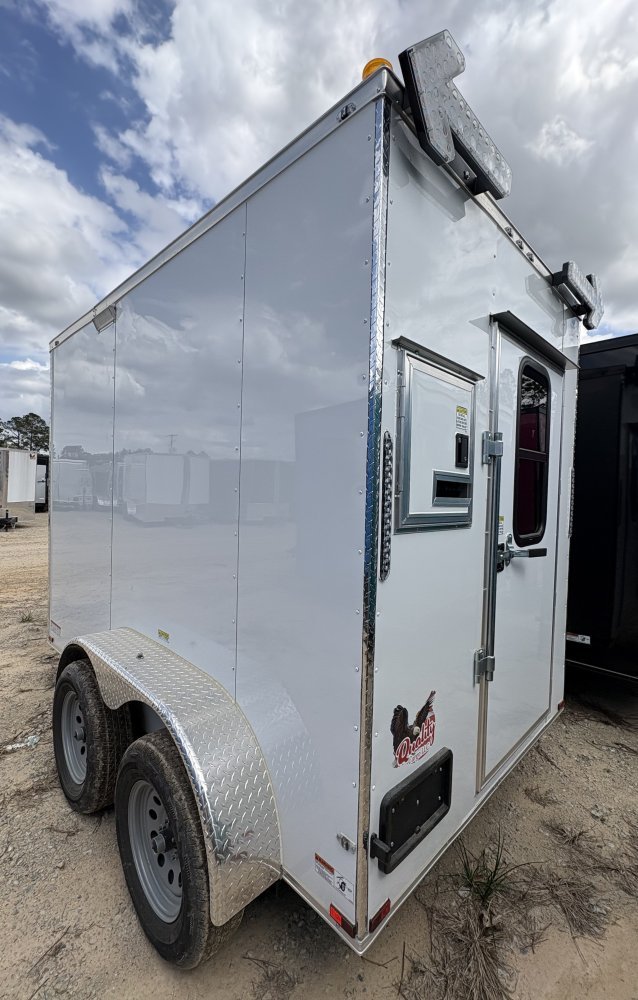

Doors, Ramps & Windows

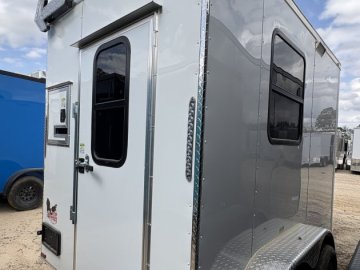

• 32” Door with 15” x 30” Vertical Window
• 16” x 18” Splicing Door with Brush (Rear)
• 30” x 30” Window (Passenger Side, 30” from Rear)

Vents & A/C

• Roof Vent with Maxxair Cover
• 13K BTU A/C

Exterior

• White Exterior
• ATP Fenders

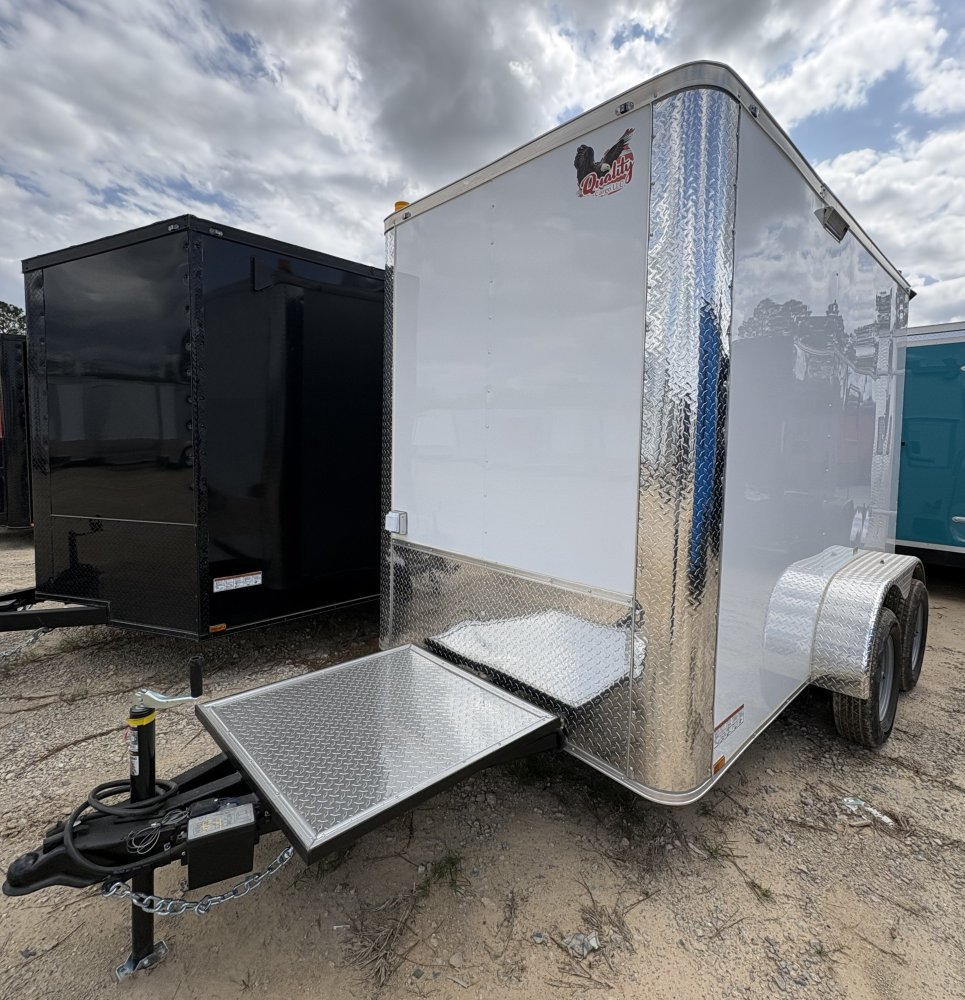

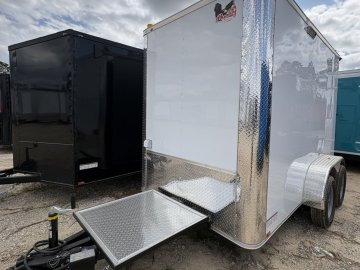

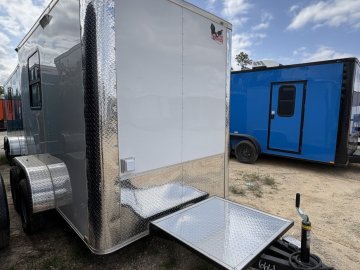

• 36” x 36” ATP Generator Platform (Tongue)

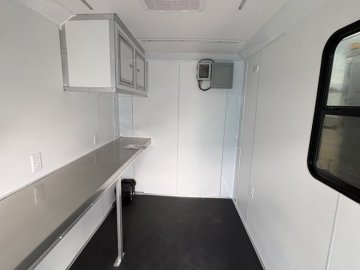

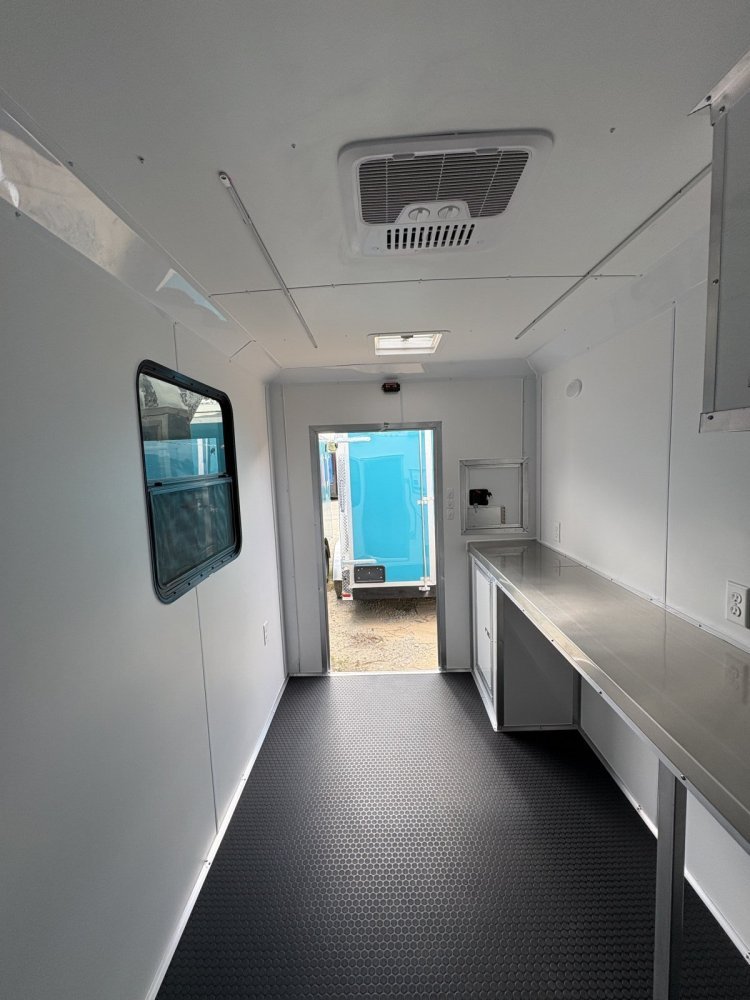

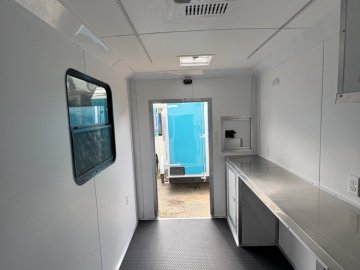

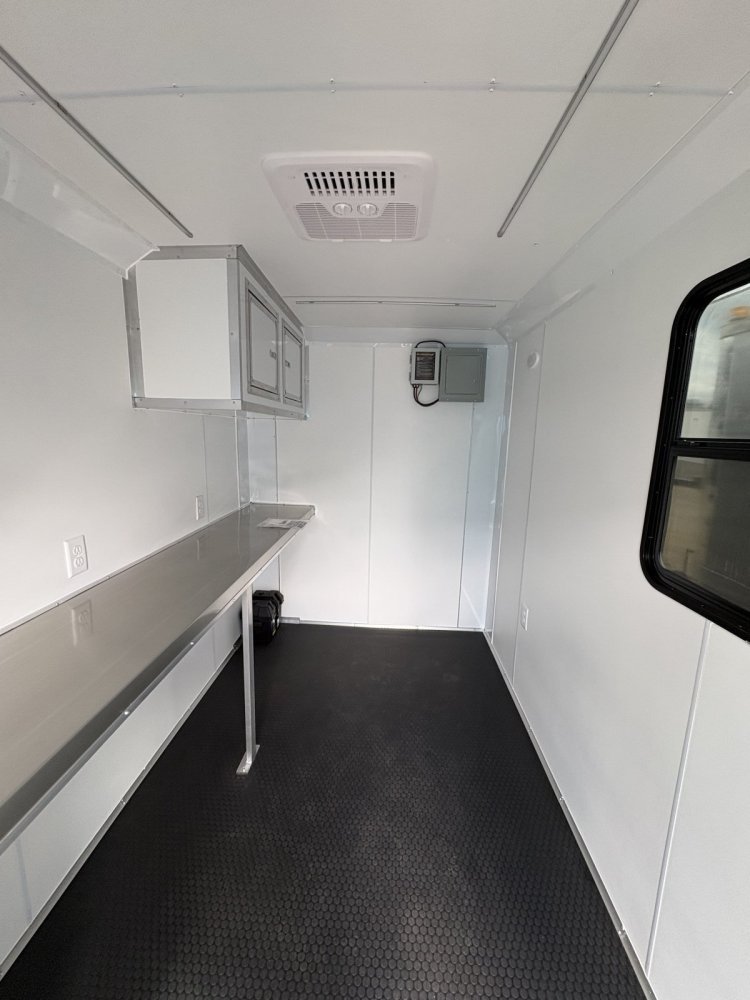

Interior

• Insulated Walls
• Insulated Ceiling
• White Vinyl Walls
• White Vinyl Ceiling
• Rubber Coin Flooring
• 10’ x 18” Mill Finish Countertop (Driver Side, No Lip – Folded Edges)
• 2’ Base Cabinet (Driver Side)
• 4’ Overhead Cabinet (Driver Side)

Electrical

• (2) Dome Lights
• 50 Amp Electrical Package with 50 Amp Motorbase Plug
• (5) Extra Receptacles
  • 3 on Driver Side (39” AFF)
  • 2 on Passenger Side
• (3) 12V 4’ LED Strip Lights
• (2) Amber Roof-Mounted Strobe Lights
• (2) 10” Race Lights
• (2) Arrow Lights (Rear of Trailer)
• 12V Battery with Converter
