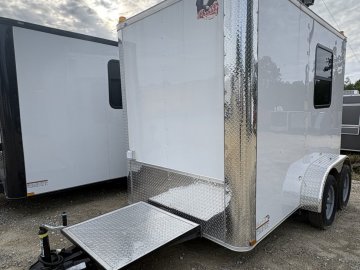

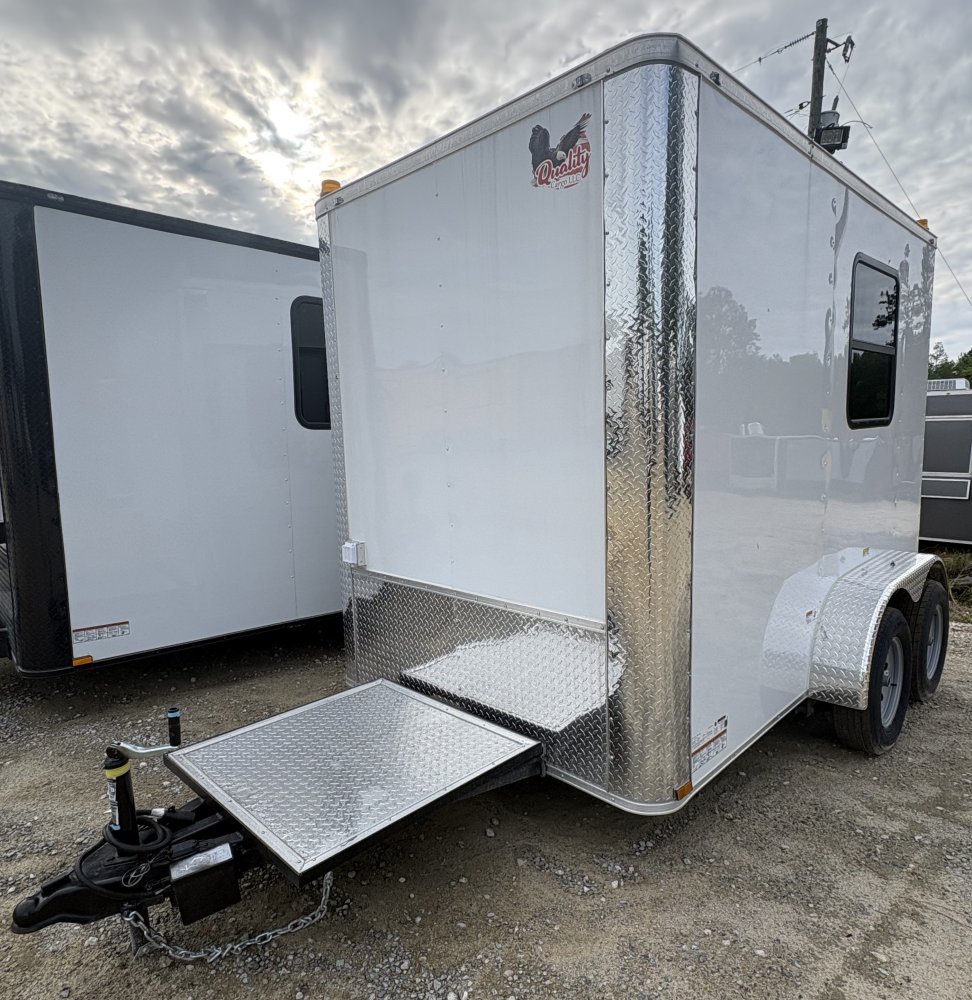

6'x10' Quality Cargo Fiber Splicing Trailer

Standard Specifications

• 15” Tires
• Silver Mod Wheels
• 32” RV Style Side Door with Flush Lock
• V-Nose with Vertical ATP Trim
• Double Rear Door with Bar Lock or Ramp
• Tandem 3500 lb Spring Axles with 4” Drop and EZ Lube Hubs
• 24” Stoneguard on Front
• White Metal Exterior
• 2” Coupler
• Aluminum Fender with Lights
• 3/4” Plywood Floor (Painted Underneath)
• Premium 3/8” Plywood Sidewalls
• 1” x 1½” Steel Tube in Walls and Ceiling
• 75” (6’3”) Interior Height
• 2000 lb Tongue Jack
• 2”x4” Steel Tube Main Rails
• 12V Dome Light with Switch
• Non-Powered Roof Vent or Sidewall Vent
• LED Strip Tail Lights
• Wall Members 16” O.C.
• Floor Crossmembers 16” O.C.
• Roof Members 24” O.C.
• Screwed Metal Exterior
• Galvalume Roof
• 4-Way Bargman Plug

Structure

• Flat Front
• 9” Extra Height
• 66” Tongue-to-Tip (TTT)

Tires & Wheels

• Silver Mod Wheels
• Chrome Center Lug Covers
• Sand Foot

Doors, Ramps, & Windows

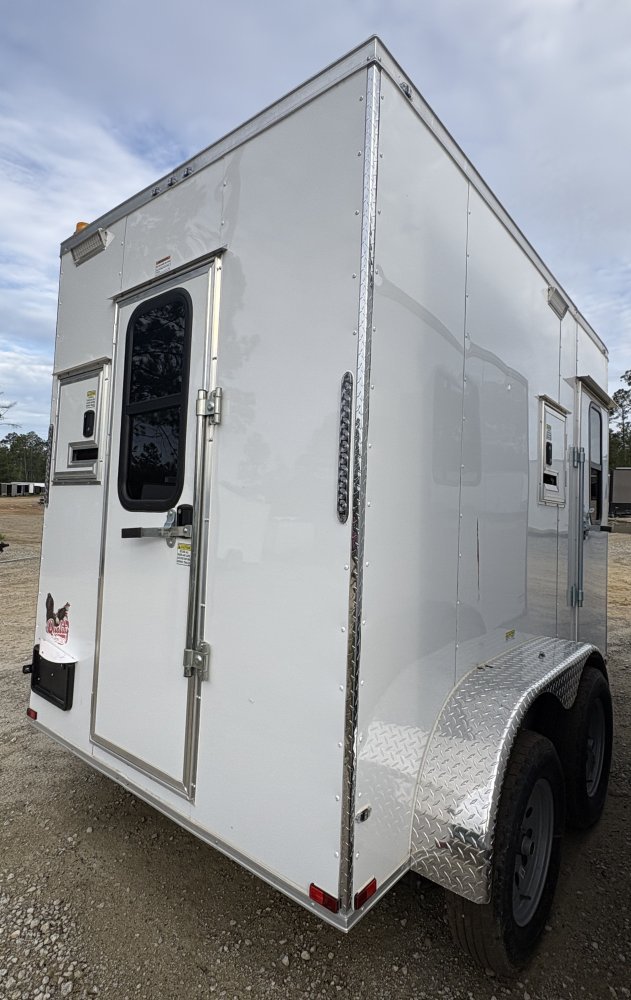

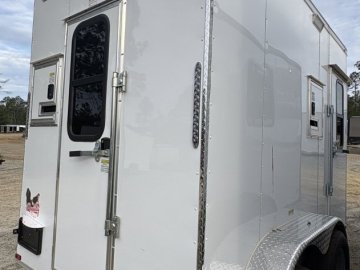

• 32” RV Doors with 15”x30” Windows and Bar Locks
• 16”x18” Splicing Doors with Brushes

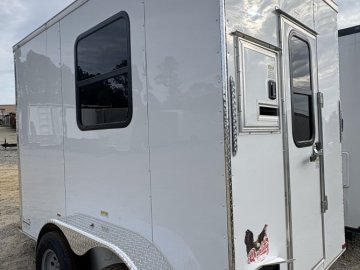

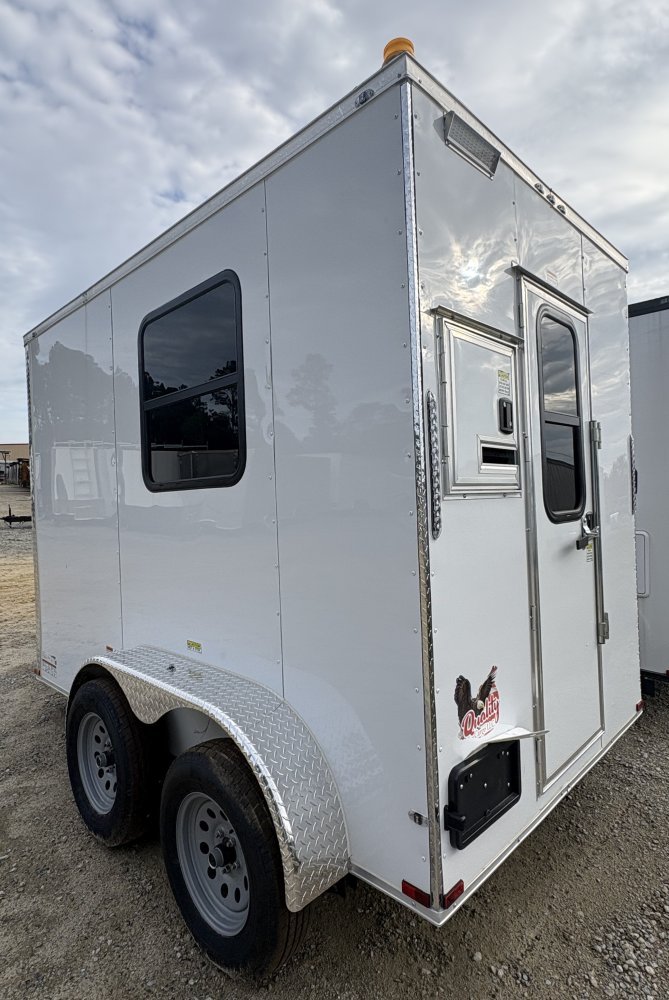

• 30”x30” Window on Driver Side — 30” from Rear

Vents & A/C

• Roof Vent with Maxxair Vent Cover
• 13.5K BTU A/C

Exterior

• .080 White Exterior
• ATP Fenders
• One-Piece Aluminum Roof

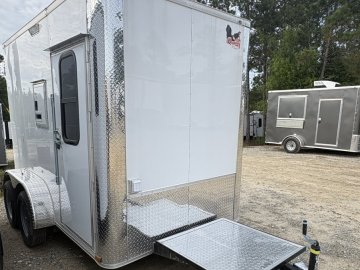

• 36”x36” ATP Generator Platform on Tongue

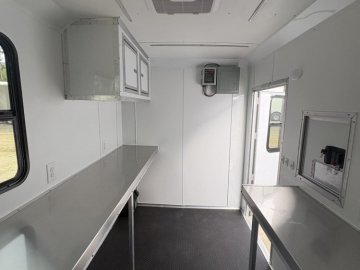

Interior

• Insulated Walls
• Insulated Ceiling
• White Vinyl Walls
• White Vinyl Ceiling
• Rubber Coin Flooring

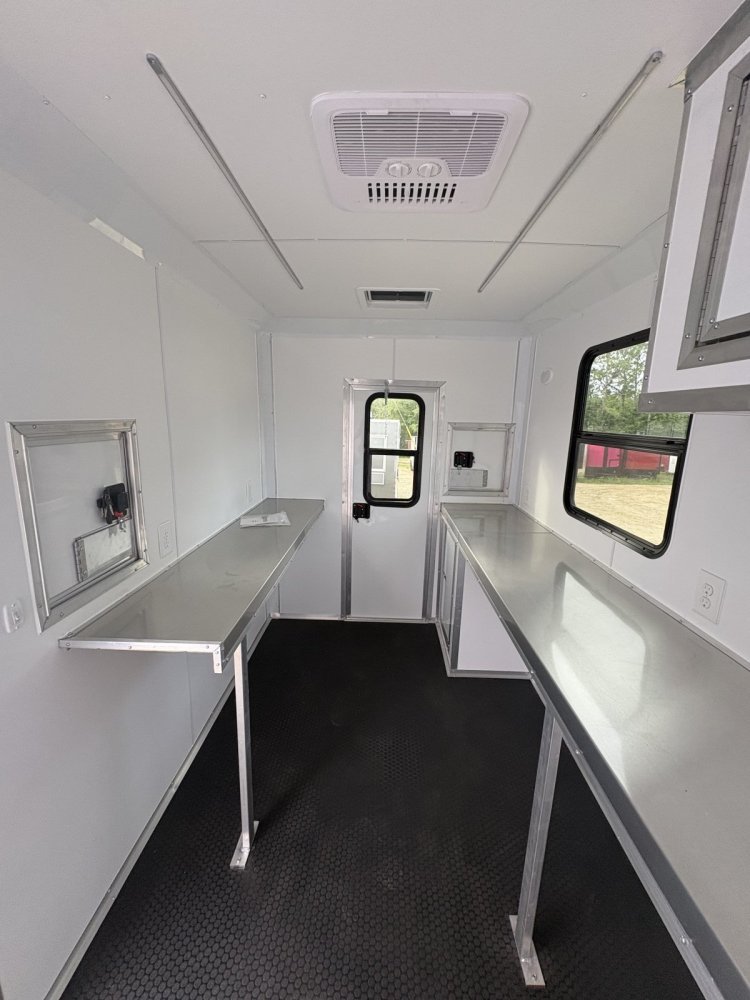

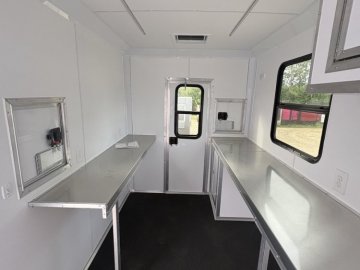

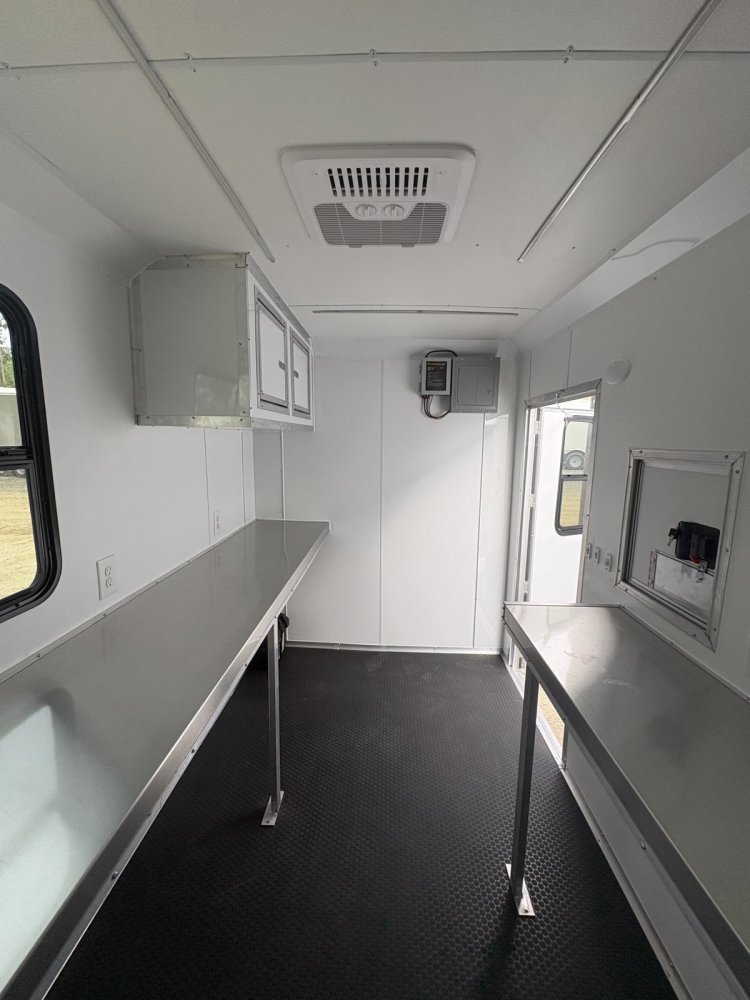

• 10’x18” Mill Finish Countertop (No Lip on Edges — Folded Aluminum Over Edges) on Driver Side
• 6’x16” Mill Finish Countertop (No Lip on Edges — Folded Aluminum Over Edges) on Passenger Side
• 2’ Base Cabinet on Driver Side
• 4’ Overhead Cabinet on Driver Side

Electrical

• (2) Dome Lights
• 50 Amp Electrical Package with 50 Amp Motorbase Plug
• 5 Extra Receptacles
– 3 on Driver Side
– 2 on Passenger Side
– All at 39” AFF
• 3 Total 12V 4’ LED Strip Lights
• 2 Amber Roof-Mount Strobe Lights
• 2 × 10” Race Lights (1 Above Each Splicing Door)
• Battery with Converter
