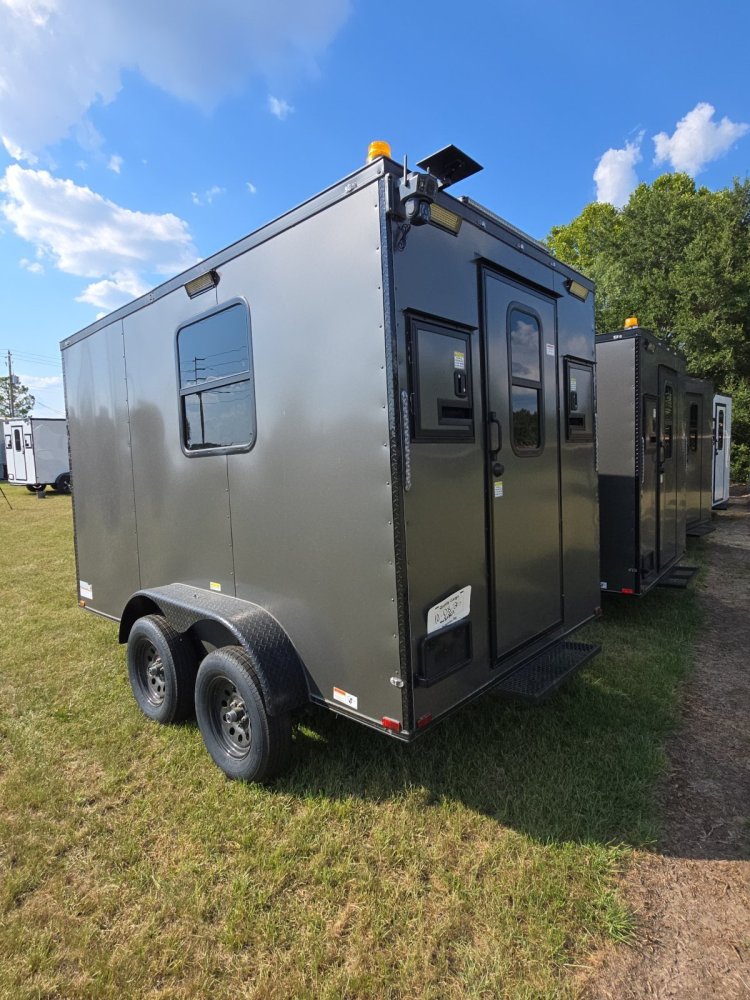

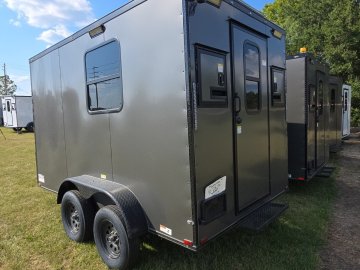

7'x12' Quality Cargo Fiber Optic Splicing Trailer Fiber Splicing Trailer

Standard Specifications

Exterior & Frame

• White Metal Exterior

• V-Nose with Vertical ATP Trim

• Double Rear Doors with Bar Lock or Ramp

• 32” RV-Style Side Door with Flush Lock

• 24” Front Stoneguard

• 2” Coupler

• Aluminum Fenders with Lights

• Screwed Metal Exterior

• Galvalume Roof

• 4-Way Bargman Plug

• 2” x 4” Steel Tube Main Rails

Structure & Build Base Structure

• Tandem 3,500-lb Spring Axles with 4” Drop and EZ-Lube Hubs

• 75” (6’3”) Interior Height

• 3/4” Plywood Floor (Painted Underneath)

• Premium 3/8” Plywood Sidewalls

• 1” x 1½” Steel Tubing in Walls and Ceiling

• Wall Members 16” O.C.

• Floor Crossmembers 16” O.C.

• Roof Members 24” O.C.

• 2,000-lb Tongue Jack

Structure Upgrades

• 9” Extra Height

• 66” Extended Triple-Tube Tongue

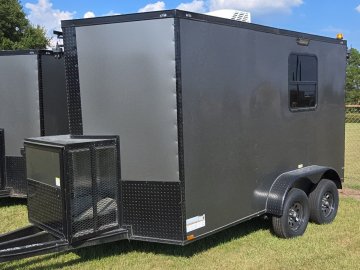

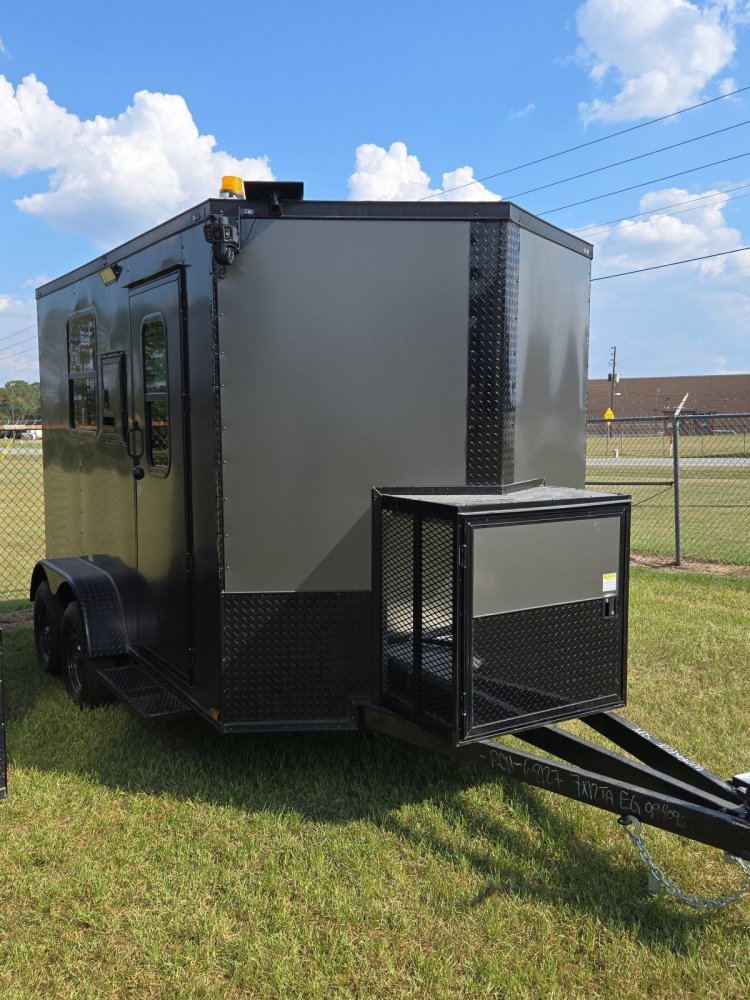

• 36” x 36” x 36” Generator Box with Slide-Out (Half In / Half Out)

• Two 32” x 9” Step Decks Welded Under Each RV Door

• Blackout Package (Interior & Exterior)

Exterior Finish

• Tan Polycore Exterior

• Reflective Tape on Rear Panels

• ATP Fender

• Sand Foot

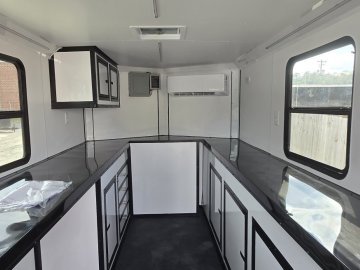

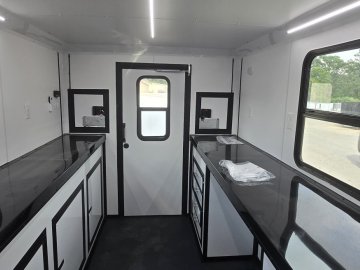

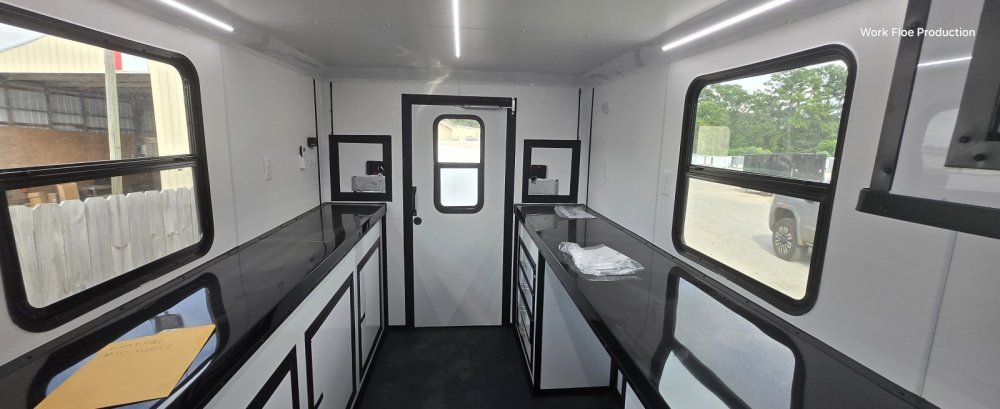

Interior Features – General Interior

• Cool Shield Bubble R-Foil Insulation (Walls & Ceiling)

• White Vinyl Walls and Ceiling

• Rubber Coin Flooring

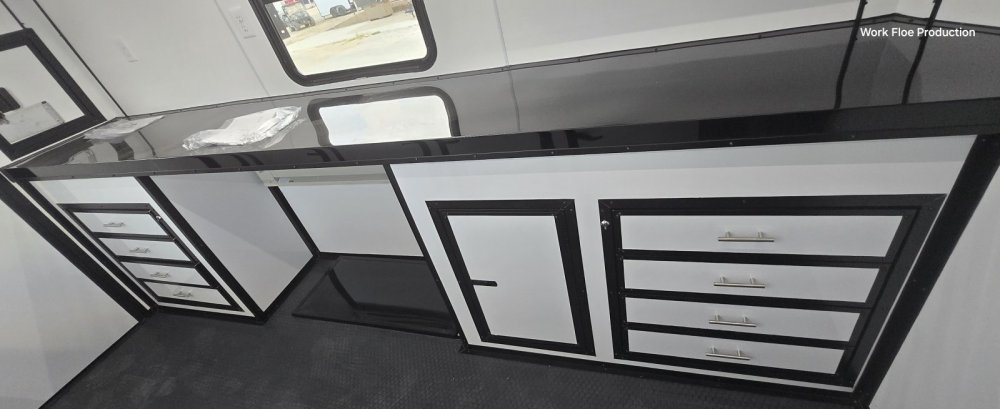

Driver Side

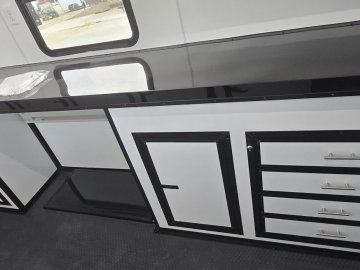

• 10’ x 22” x 42” AFF Mill-Finish Countertop (No Lip, Folded Aluminum Edge)

• One 24” Wide Base Cabinet Under Countertop (Next to Drawers)

• Four Locking Drawers Under Front of Countertop

• Four Locking Drawers Under Rear of Countertop

• One 4’ Overhead Cabinet with Two Doors

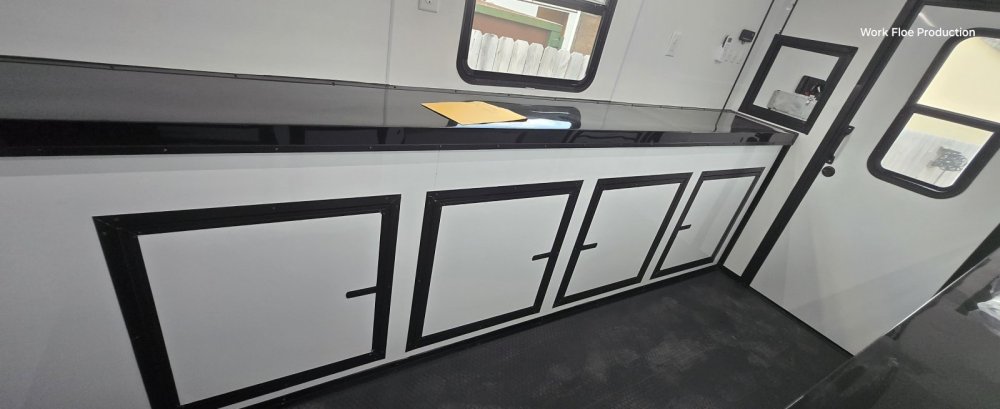

Passenger Side

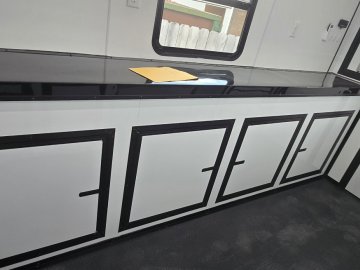

• 6’ x 18” x 42” Stationary Mill-Finish Countertop (No Lip, Folded Aluminum Edge)

• Matching Base Cabinets Under Countertop

• Removable T-Top Between Countertops (May Require Bracket)

Doors, Ramps & Windows

• Two 32” x 75” Side Doors with Deadbolts and 15” x 30” Windows

  • One Center Rear Door

  • One Passenger-Side Door, RH Swing with Insert Flap

• RV Handles and Automatic Door Closers (Dealer Provided)

• Three 16” x 18” Splicing Doors (Rear Driver Side)

• Two 30” x 30” Windows

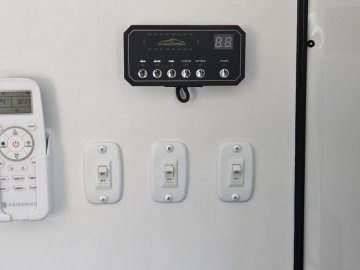

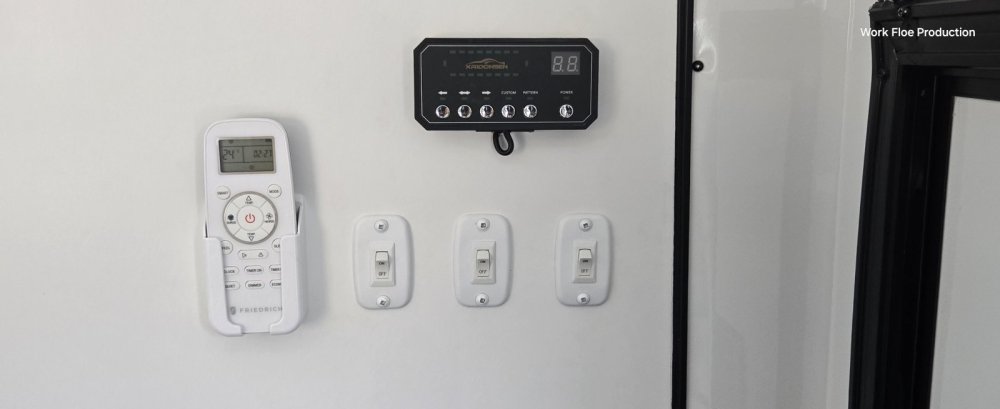

Electrical System

• 50A Electrical Package

• 50A Motorbase Plug

• Battery with Converter/Charger

• Traffic Advisor Light Bar (Mounted Above Rear RV Door)

• Five Interior Receptacles

• Two Dome Lights

• Four 10” Exterior LED Flood Lights

• Two Roof-Mounted Strobe Lights

• Four 12V Interior LED Strip Lights

Vents & A/C

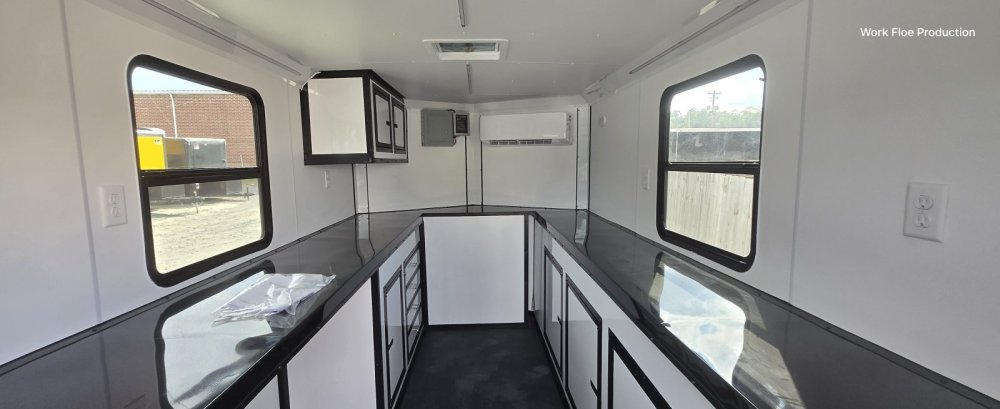

• 12,000 BTU Mini-Split A/C Unit with Heat Strip

Wheels & Tires

• Westlake ST235/75R/15 Tires

• Chrome Center Lug Covers

• Mud Legend All-Terrain Tire Upgrade
