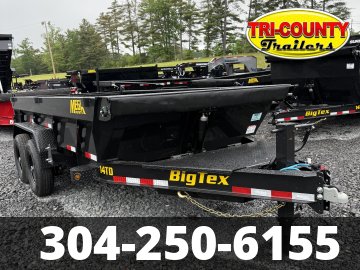

7'x14' Big Tex Dump

$11,500

Black - Dump

Trailer Specs

Stock Number: 488525

VIN/Serial Number: 16V1D192XV7488525

Condition: New

Year: 2027

Model: 14TD 83X14 15.4K HD TELESCOPIC DUMP

Weight (lbs): 4,036 lbs

Length: 14'

Width: 7'

GVWR (lbs): 15,400

View On Dealer Site

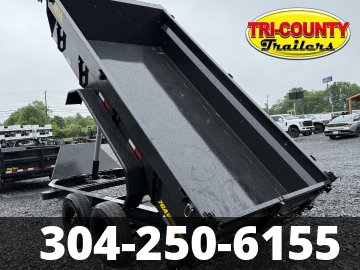

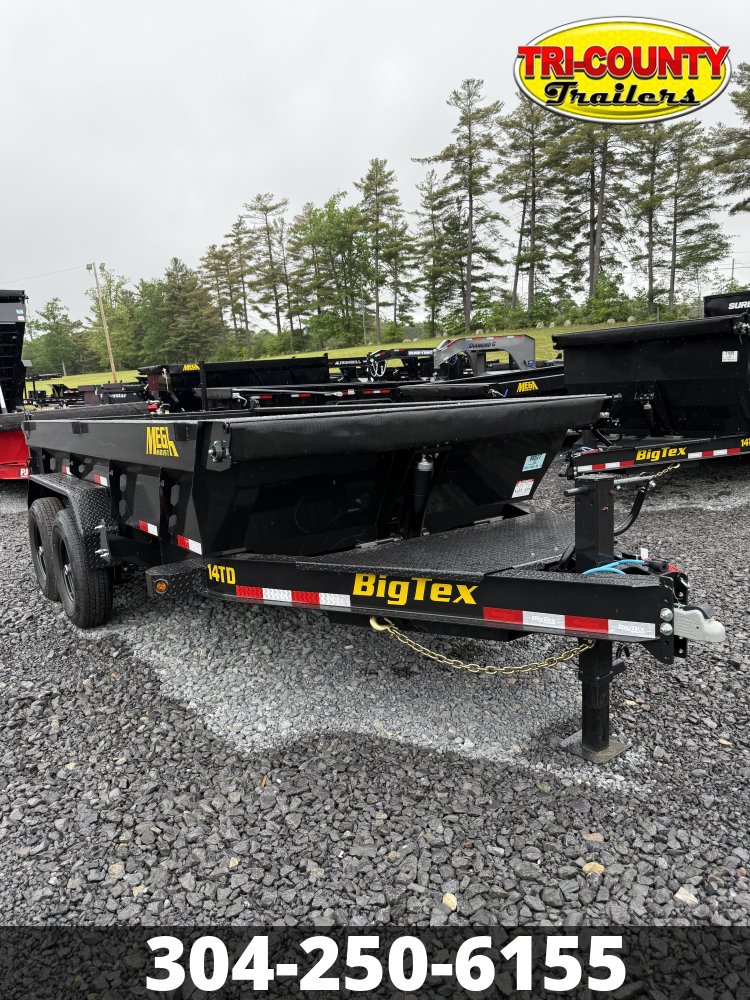

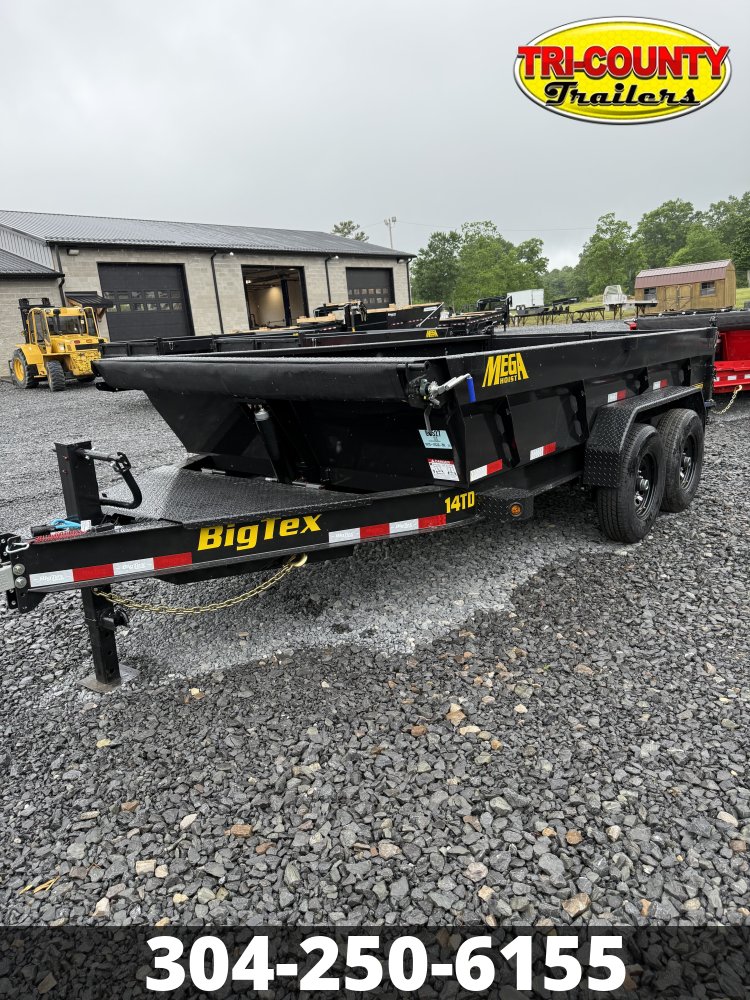

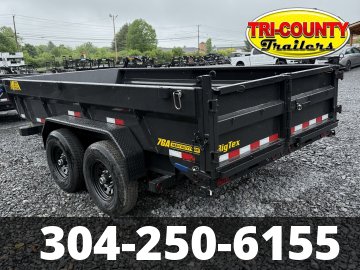

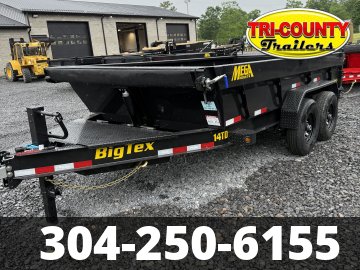

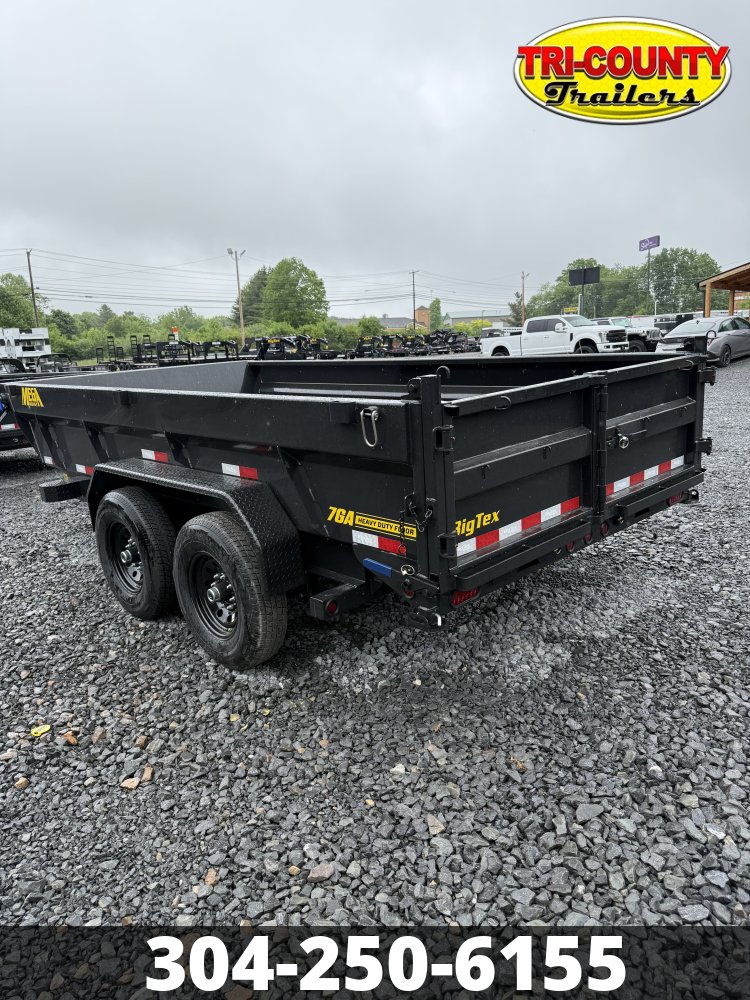

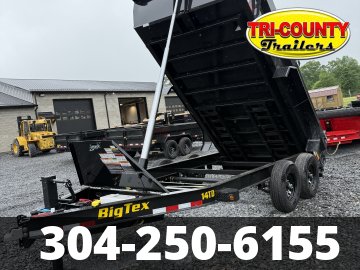

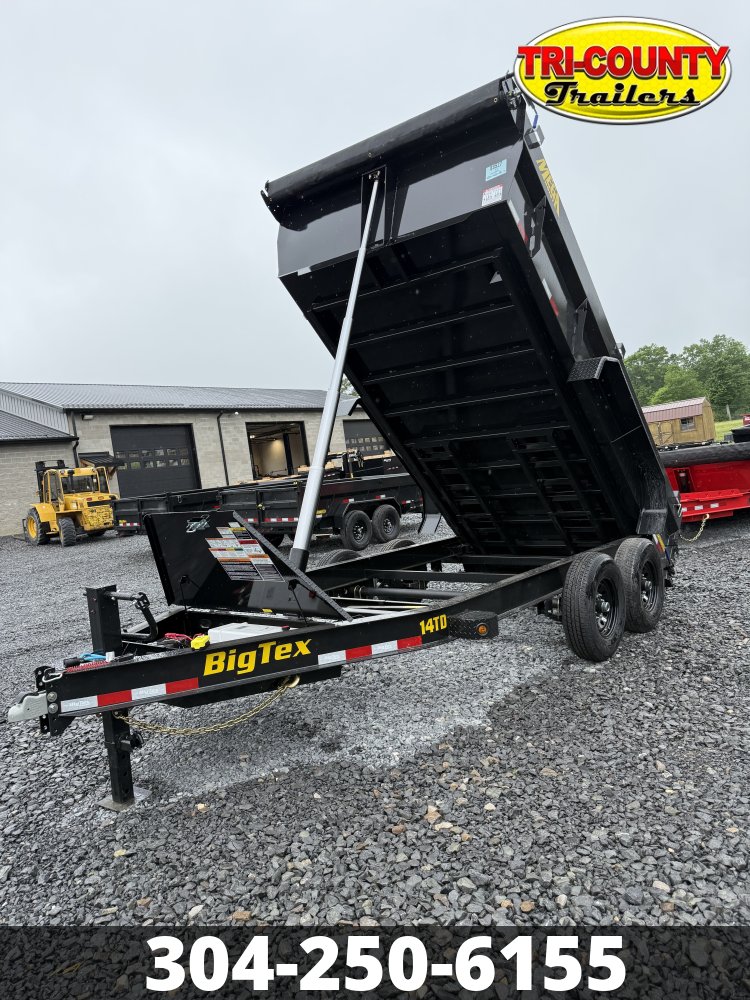

Big Tex 14TD 83X14 15.4K HD TELESCOPIC DUMP is engineered for serious work. This heavy-duty telescopic dump trailer features a 5-stage front-mount telescopic cylinder for smooth, reliable lifting power, enhanced service access, a steep 45° dump angle, reinforced side rails, a Demco EZ-Latch, and a full-width toolbox. With available 4' sides, it can haul up to 16.3 cubic yards.

Standard Features and Available Options:

Axles: 2 - 7,000# premium cambered axles with quick-lubricating hubs; drop axles lower deck height to 24" from ground.
Brakes: Forward self-adjusting electric brakes on both axles.
Suspension: Multi-leaf slipper spring with equalizer.
Tongue: 8" seamless I-beam tongue.
Coupler: 2-5/16" ball adjustable Demco EZ-Latch coupler; adjustable pintle in channel available in lieu of coupler.
Safety Chains: 3/8" Grade 70 with safety latch hook (2 each).
Jack: 12,000# drop-leg side-wind jack; 12,000# electric/hydraulic jack by Stillwell?? available.
Frame: 8" seamless I-beam (13#).
Cross-Members: 3" channel on 16" centers.
Floor: 7 gauge smooth steel.
Fenders: 9" x 72" 14 Ga. diamond plate double broke.
Ramps: Not included; 6.5' slide-in ramp package available.
Stake Pockets: Along both sides; quantity varies by length.
Trailer Plug: 7-way RV.
Lights: Recessed grommet-mounted L.E.D. lighting.
Wiring: Sealed modular cold-weather wiring harness.
Tires: ST235/80 R-16 Load Range E radial tires; Load Range G upgrade available.
Bolt Pattern: 8-lug.
Wheels: Black mod steel.
Spare Mount: Side spare tire mount.
Spare Tire: Not included; ST235/80 R-16 LR-E spare tire and wheel available, with LR-G upgrade available.
Paint: Professional finish with primer standard. Paint color: Black.
Tie-Downs: (4) 1/2" D-rings inside bed to secure equipment.
Break-Away Kit: Complete breakaway system with zip breakaway cable.
Battery: 12V deep cycle.
Charger: 5A 110V on-board battery charger.
Gate: Rear combo gate with barn doors and spreader gate.
J-Hooks: Along sides and rear for cargo control.
Power: Power up/gravity down movement; 5-watt solar charger and wireless remote.
Ram: 5-stage telescopic cylinder.
Sides: 24" tall (10 Ga.) with formed channel supports; 4' solid sheet metal sides available.
Stabilizers: Rear stabilizer stands.
Steps: Convenient side-step to access top rail.
Storage: Full tongue toolbox with locking lid.
Tarp: Fully formed tarp shroud with tarp and rear tarp rod holders.
Top Rail: 3" x 2" rectangular tubing.
X-Series Package: Solar charger, swing-arm tarp, hydraulic jack, and 14-ply tires.

Built tough for long-lasting performance, the redesigned Big Tex 14TD 83X14 15.4K HD TELESCOPIC DUMP is ready for demanding hauling and unloading applications.
