7'x14' Quality Cargo Pet Grooming

Standard Specifications

• 15” Tires
• Silver Mod Wheels (see wheel upgrade below)
• 32” RV Style Side Door with Flush Lock
• V-Nose with Vertical ATP Trim (see structure override)

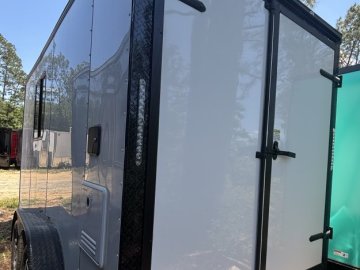

• Double Rear Doors with Bar Lock or Rear Ramp (see door config below)
• Tandem 3500 lb Spring Axles with 4” Drop & EZ Lube Hubs
• 24” Stoneguard on Front
• White Metal Exterior
• 2” Coupler
• Aluminum Fenders with Lights
• 3/4” Plywood Floor (Painted Underneath)
• Premium 3/8” Plywood Sidewalls
• 1” x 1½” Steel Tube in Walls and Ceiling
• 75” (6’3”) Interior Height
• 2000 lb Tongue Jack (see upgrade below)
• 2” x 4” Steel Tube Main Rails
• 12V Dome Light with Switch
• Non-Powered Roof Vent or Sidewall Vent (see upgrade below)
• LED Strip Tail Lights
• Wall Members 16” O.C.
• Floor Crossmembers 16” O.C.
• Roof Members 24” O.C.
• Screwed Metal Exterior
• Galvalume Roof
• 7-Way Bargman Plug

Structure

• Flat Front with Radius Rounded Corners & Header (overrides V-nose)
• 60” Tongue-to-Tail (TTT)
• 9” Extra Height

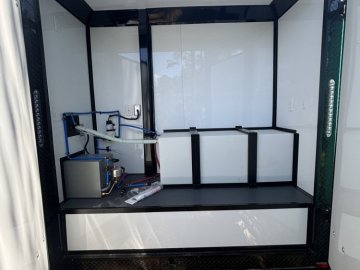

• 2” x 6” Frame for Tanks

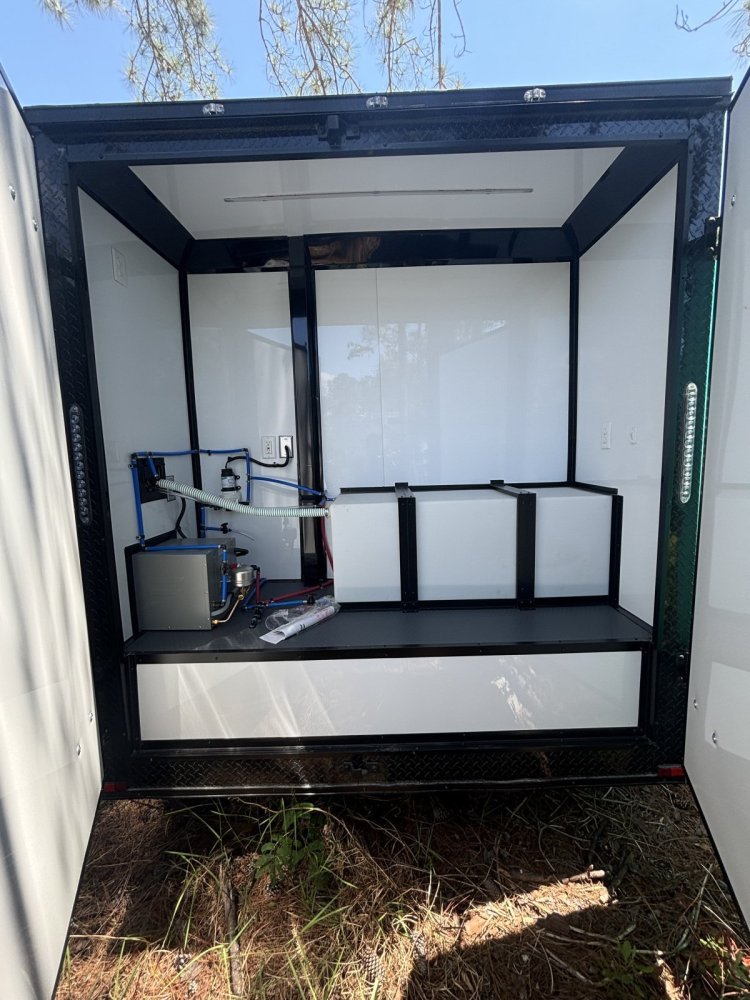

• Partition Wall — 34” from Rear

Tie-Downs & Stabilizers

• 3,000 lb Electric Tongue Jack (upgrade from manual)

Tires & Wheels

• Mag Wheels (upgrade from silver mod)
• Chrome Center Lug Covers
• Sand Foot
• Radial Tires

Doors, Ramps & Windows

• 32” RV Side Door — 30” from Front

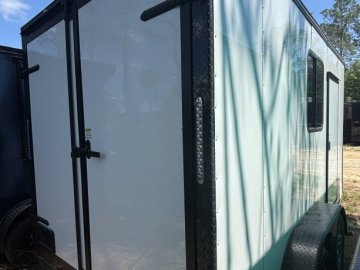

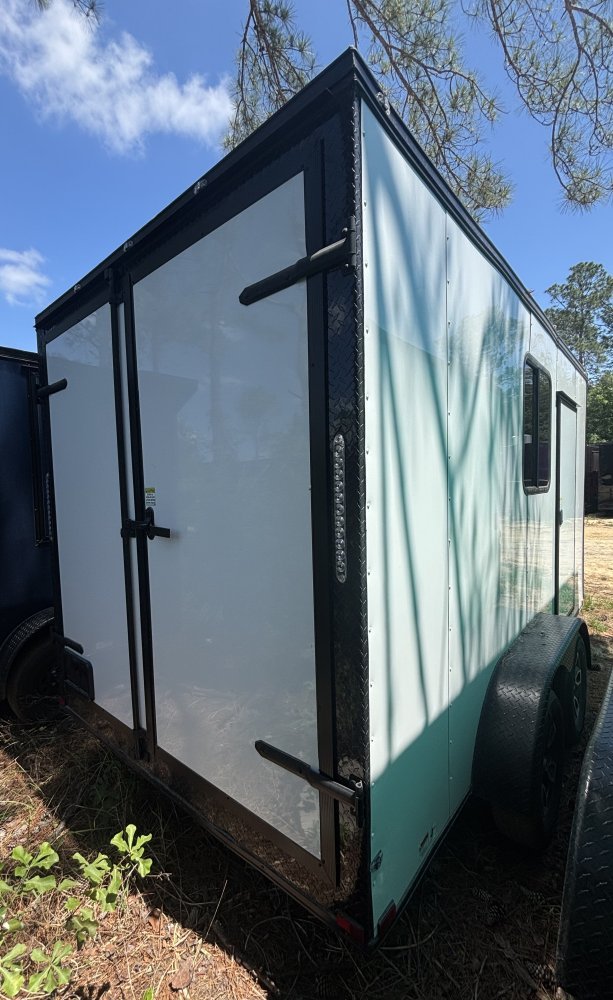

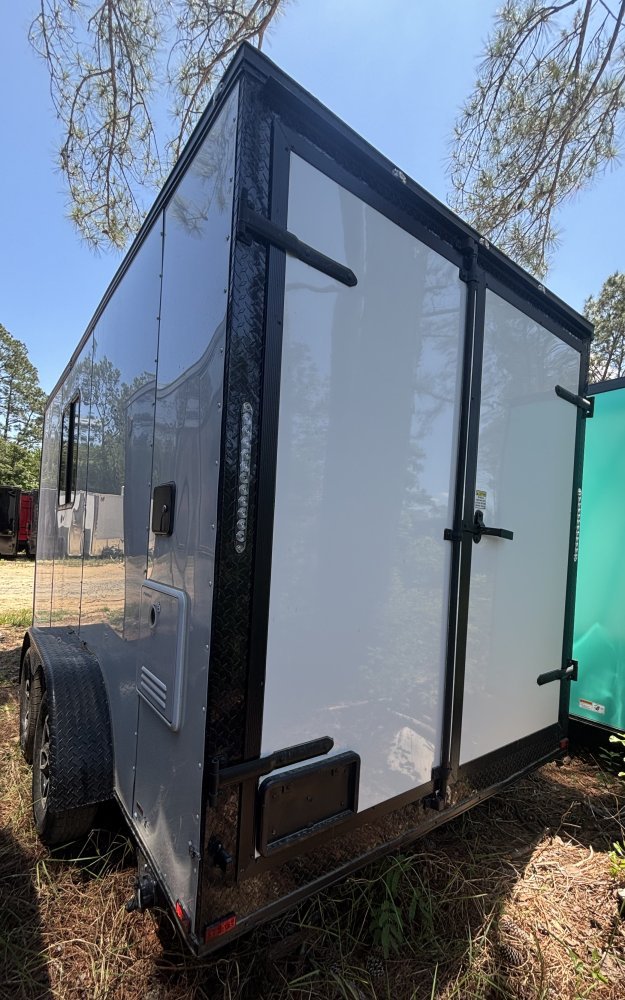

• Rear Barn Doors (confirmed — no ramp selected)
• (2) 30” x 30” Windows — One on Each Side

Vents & A/C

• 15,000 BTU A/C with Heat & Thermostat
• Powered Roof Vent — Over Tub

Exterior

• White Exterior
• Blackout Package

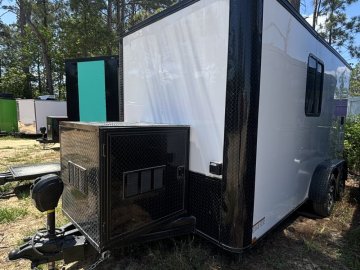

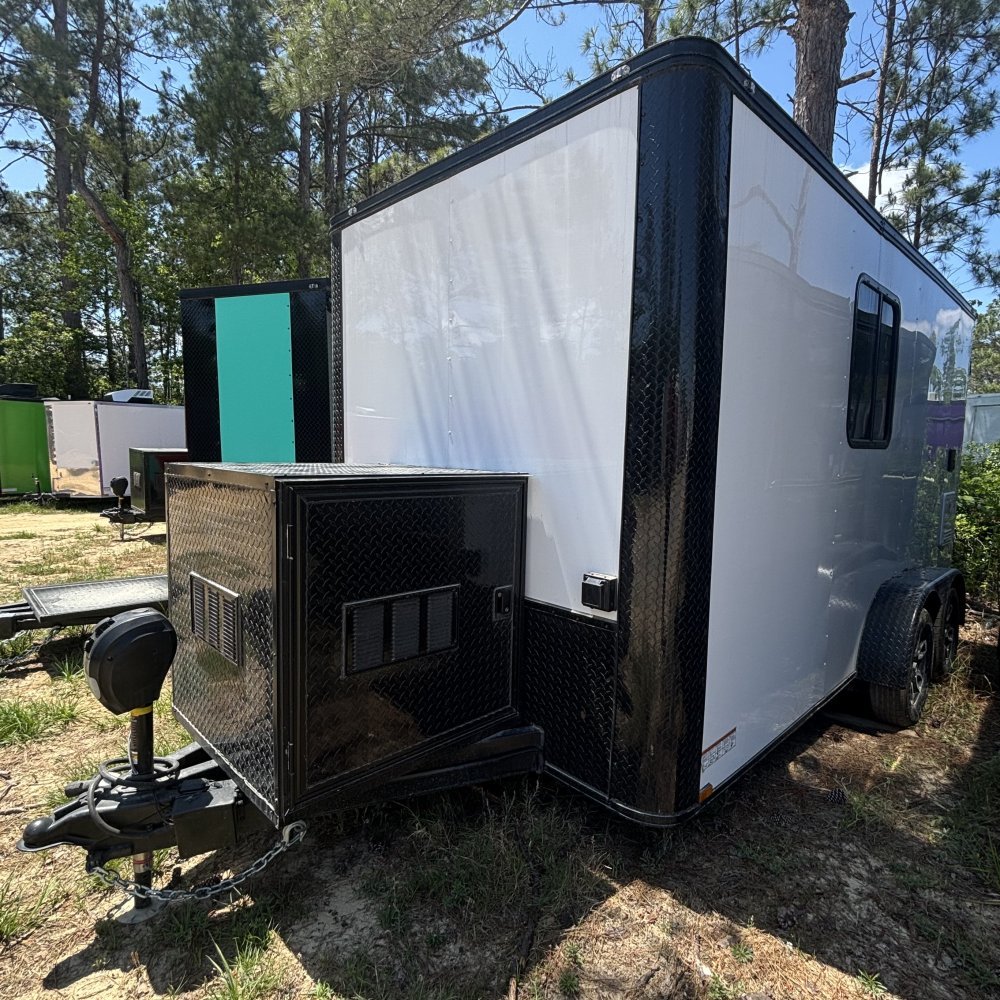

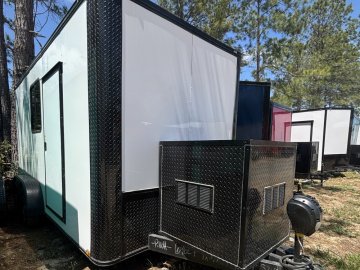

• Generator Box with Heavy-Duty Slide-Out Tray & (4) Vents

Interior

• Cool Seal
• Plywood Trim
• All Black Interior Trim
• Floral Metal — Front Wall
• White Metal Walls (Remaining Walls)
• White Metal Ceiling
• Grey Marble Flooring

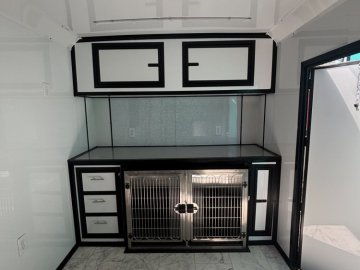

• 18” x 24” Full Closet by Tub with (4) Shelves

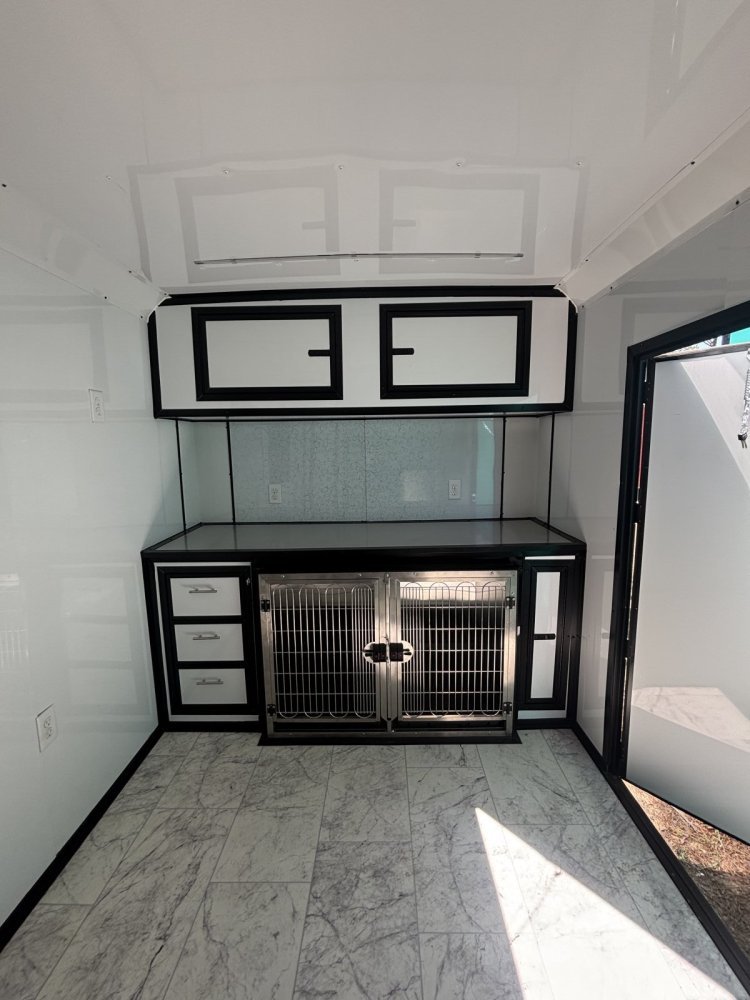

• Upper Cabinet — Flat Front
• Base Cabinet (Front) with Counter
  • 46”W x 27.5”D x 32”H
  • Dog Kennel Underneath
  • (3) Drawers

Plumbing

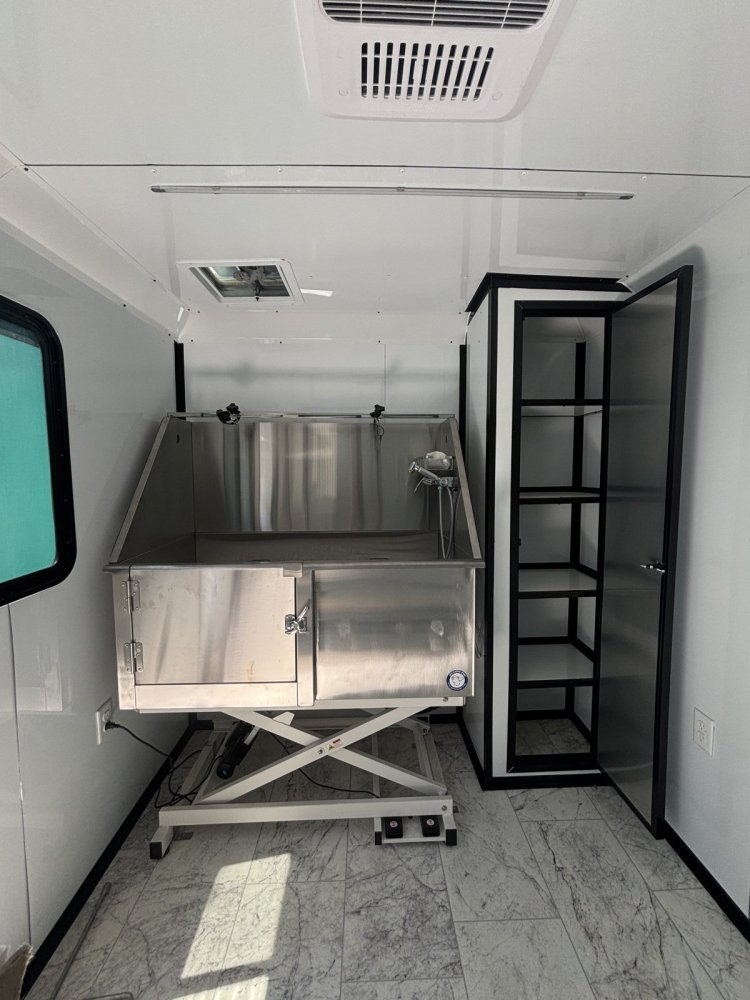

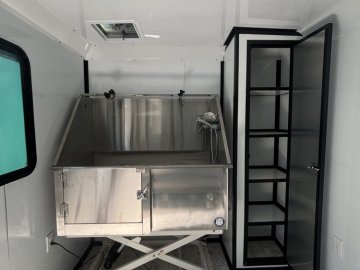

• Water Package with Dog Station (Electric Flying Pig Tub)
• 60 Gallon Fresh Water Tank
• 80 Gallon Waste Tank
• On-Demand Water Heater

Electrical

• All LED Exterior Lights
• 100 Amp Electrical Package with 50 Amp Motorbase Plug
• (8) Total Receptacles
  • (2) Between Upper & Lower Cabinets
  • (2) for Dryer & Table
  • (4) Standard Placement
• (3) 12V LED Lights
• 12V Battery with Converter
