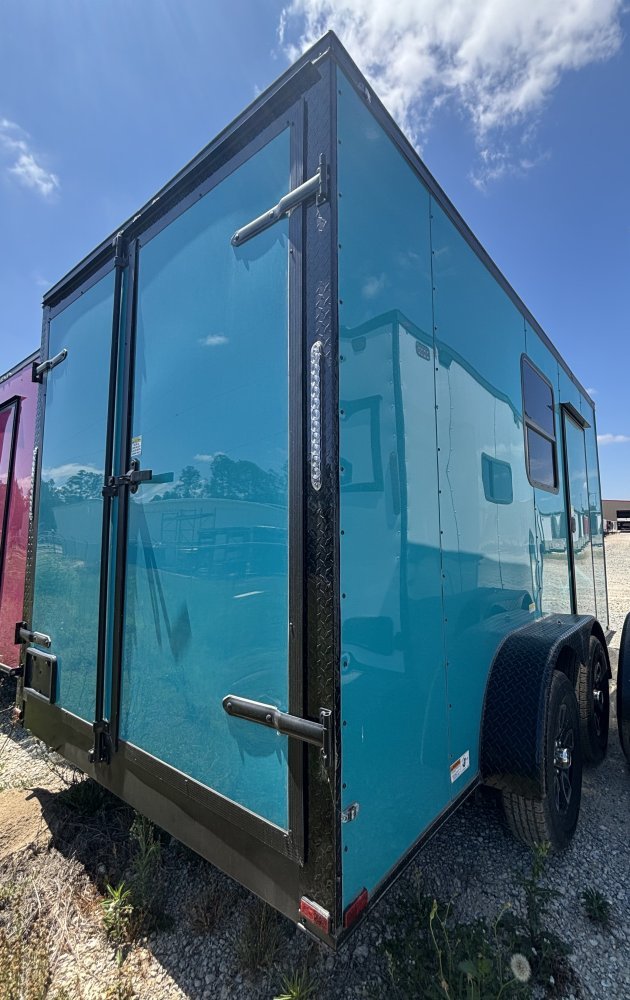

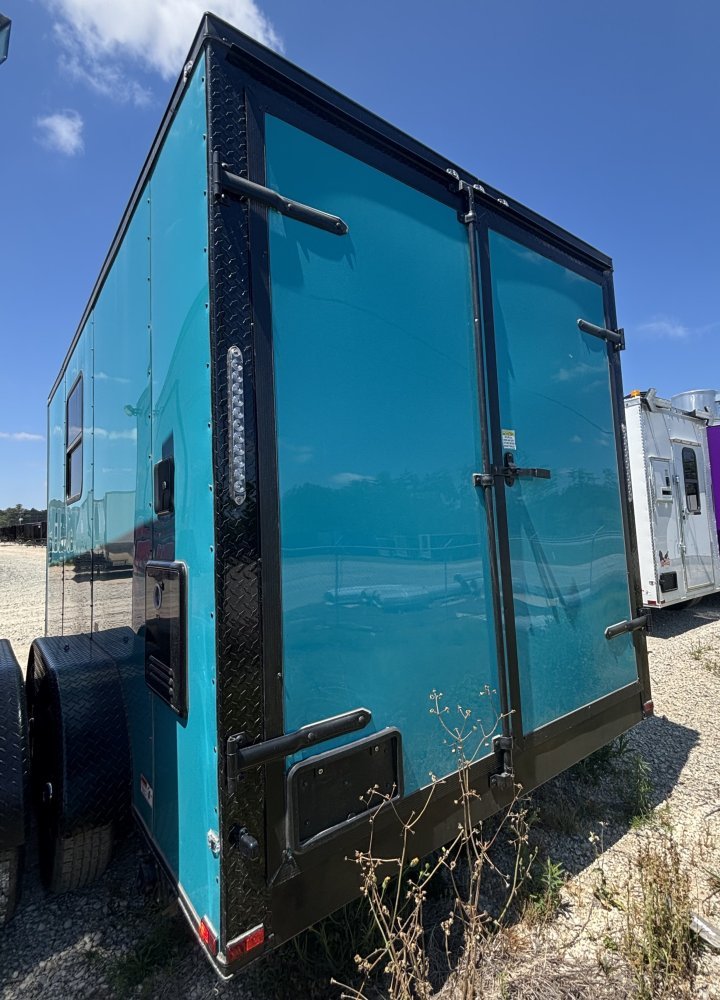

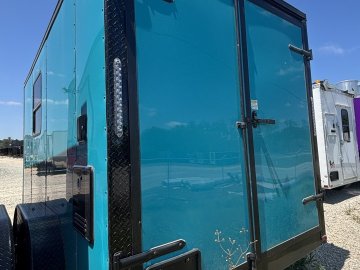

7'x14' Quality Cargo Pet Grooming

Standard Specifications

• 15” Tires
• Silver Mod Wheels
• 32” RV Style Side Door with Flush Lock
• V-Nose with Vertical ATP Trim
• Double Rear Doors with Bar Lock or Ramp
• Tandem 3500 lb Spring Axles with 4” Drop & EZ Lube Hubs
• 24” Stoneguard on Front
• White Metal Exterior
• 2” Coupler
• Aluminum Fenders with Lights
• 3/4” Plywood Floor (Painted Underneath)
• Premium 3/8” Plywood Sidewalls
• 1” x 1½” Steel Tube Walls & Ceiling
• 75” (6’3”) Interior Height
• 2000 lb Tongue Jack
• 2” x 4” Steel Tube Main Rails
• 12V Dome Light with Switch
• Non-Powered Roof Vent or Sidewall Vent
• LED Strip Tail Lights
• Wall Members 16” O.C.
• Floor Crossmembers 16” O.C.
• Roof Members 24” O.C.
• Screwed Metal Exterior
• Galvalume Roof
• 7-Way Bargman Plug

Structure

• Flat Front with Radius Round Corners & Header
• 60” Triple Tube Tongue (TTT)
• 9” Extra Height
• 2” x 6” Frame (Tank Support)
• Partition Wall (34” from Rear)

Tie-Downs & Stabilizers

• 3,000 lb Electric Tongue Jack

Tires & Wheels

• Mag Wheels
• Chrome Center Lug Covers
• Sand Foot
• Radial Tires

Doors, Ramps & Windows

• 32” RV Side Door (30” from Front)

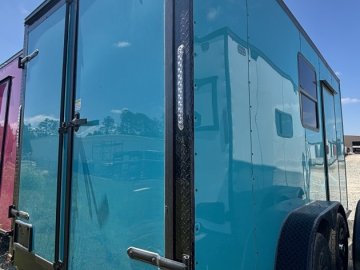

• Double Rear Barn Doors
• (2) 30” x 30” Windows — One on Each Side

Vents & A/C

• 15K BTU A/C with Heat & Thermostat
• Powered Roof Vent (Over Tub Area)

Exterior

• Water Blue Exterior
• Blackout Package

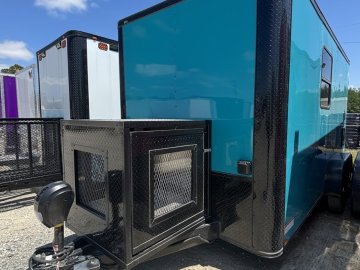

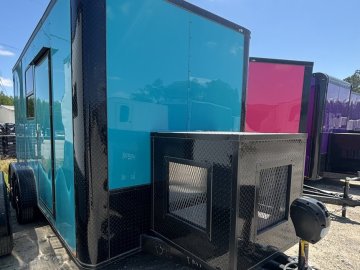

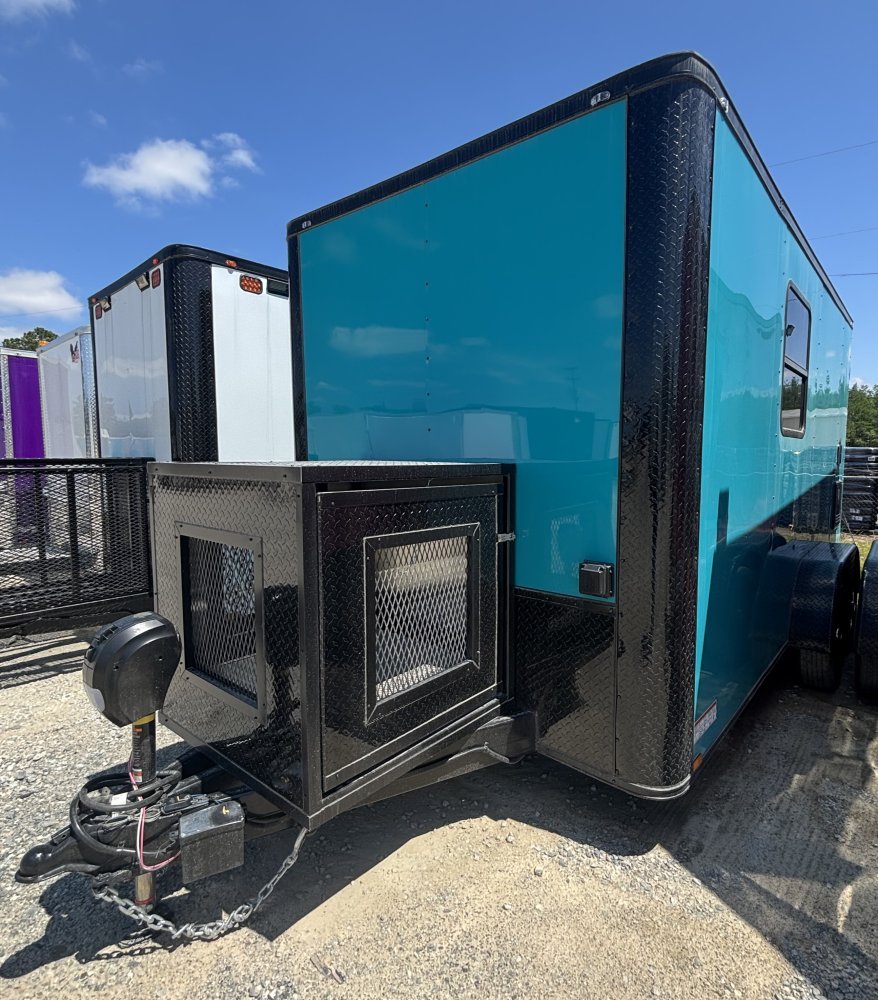

• Generator Box with Heavy-Duty Slide & Tray (4 Vents)

Interior

• Cool Seal Liner
• Plywood Trim
• All Black Interior Trim
• Gray Marble Front Wall (Remaining Walls: White Metal)
• White Metal Ceiling
• Gray Marble Flooring
• 18” x 24” Full Closet by Tub (4 Evenly Spaced Shelves)

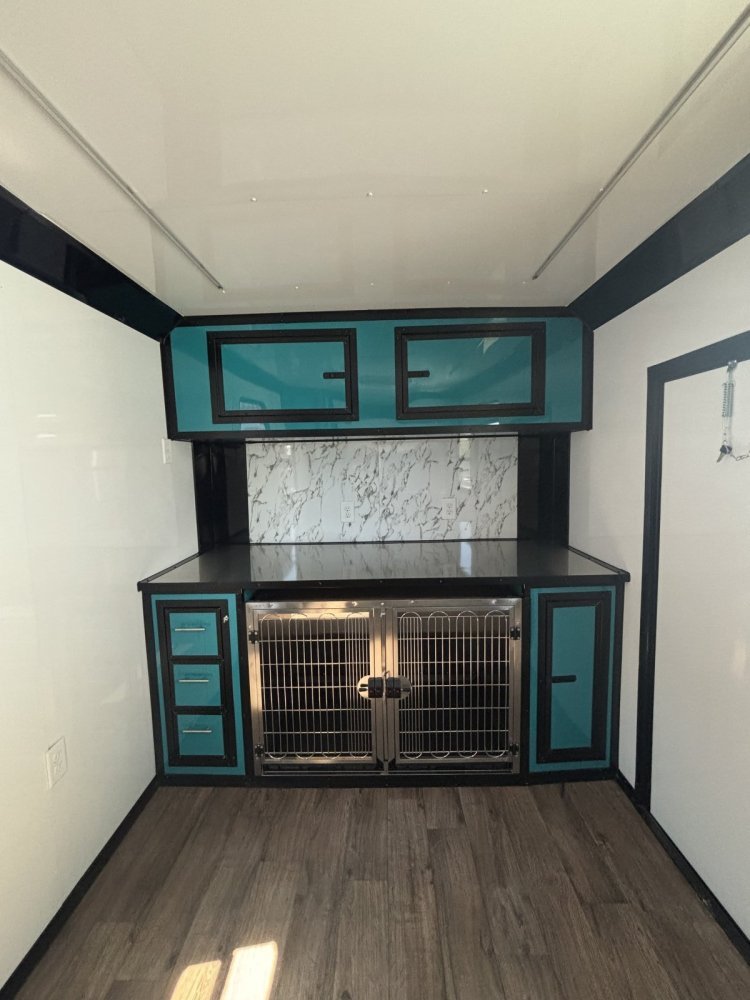

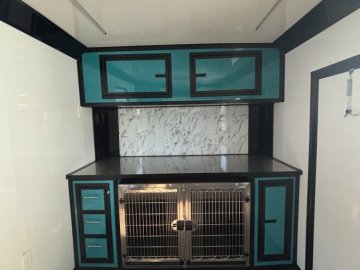

• Upper Cabinet in Flat Front
• Base Cabinet in Flat Front
• Front Base Cabinet with Counter (46”W x 27.5”D x 32”H)
  • Dog Kennel Underneath
  • (3) Drawers
• All Cabinets & Closet in Water Blue Finish

Plumbing

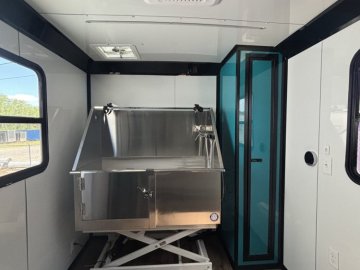

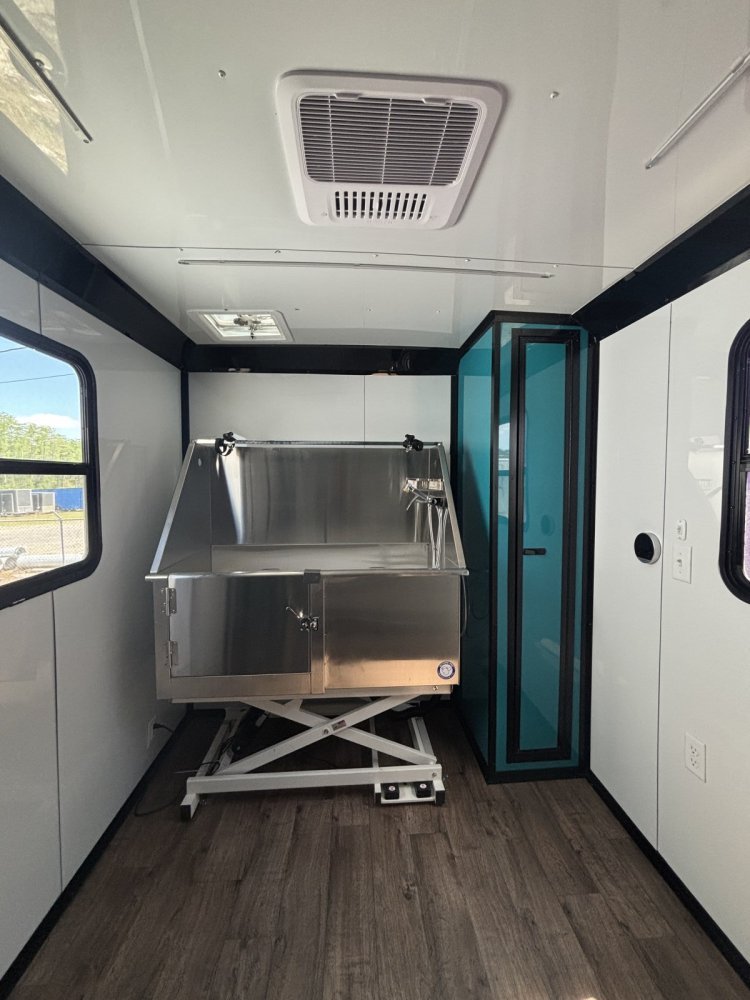

• Water Package with Dog Station (Electric Flying Pig Tub)
• 60 Gallon Fresh Water Tank
• 80 Gallon Waste Tank
• On-Demand Water Heater

Electrical

• All LED Exterior Lights
• 100 Amp Electrical Package with 50 Amp Motorbase Plug
• (8) Total Receptacles
  • 2 Between Upper & Lower Cabinets
  • 2 for Dryer & Table
  • 4 Standard Placement
• (3) 12V LED Lights
• 12V Battery with Converter
