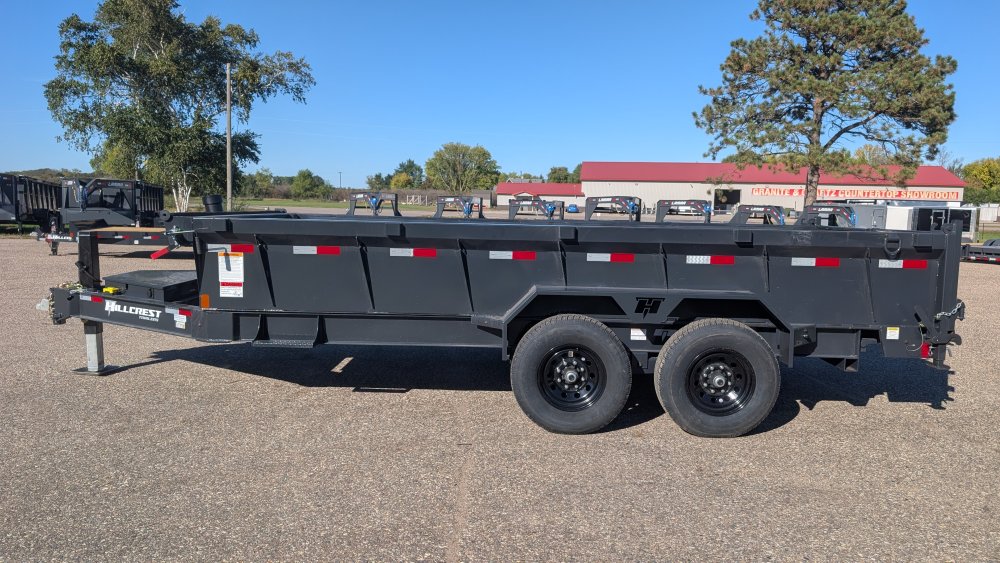

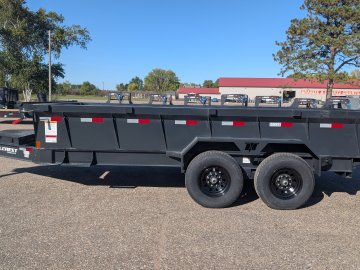

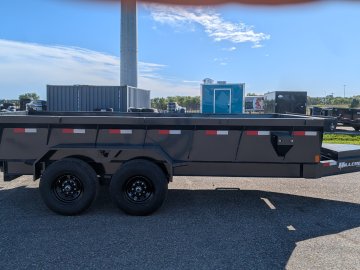

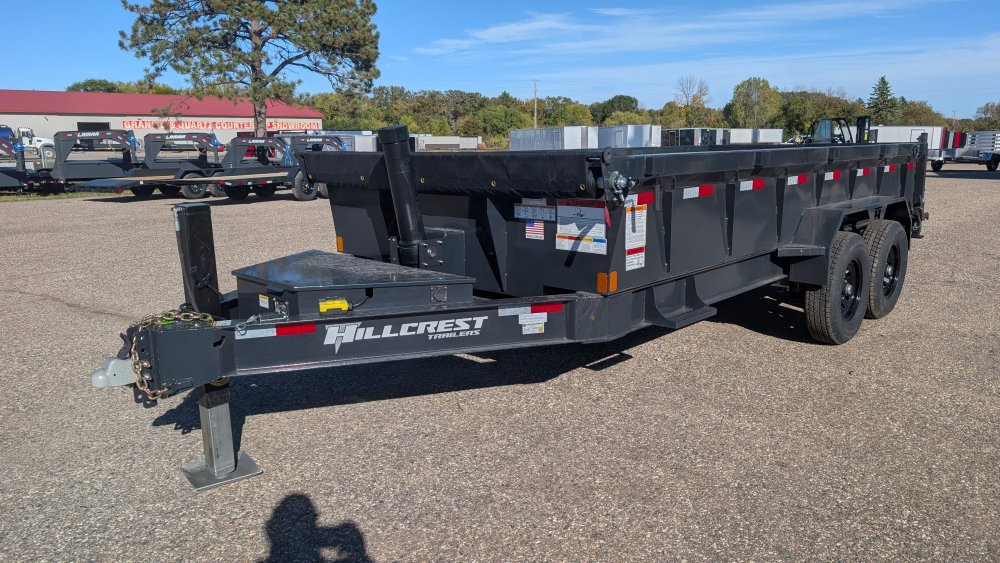

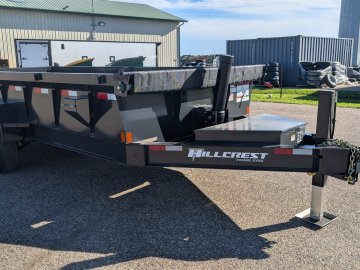

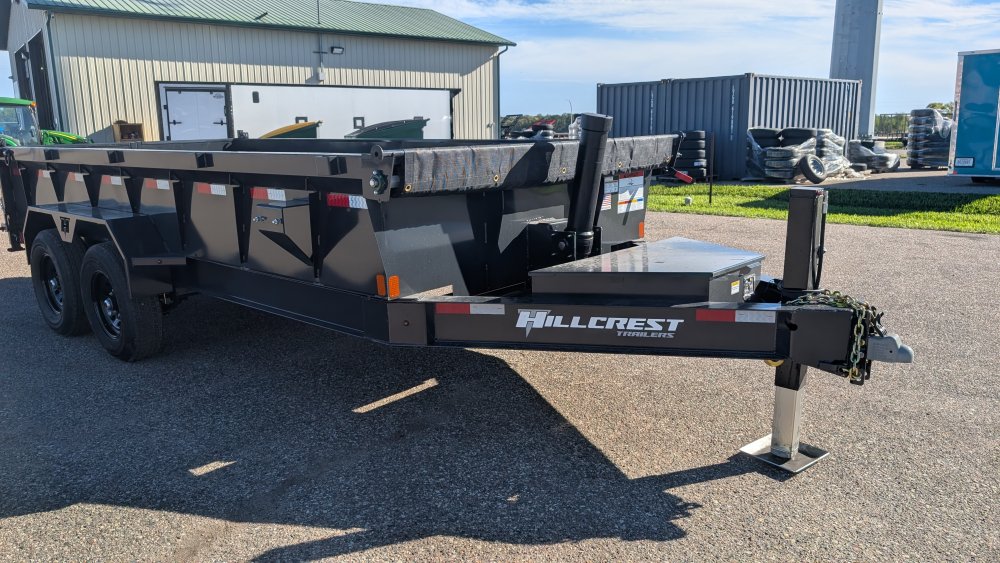

7'x16' Hillcrest Trailers, LLC 14716SD Dump

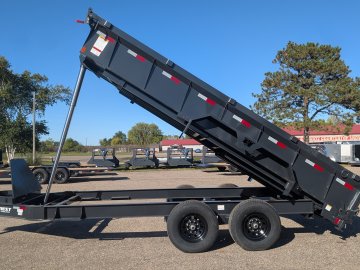

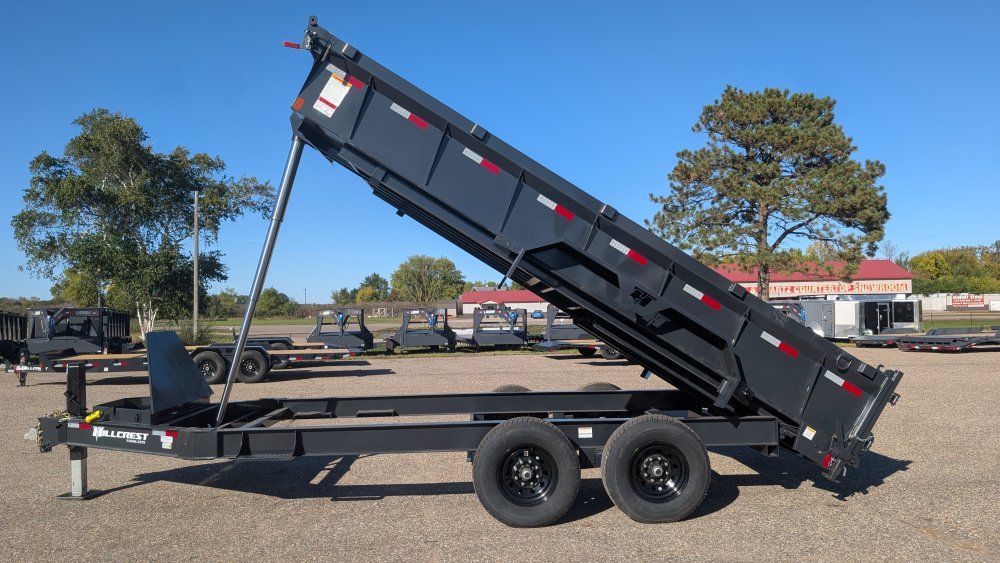

The Hillcrest 14716SD is built by Hillcrest Trailers in Sweetwater, Tennessee, engineered as a heavy-duty, commercial-grade workhorse designed to handle demanding jobsite abuse, demolition debris, and equipment hauling. Rated at a 14,000 lb GVWR with an empty weight of roughly 4,680 lbs, it delivers a massive 9,595 lbs of usable payload capacity. Its 83-inch-wide by 16-foot-long bed features 24-inch rigid sidewalls and an ultra-tough single-sheet 7-gauge steel floor, backed by a robust 8-inch I-beam frame and tongue with 3-inch channel crossmembers on 12-inch centers. At the heart of the dump system is a commercial 12-ton, 3-stage front telescopic cylinder powered by a smooth power-up/gravity-down hydraulic pump, giving you serious lifting leverage and efficient battery conservation.

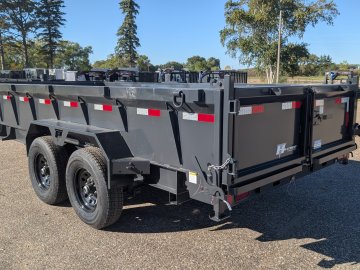

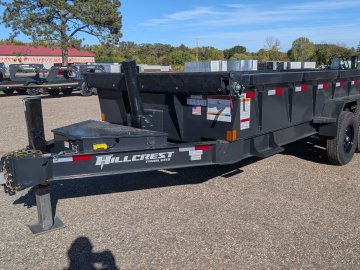

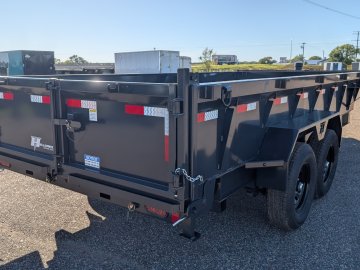

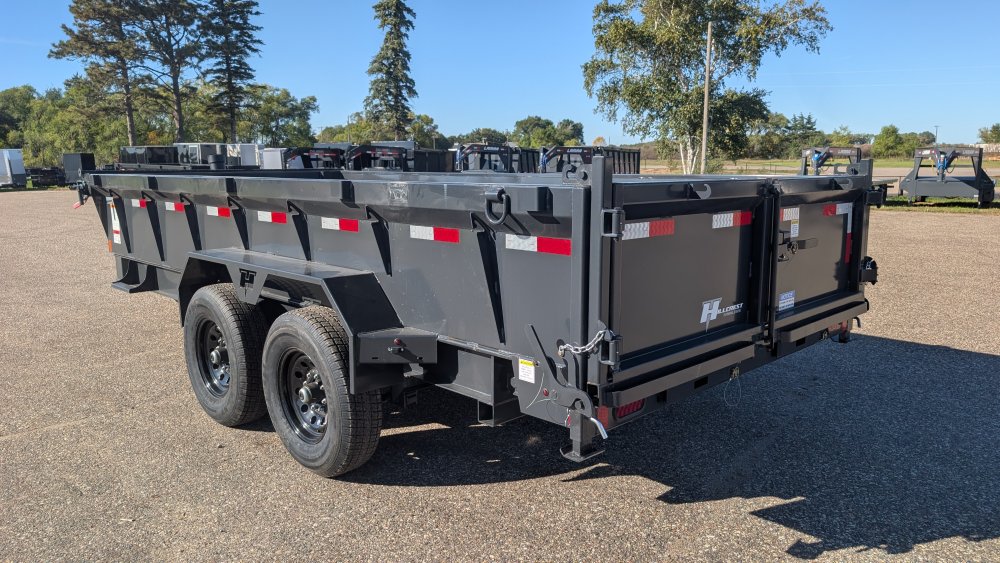

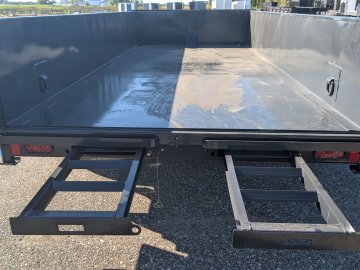

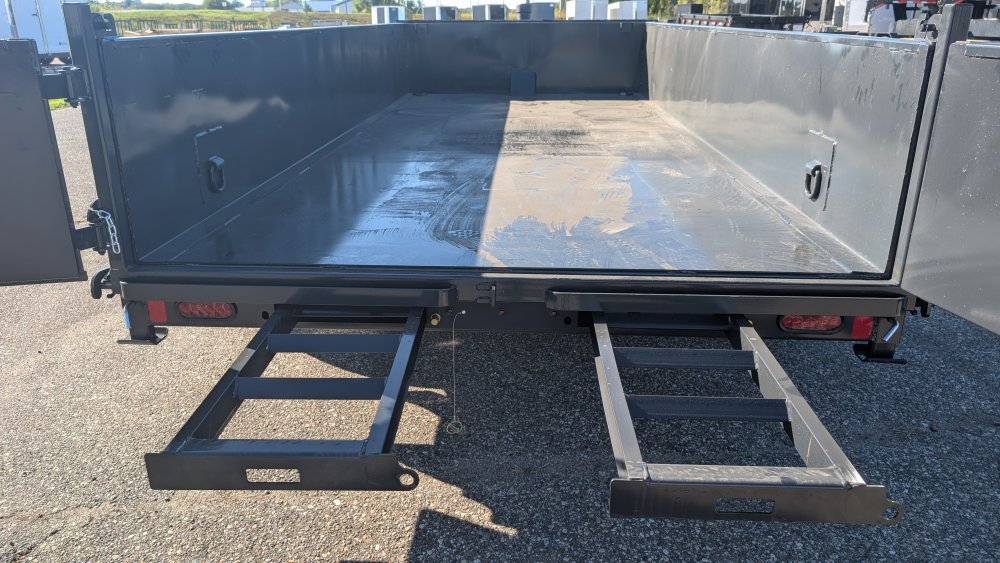

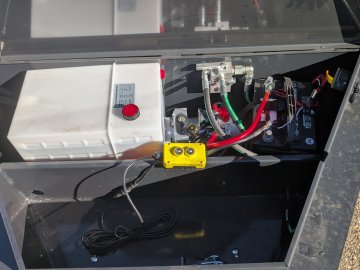

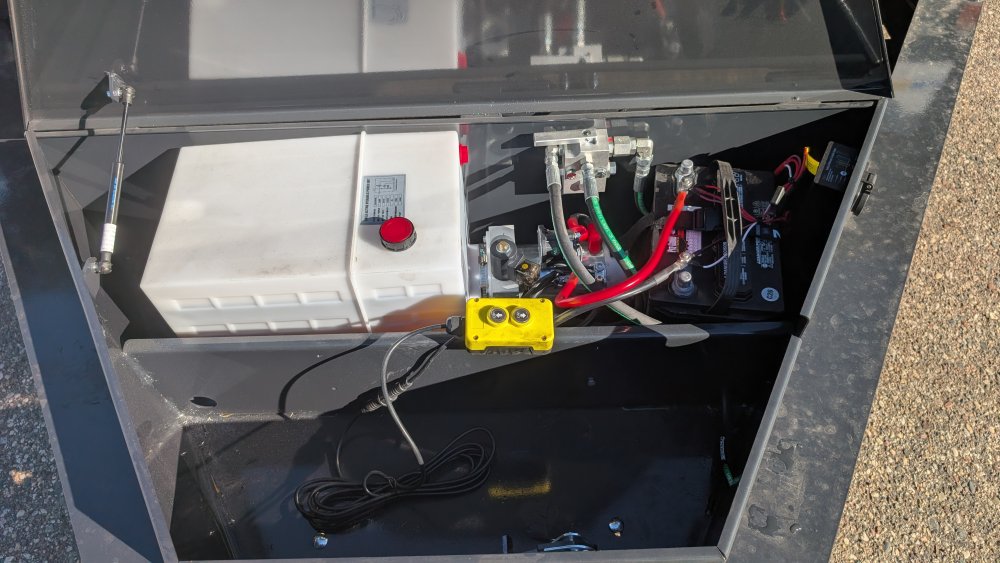

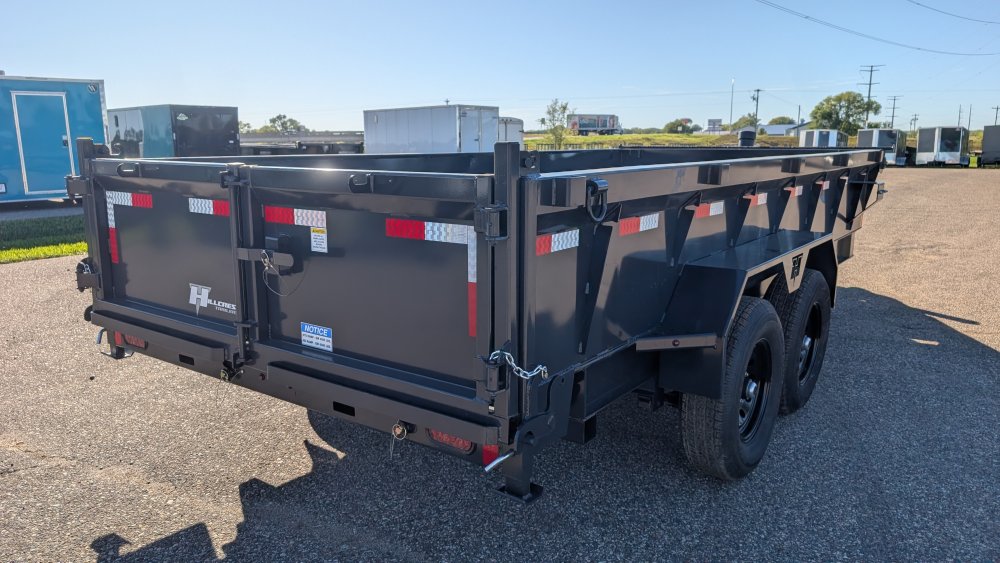

Versatility is baked into every detail, starting with a rear combo spreader gate and double barn doors, pull-out heavy-duty slide-in ramps, and drop-leg rear stabilizer stands that make driving skid steers or mini excavators on and off rock-solid and safe. Underneath, it rides on dual 7,000 lb premium cambered axles with quick-lube hubs, multi-leaf slipper spring suspension, forward self-adjusting electric brakes, and 16-inch 8-lug Load Range E radial tires. Hillcrest rounds out the package with an adjustable 2-5/16" coupler, a 12,000 lb drop-leg set-back jack, six interior 5/8" D-rings, stake pockets, an integrated front toolbox housing the pump and battery charger, a fully formed tarp shroud with roll tarp, and sealed modular LED lighting throughout.
