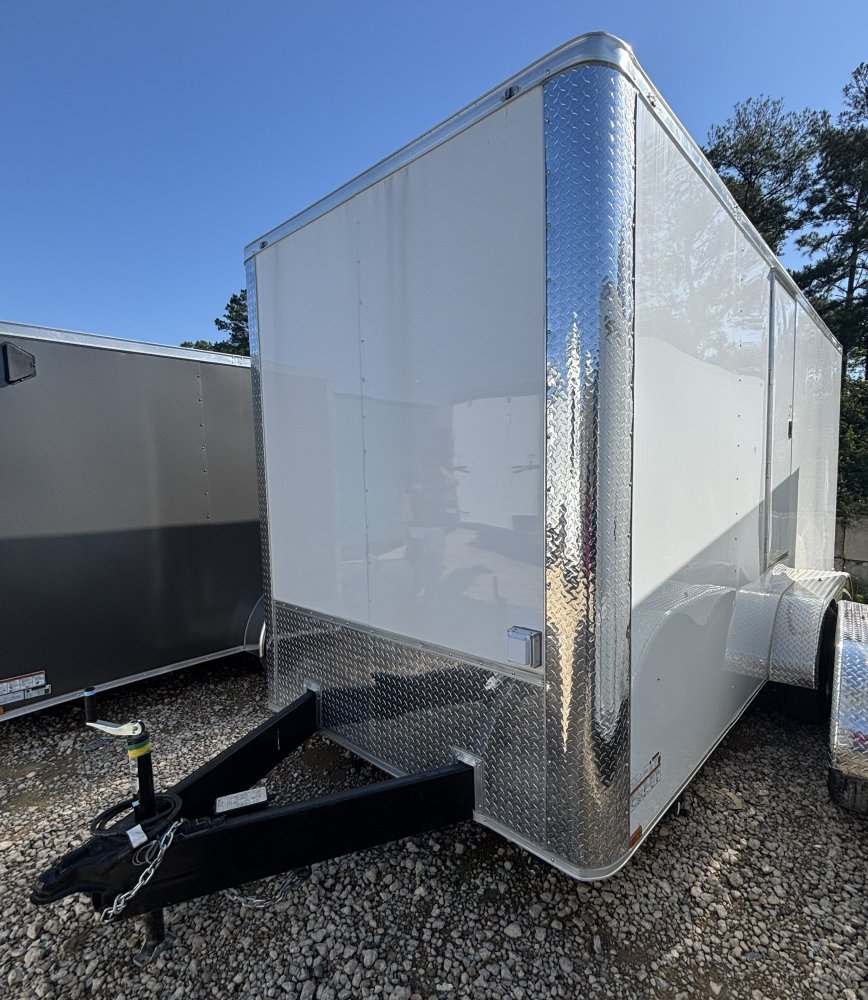

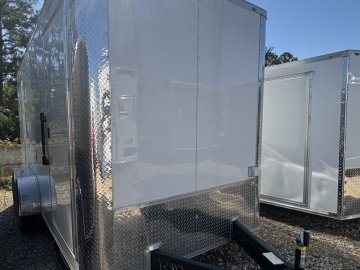

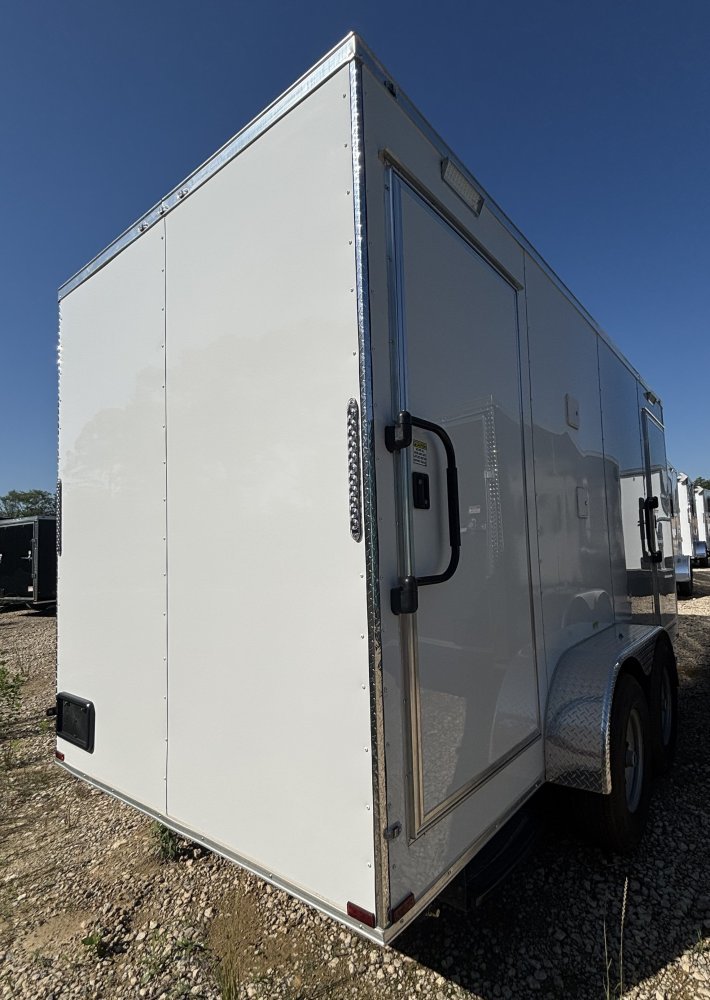

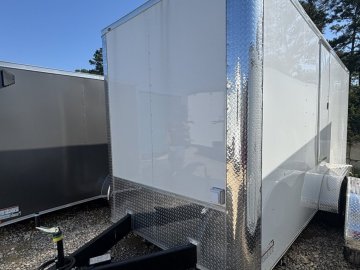

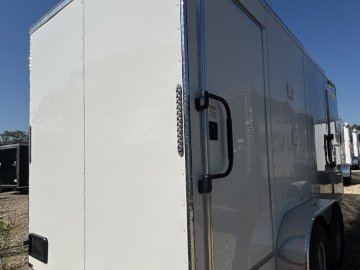

7'x16' Quality Cargo Bathroom Trailer

Standard Specifications

• 15” Tires
• Silver Mod Wheels
• 32” RV Style Side Door with Flush Lock
• V-Nose with Vertical ATP Trim
• Double Rear Door with Bar Lock or Ramp
• Tandem 3500 lb Spring Axles with 4” Drop and EZ Lube Hubs
• 24” Stoneguard on Front
• White Metal Exterior
• 3/4” Plywood Floor (Painted Underneath)
• Premium 3/8” Plywood Sidewalls
• 1” x 1½” Steel Tube in Walls and Ceiling
• 75” (6’3”) Interior Height
• 2” Coupler
• Aluminum Fender with Lights
• 2000 lb Tongue Jack
• 2”x4” Steel Tube Main Rails
• 12V Dome Light with Switch
• Non-Powered Roof Vent or Sidewall Vent
• LED Strip Tail Lights
• Wall Members 16” O.C.
• Floor Crossmembers 16” O.C.
• Roof Members 24” O.C.
• Screwed Metal Exterior
• Galvalume Roof
• 7-Way Bargman Plug

Structure

• Flat Front
• Upgrade to 7000 lb Axles
• 12” Extra Height
• 8” Frame
• 12” O.C. Floor Crossmembers
• 2 Pullout RV Steps

Tie-Downs & Stabilizers

• 2 Sets of Scissor Jacks

Tires & Wheels

• Silver Mod Wheels
• Chrome Center Lug Covers
• Sand Foot
• Radial Tires

Doors, Ramps, & Windows

• 36” RV Side Door Close to Front
• Additional 36” RV Door Close to Rear on Passenger Side

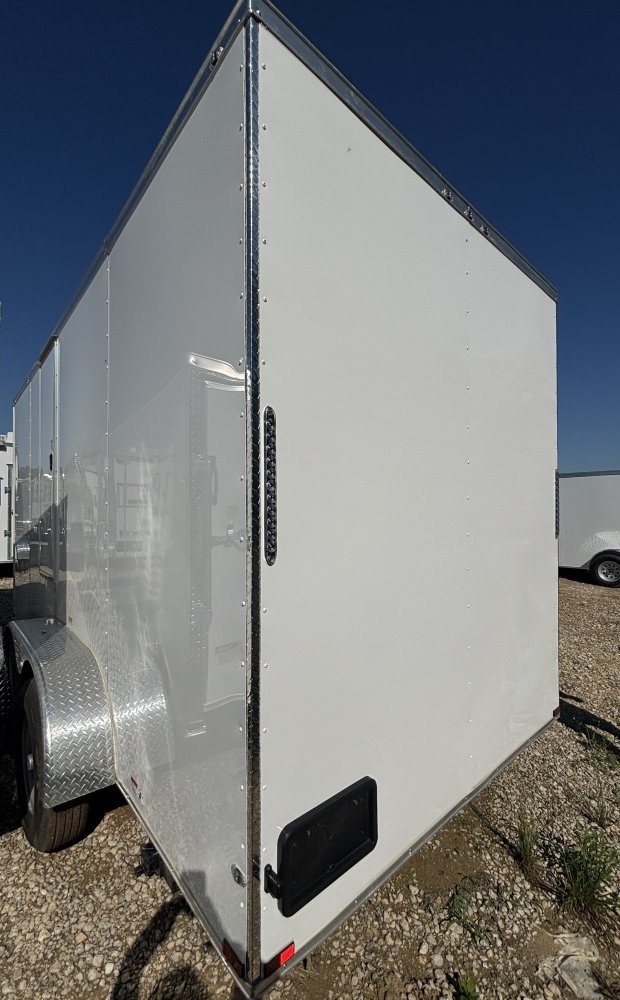

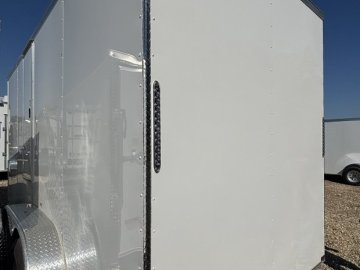

• Solid Rear
• 4 Fold-Down Door Handles

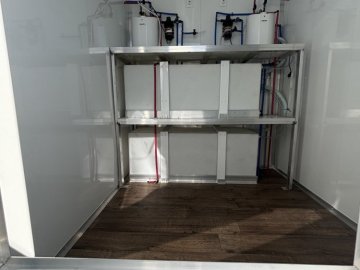

• 24”x75” RV Door for Plumbing Room

Vents & A/C

• 2 × 13.5K BTU A/C Units
• 2 × 12V Powered Roof Vents

Exterior

• White Exterior
• Semi-Screwless Exterior

Interior

• Cool Seal Liner
• Plywood Trim
• White Metal Walls
• White Metal Ceiling
• Wood Vinyl Floor (Oscura)

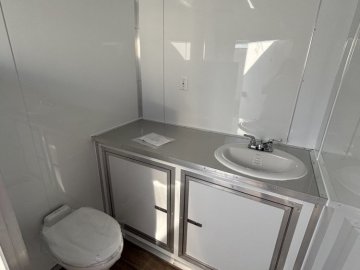

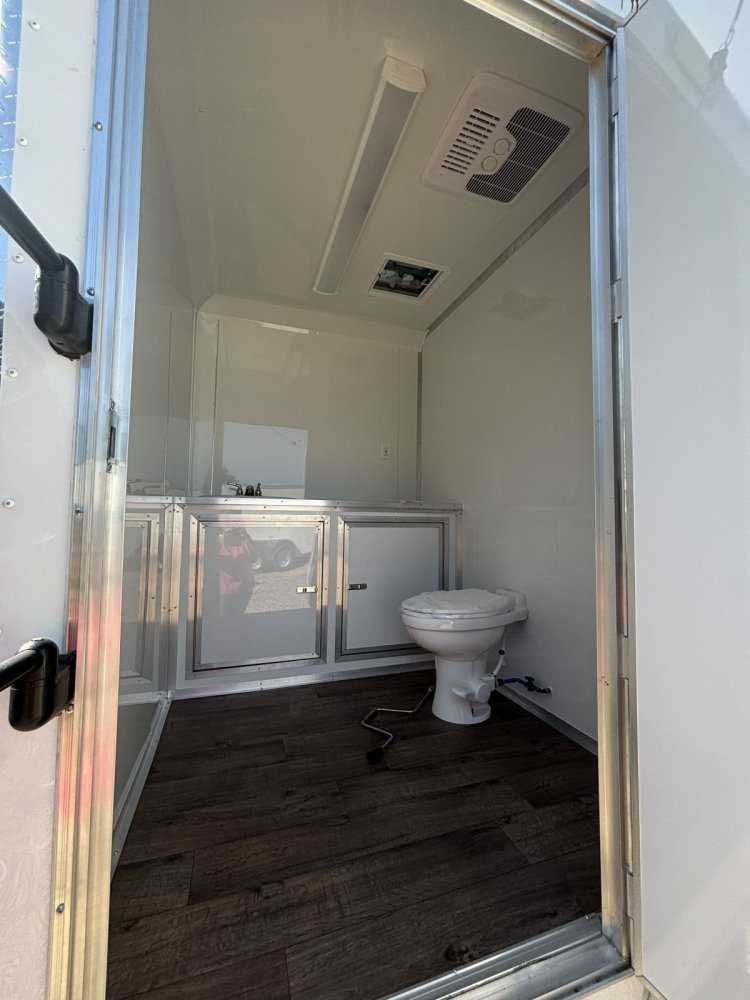

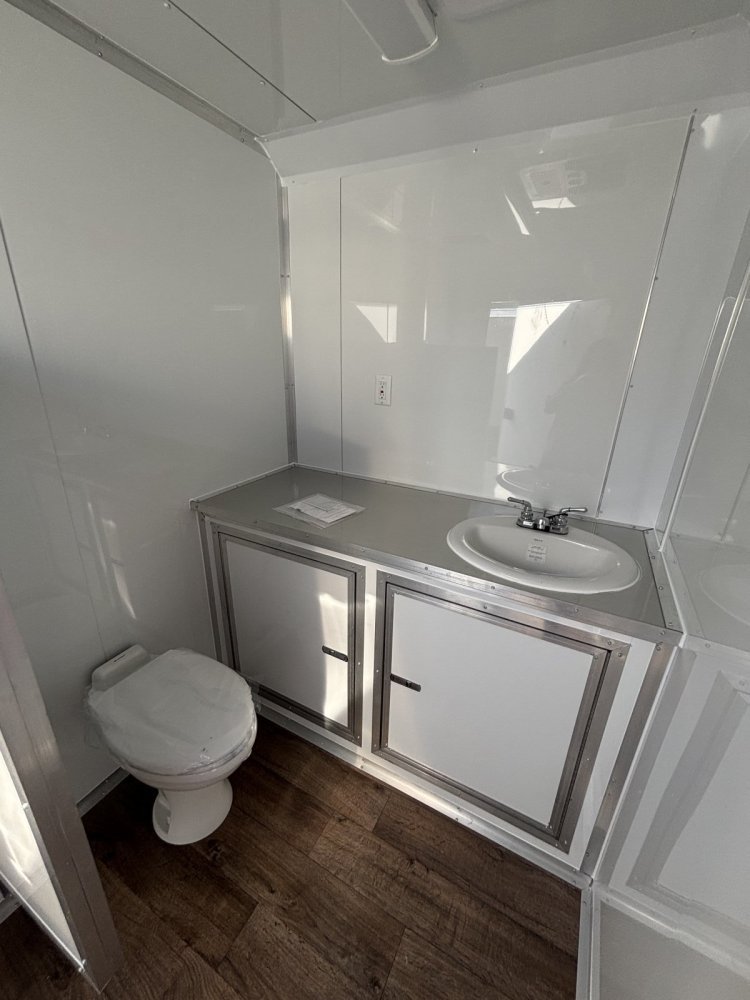

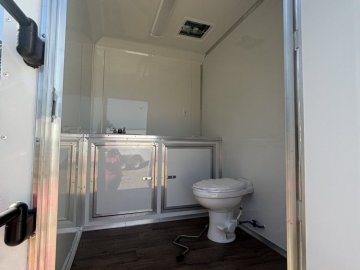

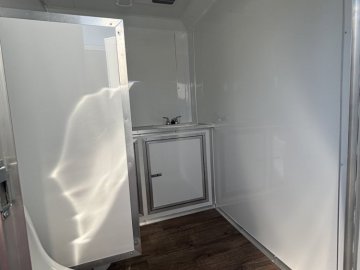

• 2 Half Bathrooms

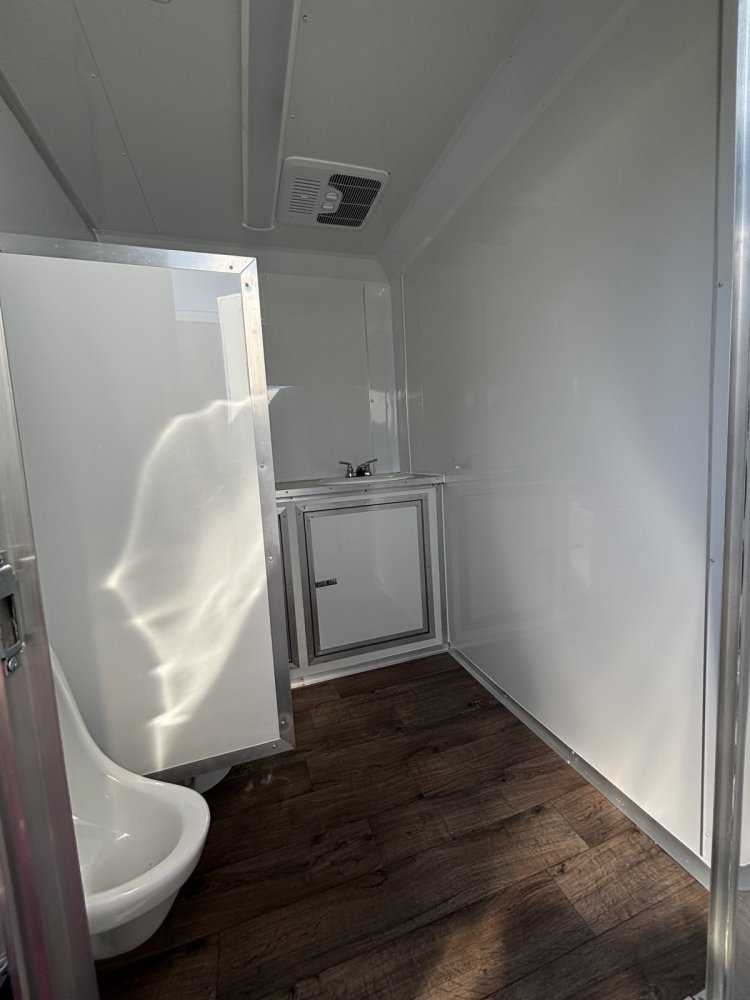

• Urinal for Men’s Bathroom

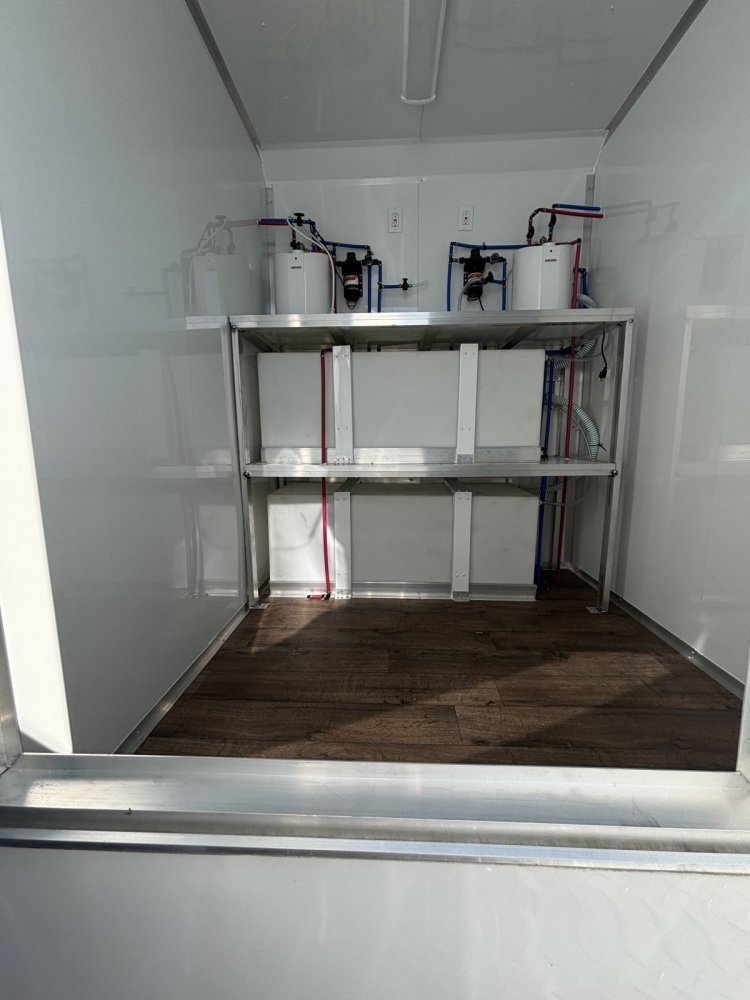

• 200 Gallon Waste Tank
• 150 Gallon Fresh Water Tank
• 2 × 2.5 Gallon Water Heaters

Electrical

• 50 Amp Electrical Package with 50 Amp Motorbase Plug
• 3 Total 110V Lights:
– 1 in plumbing room
– 1 in each bathroom
• 2 Exterior Loading Lights (1 above each door)
• 2 GFI Receptacles — 1 in each bathroom
• 2 × 110V Receptacles in Plumbing Room
• Converter
