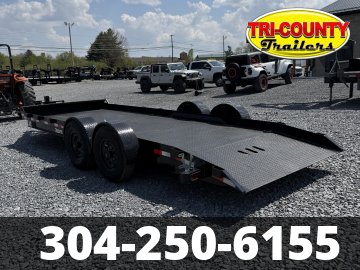

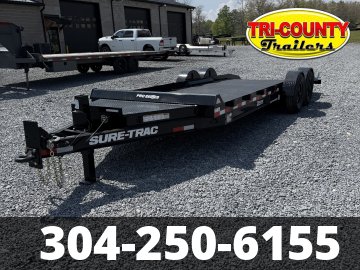

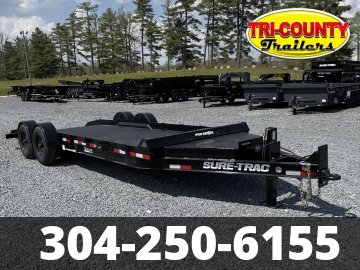

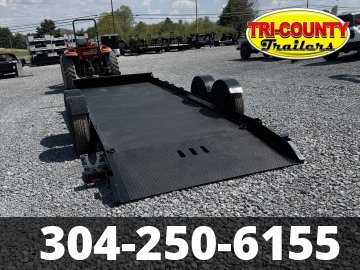

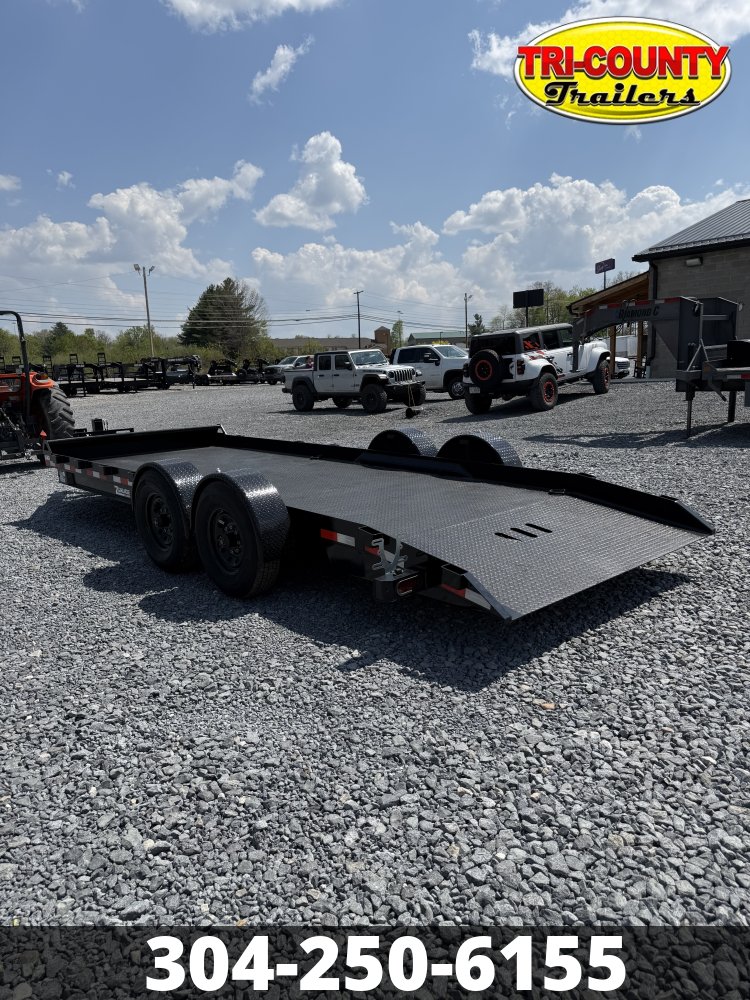

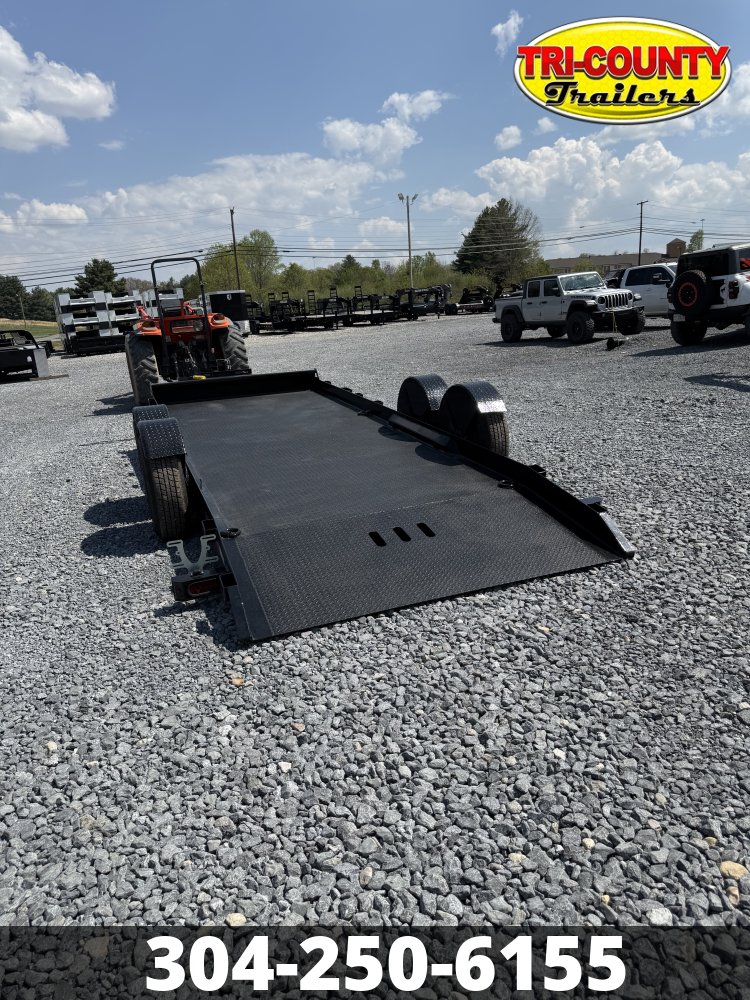

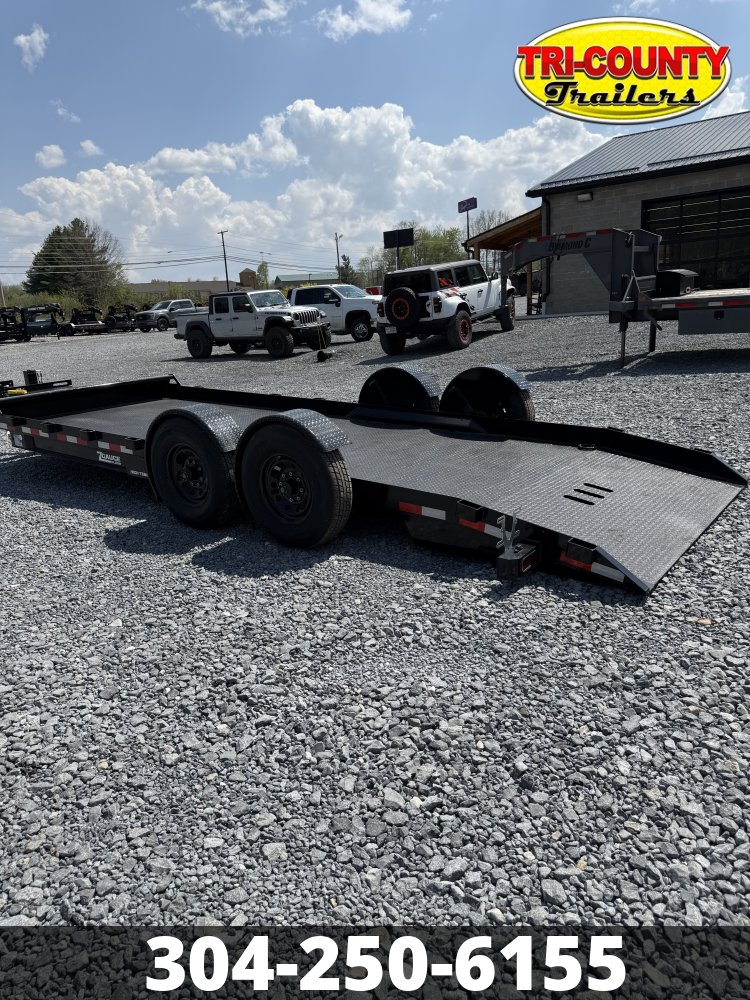

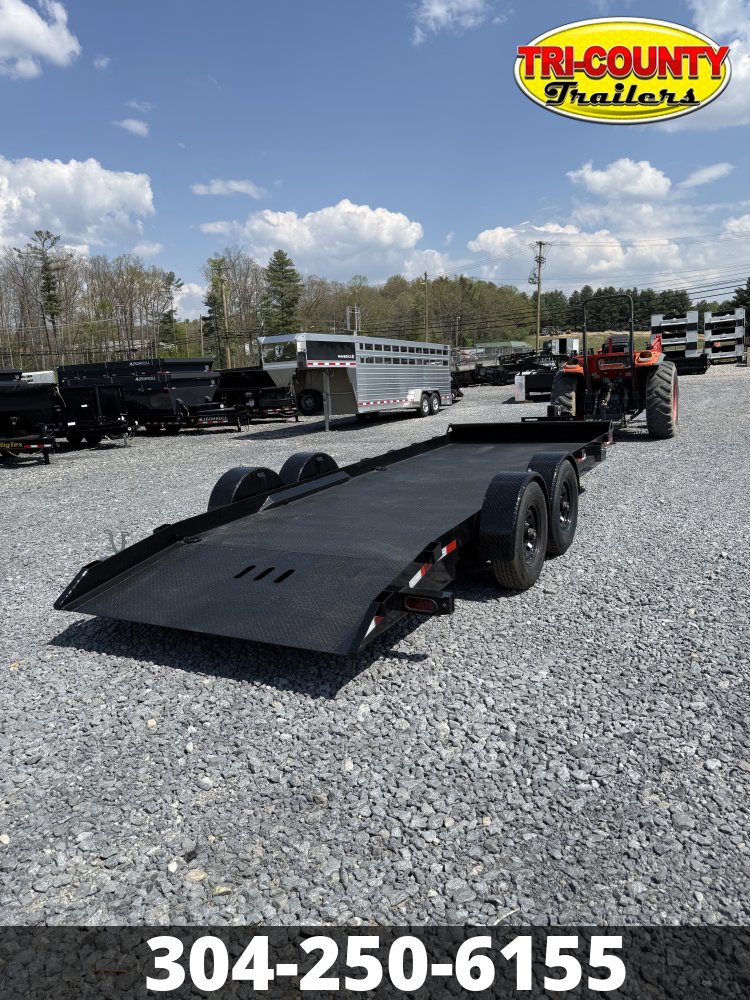

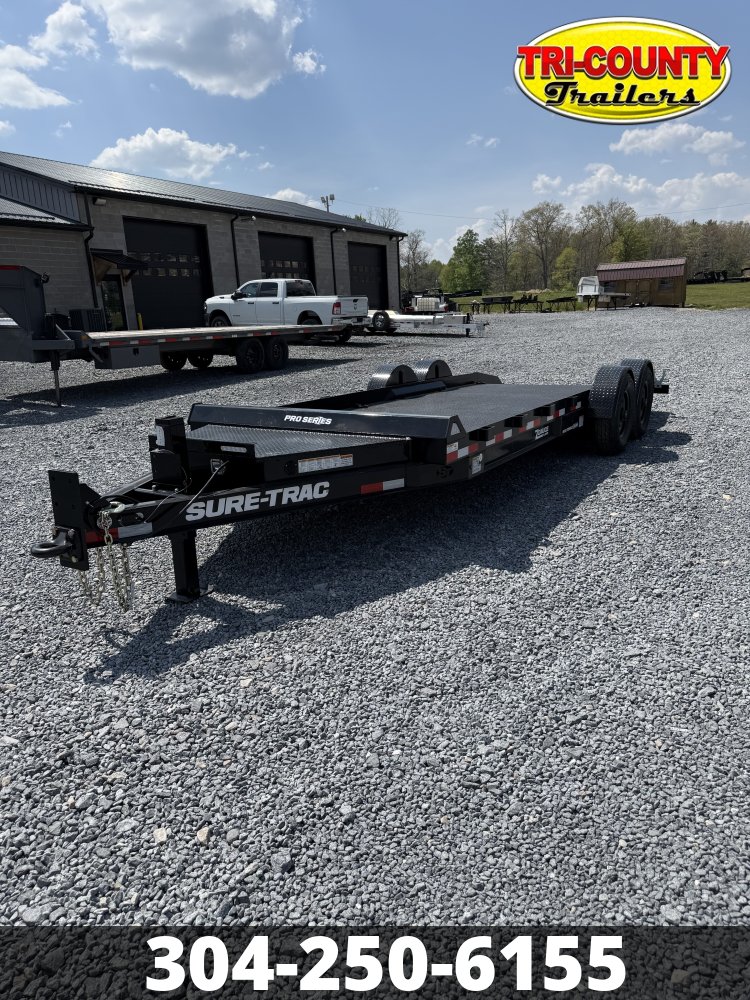

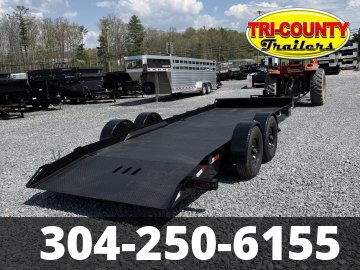

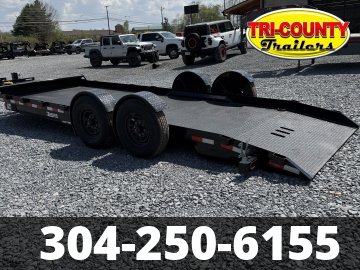

The Pro Series Drop Deck Equipment Trailer takes the stress and danger out of loading and unloading equipment. Lower the trailer deck to the ground with the push of a button and smoothly drive equipment on and off without ramps. The hydraulic system helps create an easier, safer loading process.

Engineered with a 7-gauge steel floor and slip-resistant finish, this trailer helps keep equipment secure during loading and unloading-even in wet or slippery conditions.

Specifications and Features:

• GVWR (lbs): 15400 lbs
• GAWR (lbs/axle): 7000 lbs/axle
• Curb Weight: 2950 lbs
• Payload: 12450 lbs
• Width: 7'
• Length: 18'
• Overall Length: 294"
• Deck Height: 20.5"
• Coupler Height: 14.5-23.5
• Height Coupler: 14.5-23.5
• Height Deck: 20.5"
• Width Between Fender: 79.25"
• Load Angle: 11.5
• Type: OPEN
• 12V Electrical: 12 Volt DC 24 Battery
• Axle: (2) 7000 lb. Torsion Brake
• Beavertail: 3' Tread Plate
• Breakaway: Battery, Switch, and Lanyard
• Bulkhead: HD Bulkhead with Integrated Tie-Down Points
• Connector Plug: Round 7-pin Blade
• Coupler: Adjustable 4-Bolt Pintle Ring
• Crossmembers: 3" Steel Channel
• Decking: 7-Gauge Textured Steel Tread Plate
• Exterior Finish: Industrial Grade Polymer Finish
• Exterior Lights: Full LED, DOT Compliant
• Exterior Storage: Large Toolbox with Interior Light and Gas Spring, Spare Tire Carrier
• Fenders: Radius Tread Plate
• Frame: 6", 9 lb/ft I-Beam, Tilting Deck - 6" x 4" x 5/16" Reinforced Angle
• Hubs: Easy Lube
• Hydraulic Components: 12 Volt Hydraulic Pump, Power Up, Power Down Pump
• Ramp(s): HD Diamond Plate Knife Edge Tail
• Safety Chains: DOT Compliant
• Tie Downs: (4) 3/4" D-Rings, Oversize 5" x 1/4" Thick Stake Pockets
• Tires: ST235/80R16E 10-PLY
• Tongue: 6" Flange, 9 lb/ft I-Beam
• Tongue Jack: 12K, 2-Speed Drop Leg
• Wheels: 16", 8-Lug Steel

This durable drop deck equipment trailer is designed to make loading, unloading, and transporting equipment more convenient and secure.
