8.5'x12' Quality Cargo Concession Trailer

Standard Specifications

• 15” Tires
• Silver Mod Wheels
• 32” RV Style Side Door with Flush Lock
• V-Nose with Vertical ATP Trim
• Rear Ramp with Spring Assists and Flap
• Tandem 3500 lb Spring Axles with 4” Drop and EZ Lube Hubs
• 24” Stoneguard on Front
• White Metal Exterior
• Beavertail Frame
• 4 D-Rings in Floor
• 3/4” Plywood Floor (Painted Underneath)
• Premium 3/8” Plywood Sidewalls
• 1” x 1½” Steel Tube in Walls and Ceiling
• 78” (6’6”) Interior Height
• 2000 lb Tongue Jack
• 6” I-Beam Main Frame
• 12V Dome Light with Switch
• Non-Powered Roof Vent or Sidewall Vent
• LED Strip Tail Lights
• Wall Members 16” O.C.
• Floor Crossmembers 16” O.C.
• Roof Members 24” O.C.
• Screwed Metal Exterior
• Galvalume Roof
• 7-Way Round Electrical Plug with 2 5/16” Coupler

Structure

• Flat Front
• 6” Extra Height
• 60” Tongue-to-Tip (TTT)
• ATP on Tongue

Tie-Downs & Stabilizers

• 4 D-Rings
• 2 Scissor Jacks
• Electric Jack

Tires & Wheels

• Silver Mod Wheels
• Chrome Center Lug Covers
• Sand Foot

Doors, Ramps, & Windows

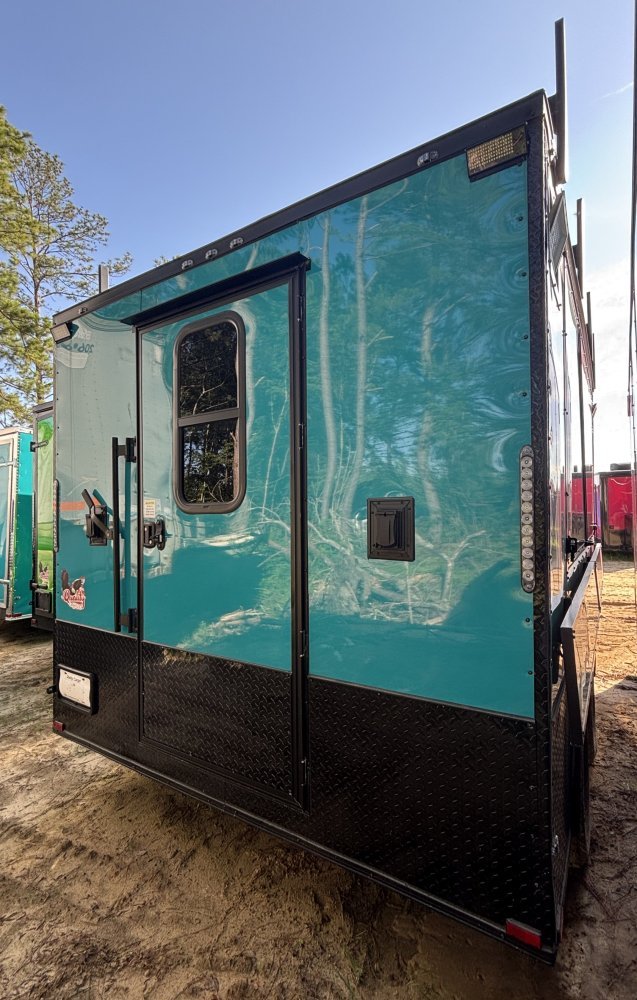

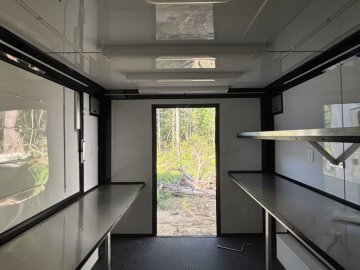

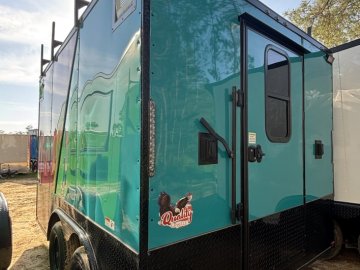

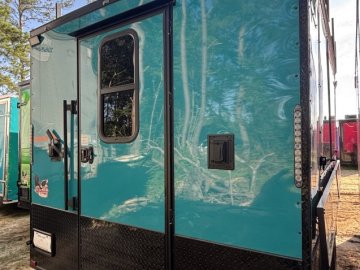

• 36” RV Door Moved to Rear — Centered
• Solid Rear Wall
• 4’x8’ Window without Glass with 2 Latches — Centered
• Bar Lock on Side Door
• 30”x15” Window on Door

Vents & A/C

• 13.5K BTU A/C

Exterior

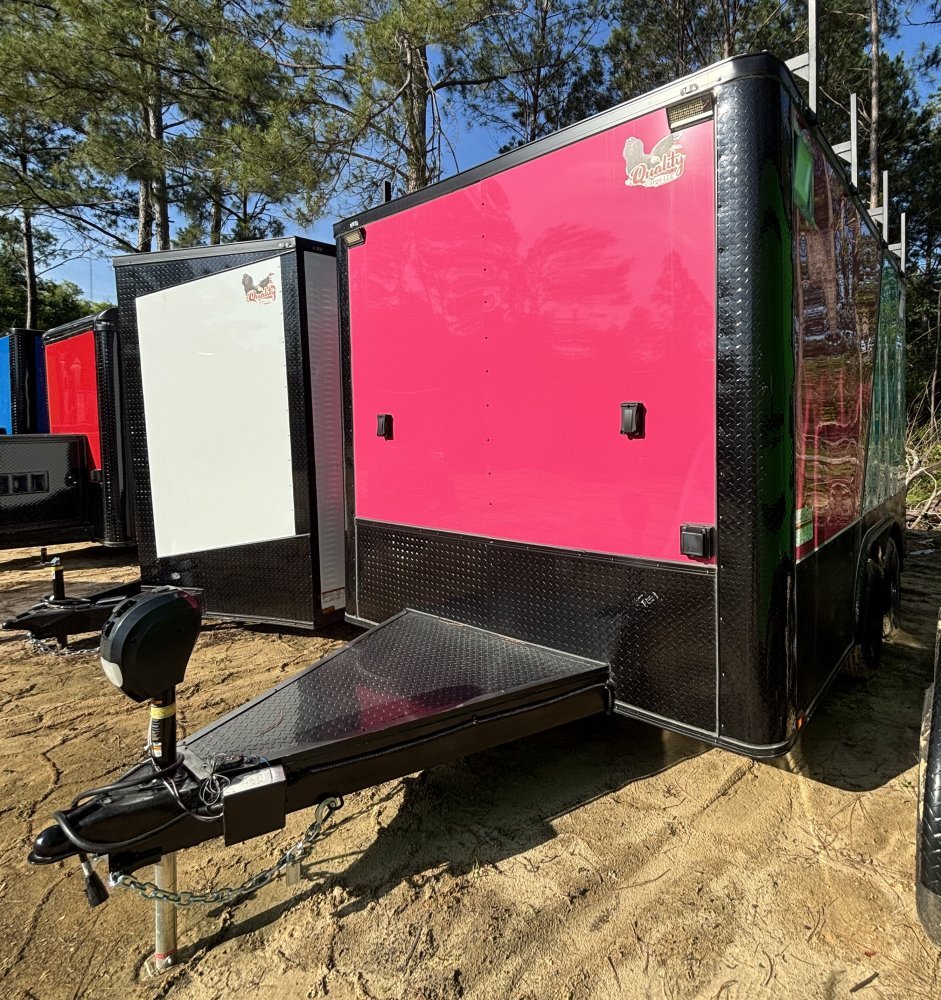

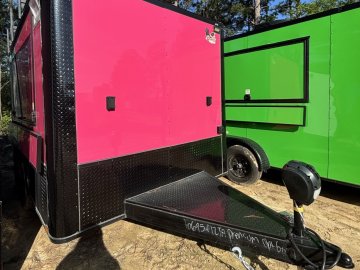

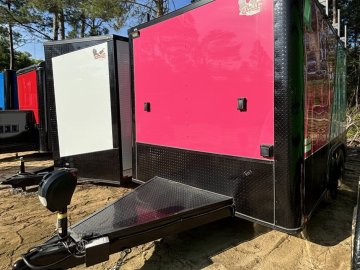

• Two-Tone Exterior — Pink Front / Water Blue Rear
• Blackout Package

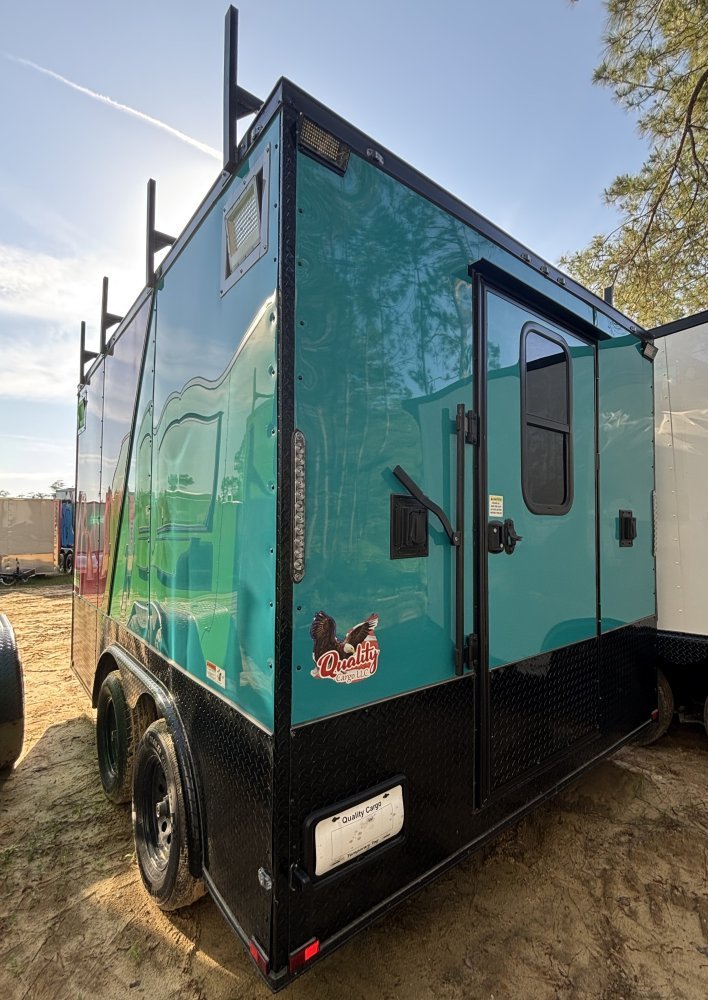

• 4 Ladder Racks
• 24” ATP on Front, Sides, and Rear
• 12”x12” Fold-Down Shelf

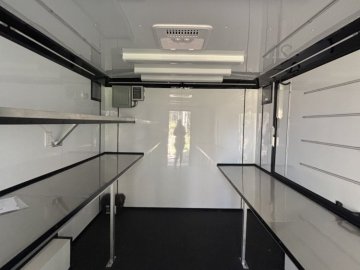

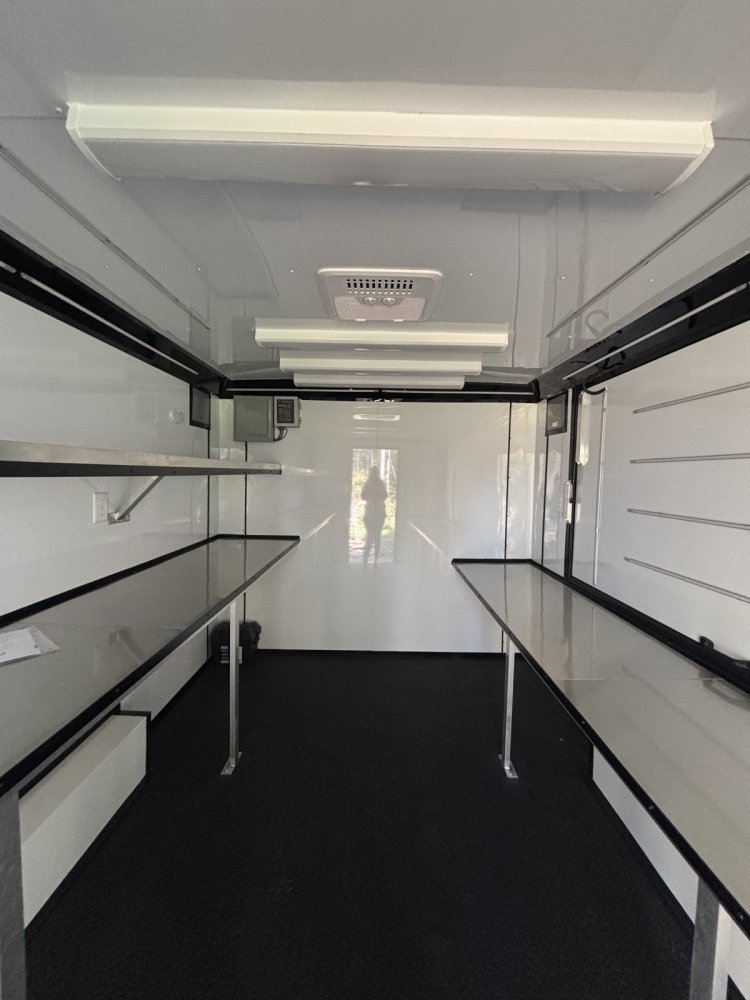

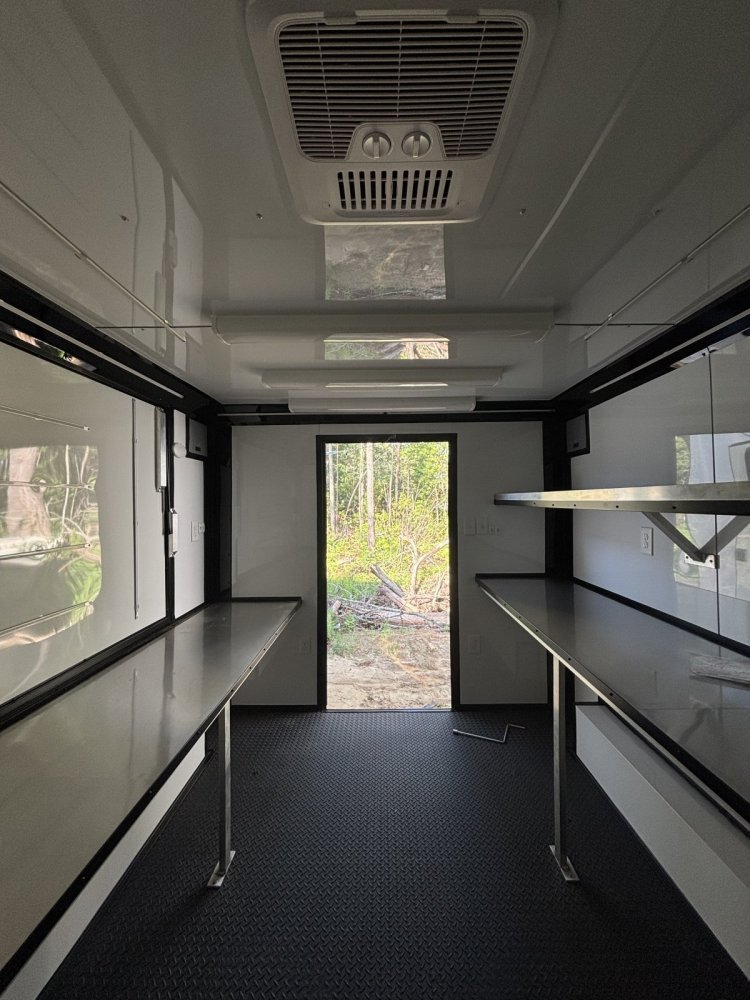

Interior

• Cool Seal Liner
• Plywood Trim
• All Black Interior Trim
• White Metal Walls
• White Metal Ceiling
• RTP Floor
• 18”x12’ Shelf on Driver Side — 2’ from Ceiling
• 24”x12’ Counter with (4) Legs Under Window
• 24”x12’ Counter with Legs on Driver Side

Electrical

• All LED 12V Lighting
• 4 LED Flood Lights — 2 Front / 2 Rear
• 4 Square Quartz Lights — 2 beside window / 2 on driver side
• 4 Fluorescent Lights
• 50 Amp Electrical Package
• 50 Amp Motorbase Plug (Driver Side)
• 4 GFI Receptacles — 2 Front / 2 Rear
• 6 Extra Outlets (8 Total)
• 12 × 12V Battery Lights
• Battery with Converter
