8.5'x16' Quality Cargo Concession Trailer

Standard Specifications

• 15” Tires
• Silver Mod Wheels
• 36” RV Style Side Door with Flush Lock
• V-Nose with Vertical ATP Trim
• Rear Ramp with Spring Assists & Flap
• Tandem 3500 lb Spring Axles with 4” Drop & EZ Lube Hubs
• 24” Stoneguard on Front
• White Metal Exterior
• Beavertail Frame
• (4) D-Rings in Floor
• 3/4” Plywood Floor (Painted Underneath)
• Premium 3/8” Plywood Sidewalls
• 1” x 1 ½” Steel Tube in Walls and Ceiling
• 78” (6’6”) Interior Height
• 2000 lb Tongue Jack
• 6” I-Beam Main Frame
• 12V Dome Light with Switch
• Non-Powered Roof Vent or Sidewall Vent
• LED Strip Tail Lights
• Wall Members 16” O.C.
• Floor Crossmembers 16” O.C.
• Roof Members 24” O.C.
• Screwed Metal Exterior
• Galvalume Roof
• 7-Way Round Electrical Plug
• 2 5/16” Coupler

Structure

• V-Nose with Vertical ATP Trim
• 6” Extra Height
• 66” Triple Tube Tongue (TTT)

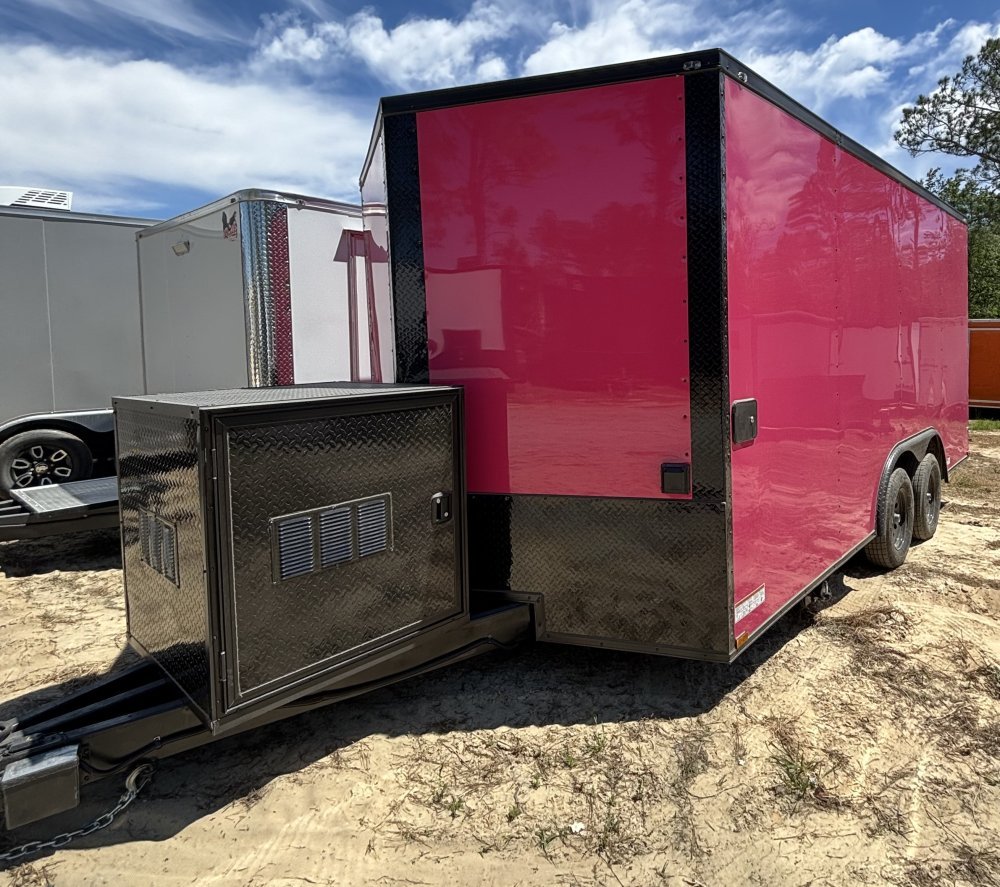

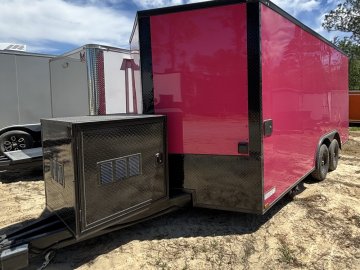

• Generator Box with Heavy-Duty Slide-Out Tray

Tires & Wheels

• Black Mod Wheels
• Chrome Center Lug Covers
• Sand Foot

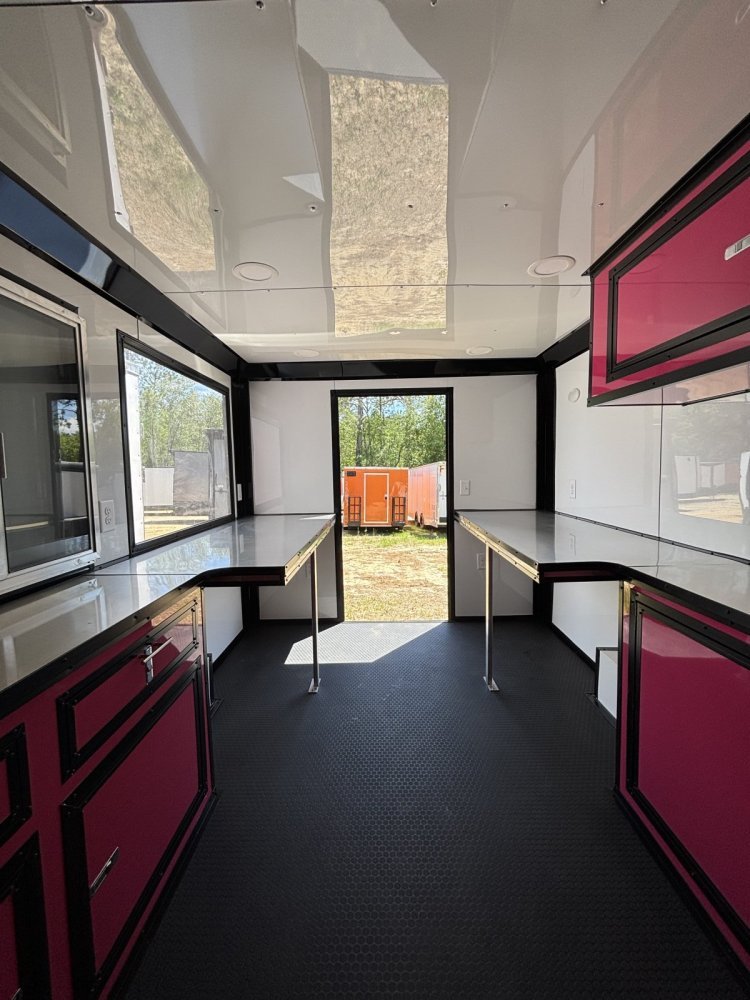

Doors, Ramps & Windows

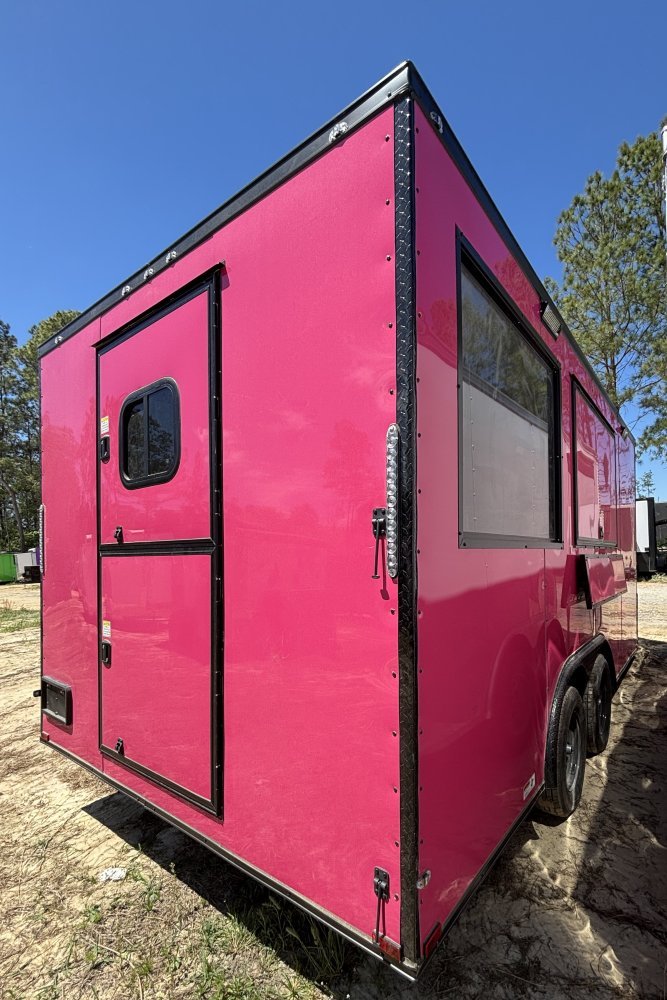

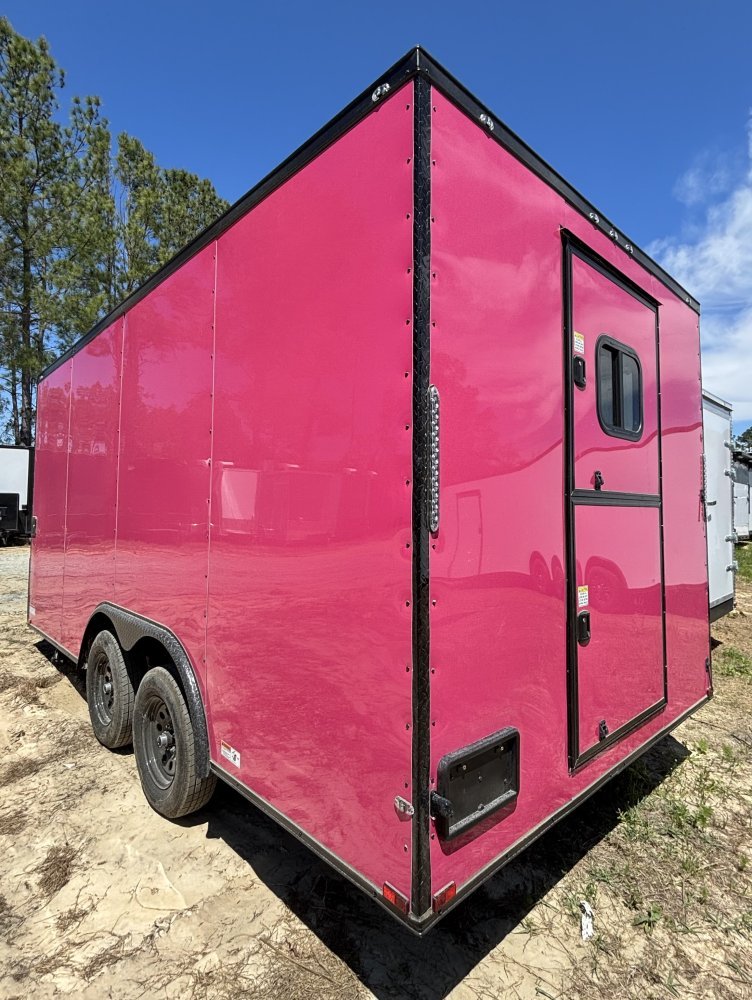

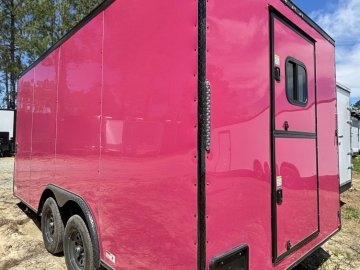

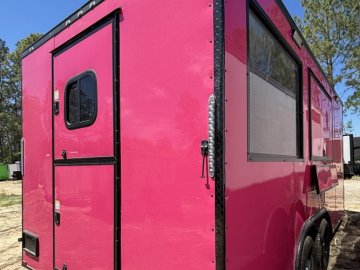

• 36” Dutch Door (Rear Centered) with 15” x 30” Window
• Interior 3’ Drop Shelf (at Rear Door)
• 3’ x 5’ Concession Window with Horizontal Glass (Passenger Side, 5’ from Front)
• 3’ x 4’ Viewing Window (Passenger Side, 1’ from Rear)

Vents & A/C

• 15K BTU A/C

Exterior

• Pink Exterior

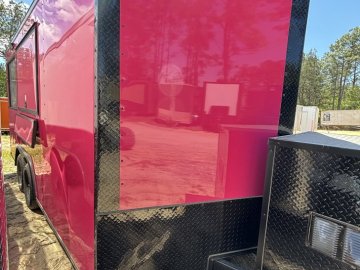

• Blackout Package
• 12” x 60” Fold-Down Shelf (Under Concession)
• Generator Box with Heavy-Duty Slide-Out Tray

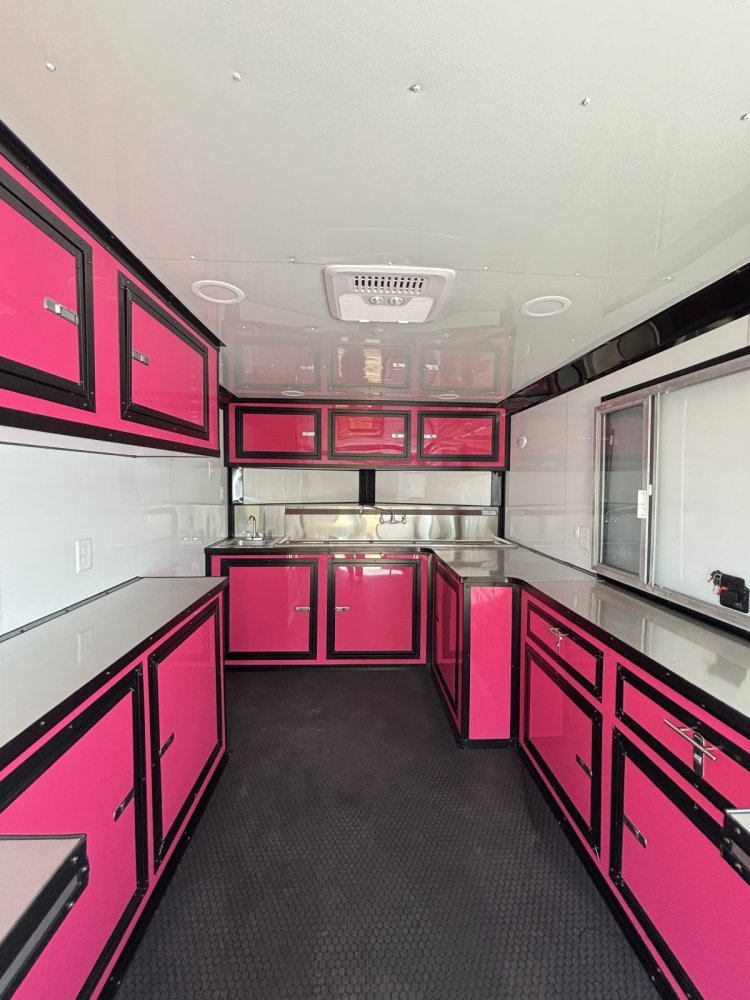

Interior

• Plywood Trim
• All Black Interior Trim
• Insulated Walls
• Insulated Ceiling
• White Metal Walls
• White Metal Ceiling
• Rubber Coin Floor

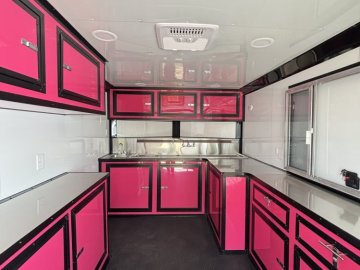

• All Pink Cabinets
• 18” x 60” Base Cabinet with (2) Drawers (Passenger Side)
• L-Shaped Base Cabinet (From Sink to Passenger Side)
• 18” x 60” Base Cabinet (Driver Side)

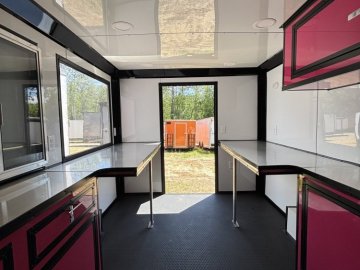

• 30” x 6’ Counter (Passenger Side)
• 30” x 6’ Counter (Driver Side)
• Overhead Cabinets Above Sink
• 6’ Upper Cabinet (Driver Side, 3’ Open Space)

Plumbing

• Triple Sink Package with Handwash
• 6 Gallon Water Heater

Electrical

• All LED 12V Lighting
• 100 Amp Electrical Package with 50 Amp Motorbase Plug
• (8) 110V Lights
• (9) Total Receptacles
  • 4 on Driver Side
  • 2 in Rear
  • 3 on Passenger Side
• (1) GFCI Near Handwash
• (2) Load Lights (1 on Each Side of Concession)
• 12V Battery with Charger
