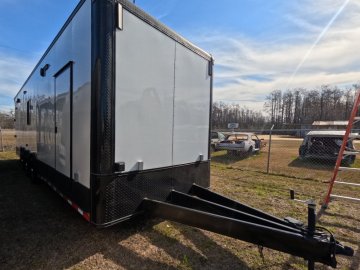

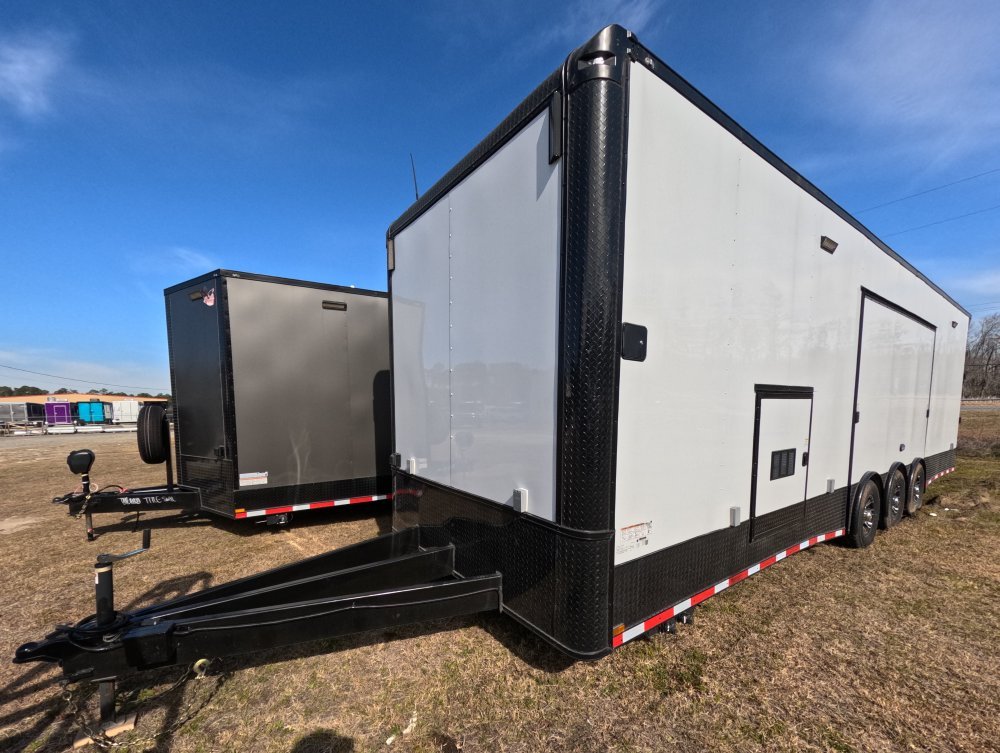

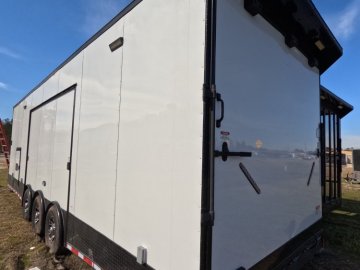

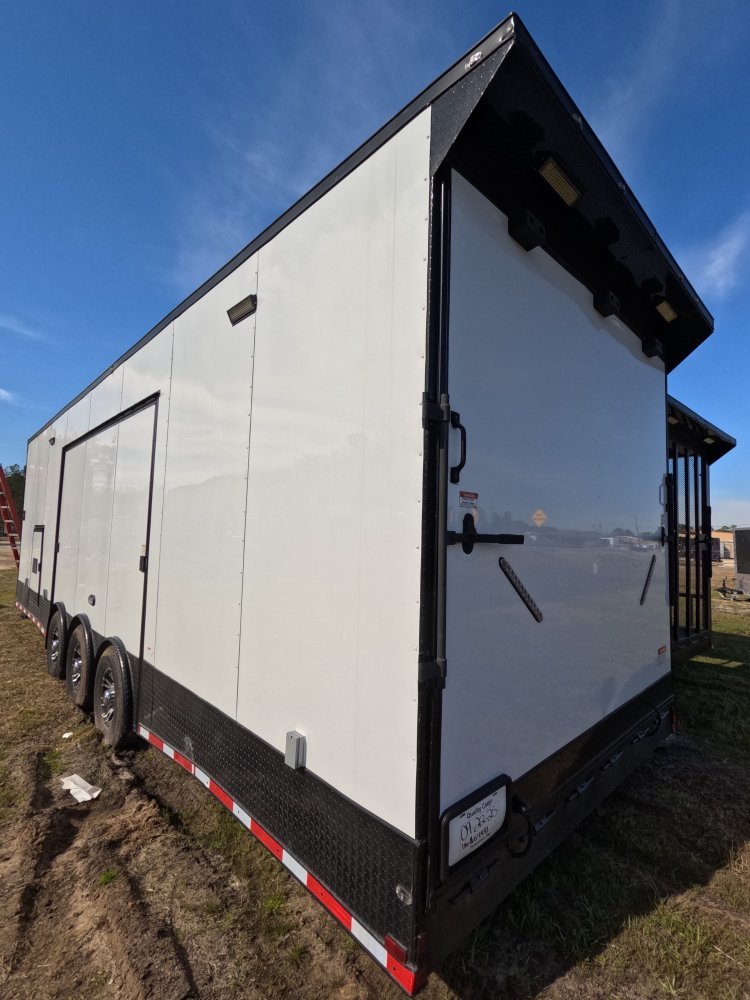

8.5'x32' Quality Cargo Enclosed Car Hauler

Standard Specifications

• 15” Tires

• Silver Mod Wheels

• 32” RV-Style Side Door with Flush Lock

• V-Nose with Vertical ATP Trim

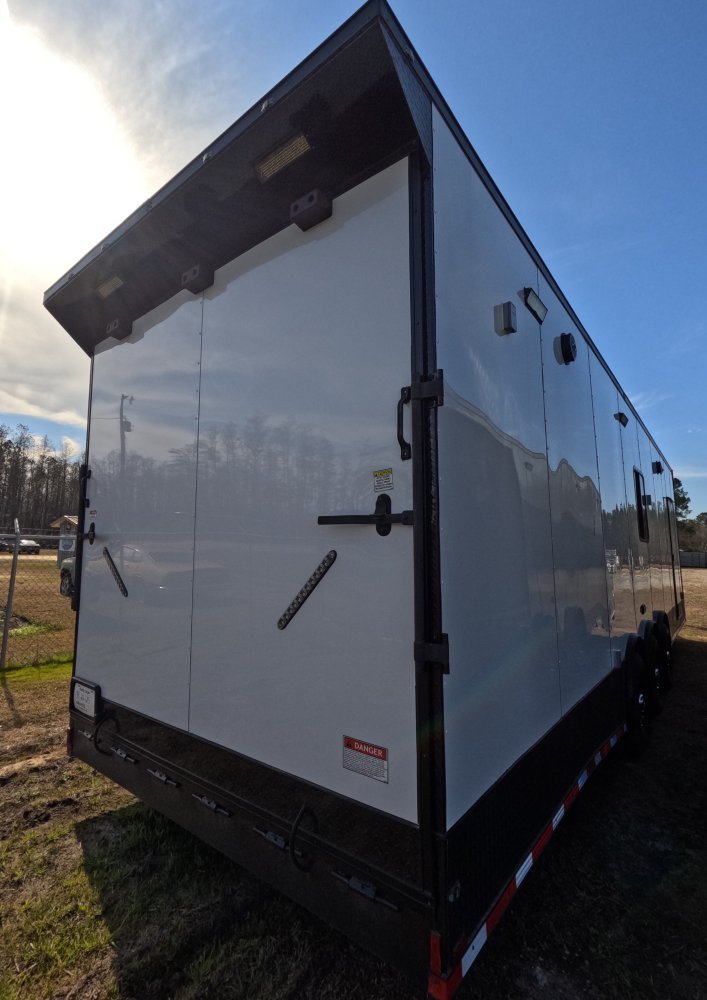

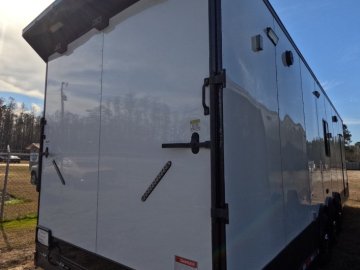

• Rear Ramp Door with Spring Assists and Flap

• Triple 5,200 lb Spring Axles with 4” Drop and EZ-Lube Hubs

• 24” Stoneguard on Front

• White Metal Exterior

• Beavertail Frame

• (4) D-Rings Installed in Floor

• 3/4” Plywood Floor (Painted Underneath)

• Premium 3/8” Plywood Sidewalls

• 1” x 1½” Steel Tube Walls and Ceiling

• 78” (6’6”) Interior Height

• 2000 lb Tongue Jack

• 8” I-Beam Main Frame

• 12V Dome Light with Switch

• Non-Powered Roof Vent or Sidewall Vent

• LED Strip Tail Lights

• Wall Studs 16” O.C.

• Floor Crossmembers 16” O.C.

• Roof Members 24” O.C.

• Screwed Metal Exterior

• Galvalume Roof

• 7-Way Round Electrical Plug

• 2 5/16” Coupler

Structure

• Flat Front with Cast Corners

• Triple Spread Axle Configuration

• 24” Extra Interior Height

• 60” Tongue-to-Top (TTT)

Tie-Downs & Stabilizers

• (4) D-Rings

  • (2) D-Rings on Each Side of Winch Box

  • (2) D-Rings in Rear, 4’ from Double Doors (4’10” Apart)

• (2) Rows of Floor E-Track

• (1) Row of E-Track on Walls Above Carpet – Full Trailer Length

• (1) Additional Row of E-Track on Passenger-Side Wall

  • Between Side Door and Upper Cabinets

  • Mounted 1.5’ AFF

• Stabilizer Jacks – Front and Rear

Tires & Wheels

• Chrome Center Lug Covers

• Radial Tires

• Sand Foot

• Bogey Wheels

Doors, Ramps & Windows

• 36” RV Side Door with Custom Lippert Window

• 95” Wide Rear Ramp Door

  • 36” Aluminum Flap

  • Wedges and Heavy-Duty Bumpers

• Double Doors Installed Immediately in Front of Ramp

  • Full Lexan Windows

• 30” x 30” Window on Passenger Side

  • Located 14’ from Rear

  • 32” Down from Ceiling

Vents & A/C

• Wired and Braced for (2) Mini-Split Systems

• Wired and Braced for Roof A/C

• Wired and Braced for Awning

Exterior

• White Exterior

• Blackout Package

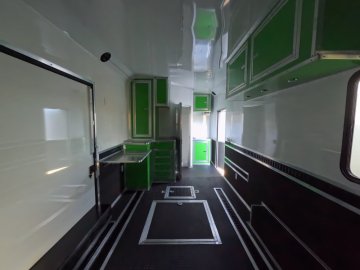

Interior

• 36” Carpet Installed on Cargo Area Walls

• Double-Insulated Walls

• Double-Insulated Ceiling

• White Metal Walls

• White Metal Ceiling

• RTP Flooring

• RTP Ramp and Flap

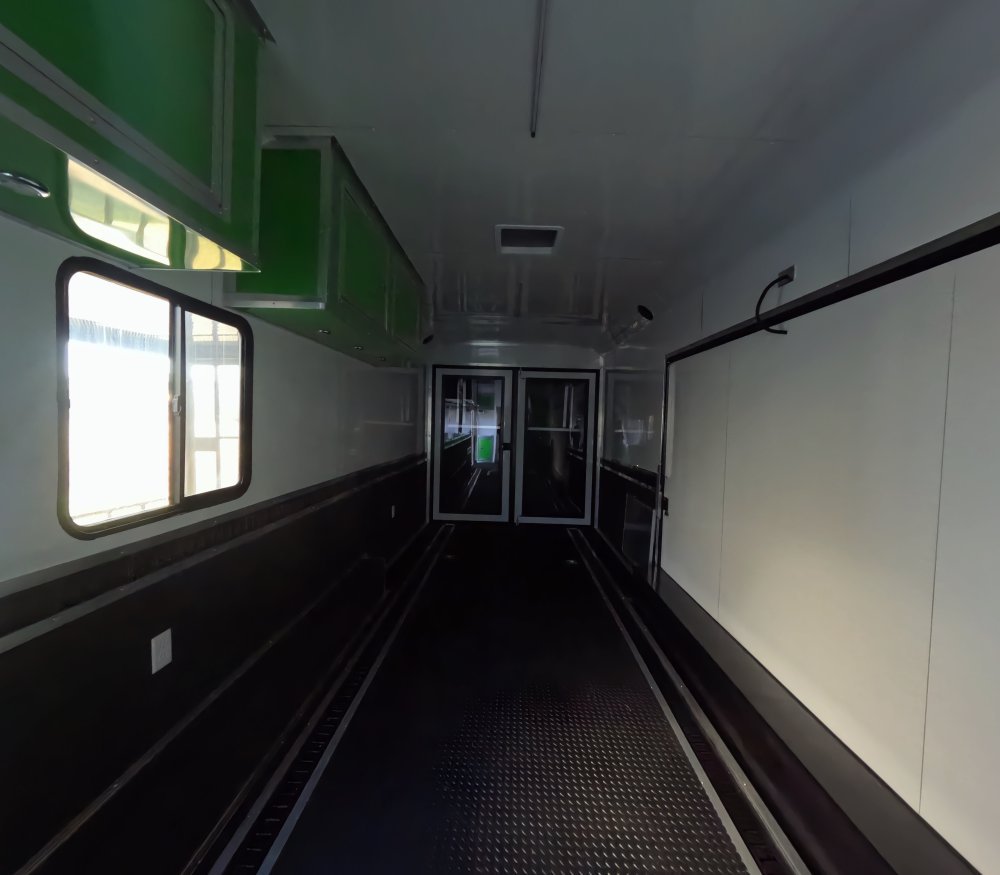

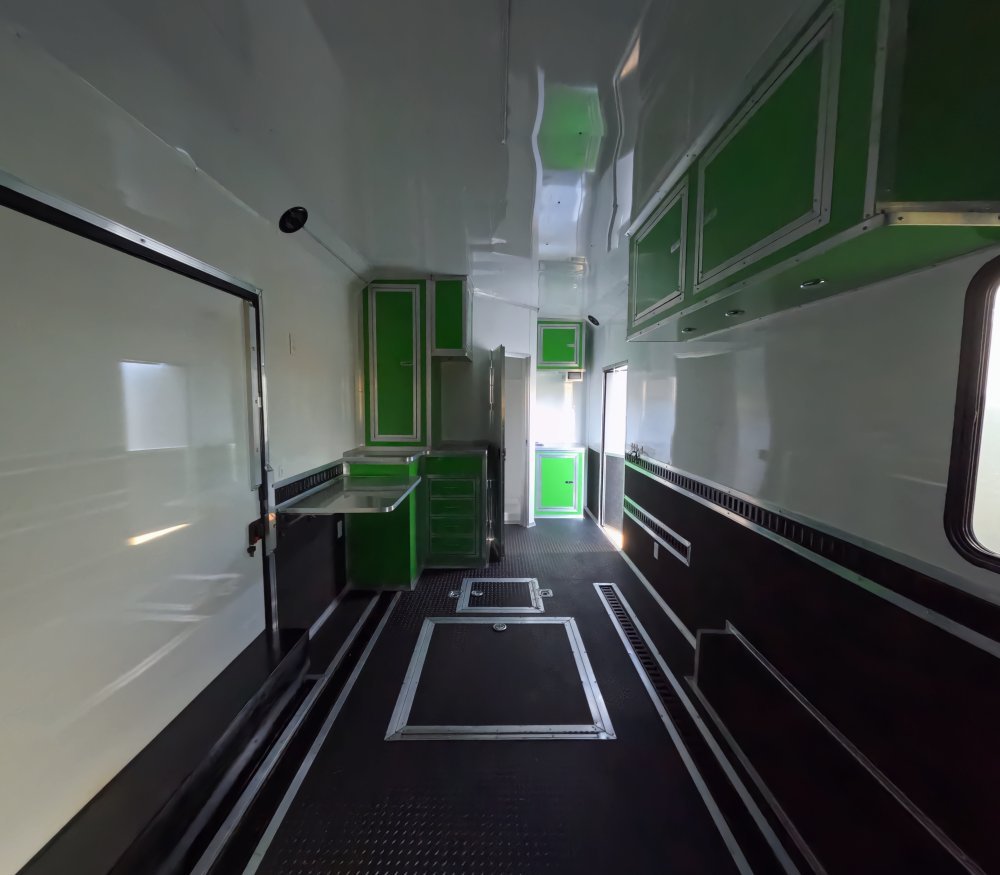

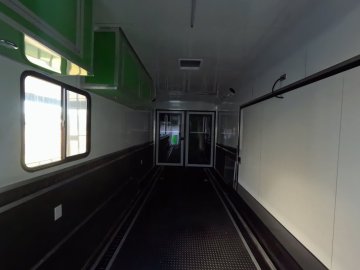

• (2) Sets of Upper Cabinets on Passenger Side

  • 7’ Long x 5.75’ Wide x 24” Tall

  • Installed Over Couches

  • Lift-Up Doors

  • Under-Cabinet Lighting

• Generator / Cooler Compartment

  • 36” x 40”

  • Slide-Out Tray System

  • 36” x 40” Exterior Access Door (Driver Side)

• 2’ x 40” Base Cabinet with (4) Drawers (Next to Generator Compartment)

• Closet Above Generator Compartment

  • 5’6” Tall x 2’ Wide

• 3’ Upper Cabinet with Under-Cabinet Lighting

  • Mounted Above Base Cabinet

  • Tied Into Closet

• Approx. 2.5’ Upper Cabinet and Base Cabinet at Front of Trailer

  • Located Opposite Bathroom

  • Maintain 4” Gap from Wall for Sliding Glass Door

• Drop-Down Tables (Driver Side)

  • Table 1: 3’ Wide x 24” Deep – 36” AFF

  • Table 2: 2.5’ Wide x 24” Deep – 31” AFF

Plumbing

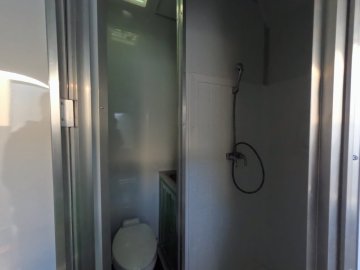

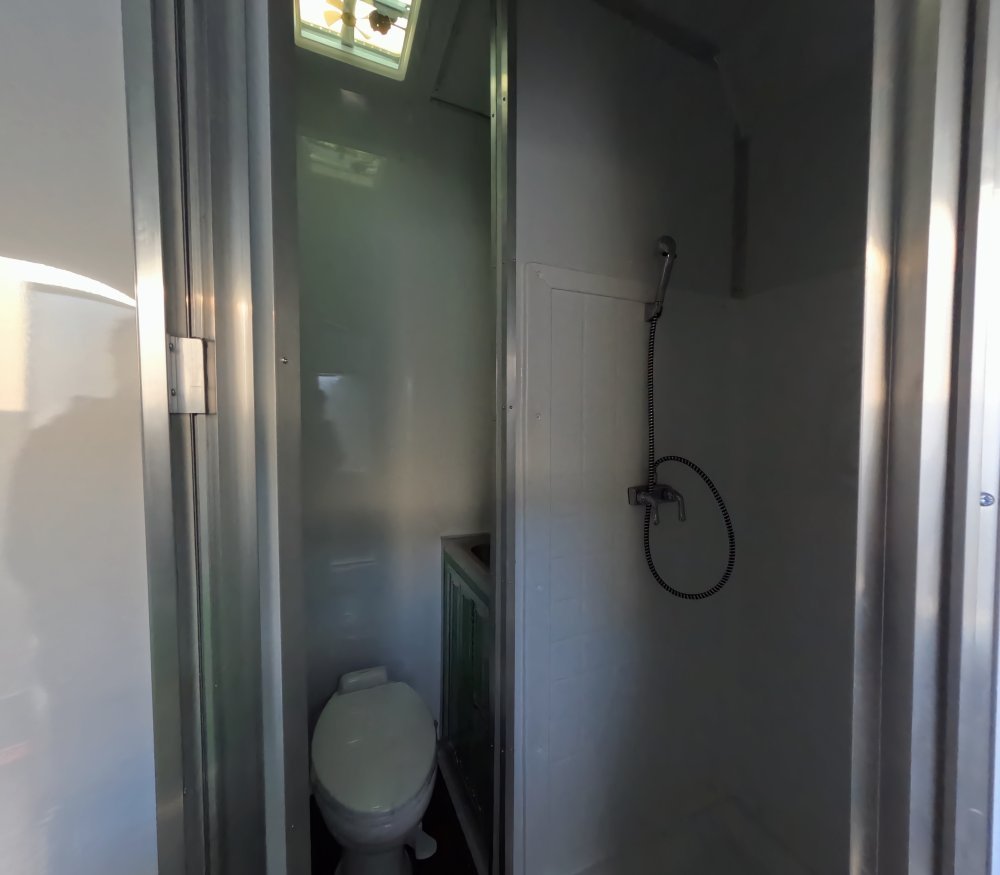

• Full Bathroom Package Located at Front of Trailer

• Enlarged Tank System

  • 50-Gallon Waste Tank

  • 40-Gallon Fresh Water Tank

  • 6-Gallon Water Heater

• 2’ Upper Cabinet Above Bathroom Sink

Electrical

• 100-Amp Electrical Package

• 50-Amp Motor Base Plug

• (2) 12V Batteries with Single Converter

• (6) Additional 110V Receptacles

• (9) Exterior GFCI Outlets

• (1) Interior GFCI

  • Located Right of Sink

  • Mounted 42” AFF

• Dual Angled Tail Lights on Each Side of Ramp

• (5) Race Lights

  • (3) Passenger Side

  • (2) Driver Side

• (2) Vertical Race Lights on Front

  • Aimed at Generator Box

• (4) 48” 12V LED Strip Lights in Cove Trim

• (2) 48” 12V LED Strip Lights Centered in Trailer

• 12V Small Round Puck Lights

  • Under Passenger-Side Upper Cabinets

  • Under 3’ Upper Cabinet

Audio

• Radio System

• (4) Interior Speakers

• (2) Exterior Speakers
