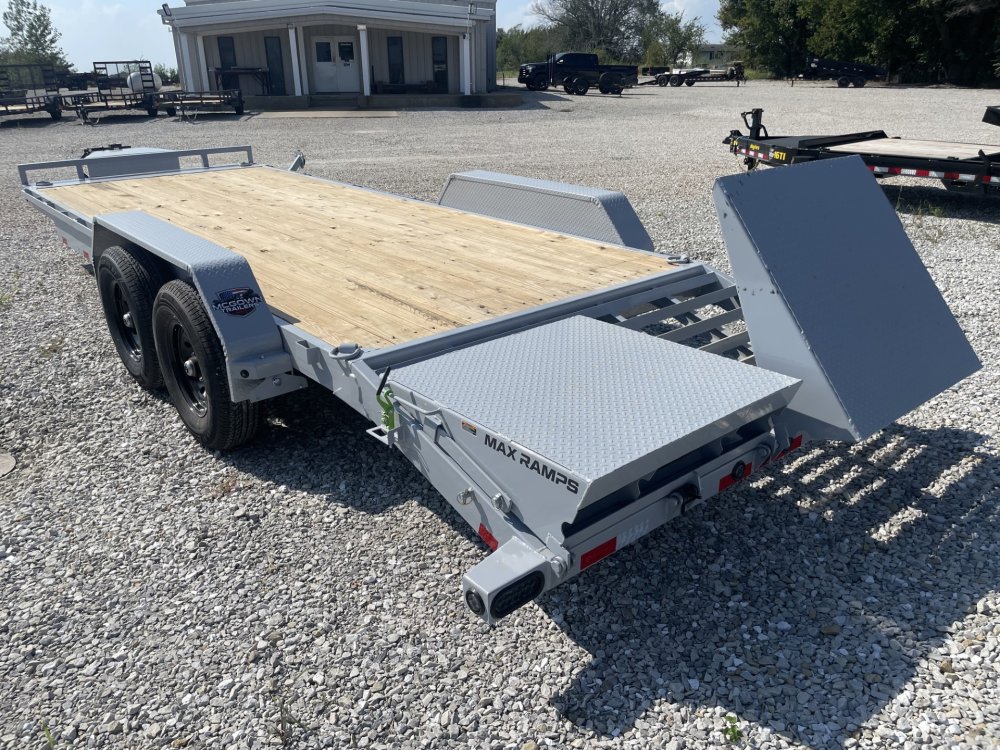

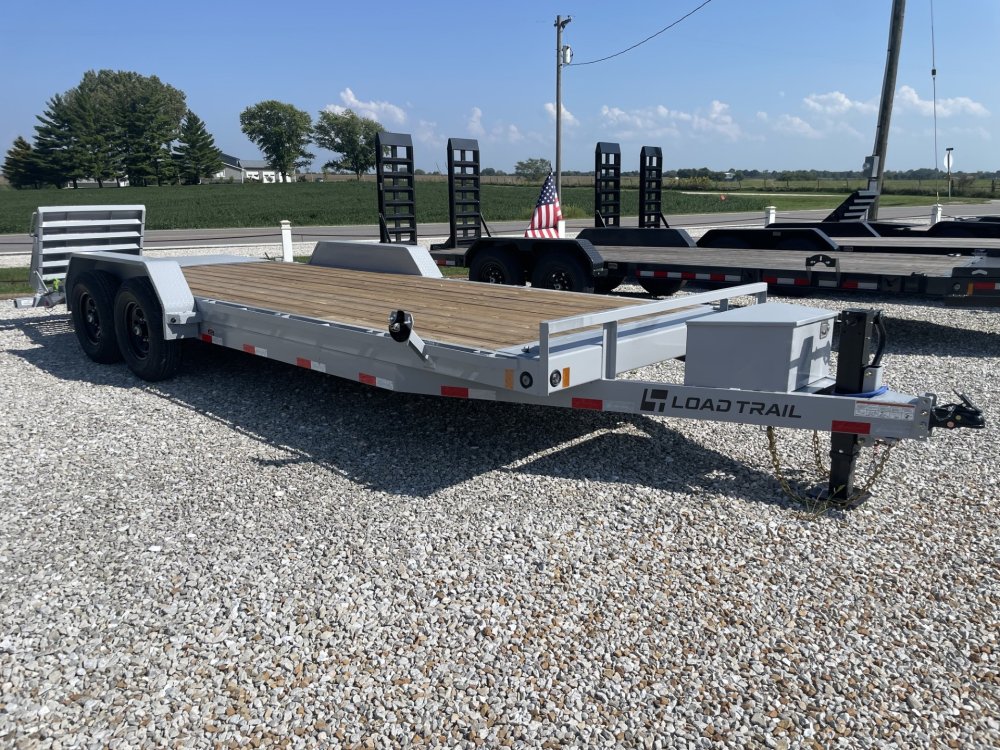

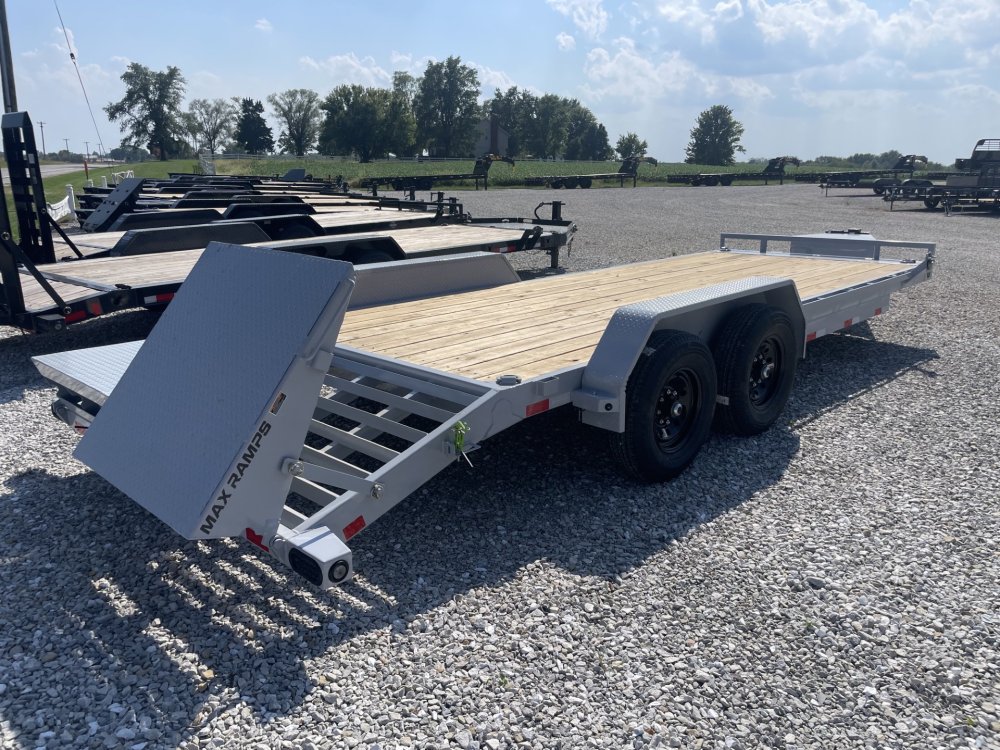

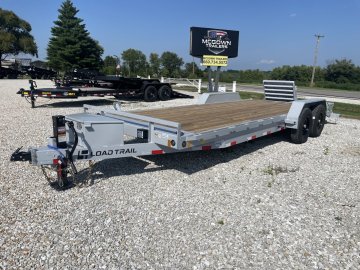

2026 Load Trail CH222 83" x 22ft Equipment Trailer w/ MAX Ramps
$7,625
Trailer Specs
Stock Number:
010786
VIN/Serial Number:
010786
Condition:
New
Year:
2026
Model:
CH222 83" x 22ft Equipment Trailer w/ MAX Ramps
Length:
22"
Width:
83"
GVWR (lbs):
14,000
Options Included:
- Dovetail
- MAX Ramps
- Front Tongue Box
- Winch Plate
- 2" Rub Rail
- 4x D-Rings
- Spare Tire Mount
- Bomber Gray
Standard Features:
| G.V.W.R. | 14,000 lbs |
|---|---|
| G.A.W.R. | 7,000 lbs / Axle |
| TONGUE | 6" Channel |
| FRAME | 6" Channel |
| CROSSMEMBERS | 3" Channel, 16" On-center |
| AXLES | (2) 7,000 lb Dexter 2 Electric NEV-R-ADJUST Brake |
| SUSPENSION | Multi-Leaf Spring |
| COUPLER | 2-5/16" Adjustable |
| JACK | (1) 10,000 lb Drop-leg |
| WHEELS | 16" 8-Hole Wheels |
| TIRES | ST235/80 R16 LRE |
| FENDERS | Removable Steel Diamond Plate |
| DECK | Straight Deck |
|---|---|
| RAMPS | 60" x 22"' Slide-In Ramps |
| FLOOR | Treated Wood |
| D-RINGS | (4) 3" D-rings |
| LIGHTS | LED Stop, Tail, & Clearance Lights |
| WIRING | 16 Ga. 5-Way Double-Insulated Wire Harness |
| PLUG | 7-way Cold Weather Cord |
| SAFETY CHAINS | (2) 5/16" Grade 70 |
| PRETREATMENT | Mechanical and/or Chemical Pretreatment for Maximum Paint Adhesion |
| FINISH | (Black) Sherwin-Williams Powdura OneCure, Primer w/Polyester TGIC Gloss Powder Topcoat |
