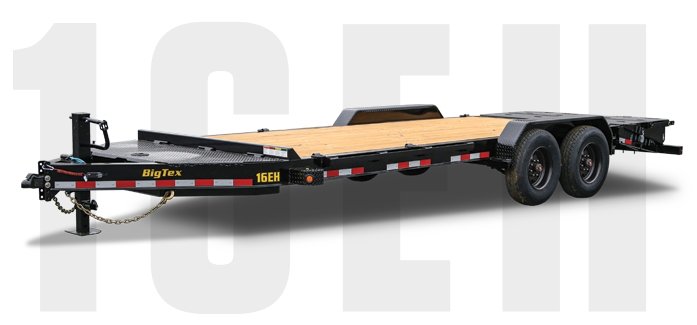

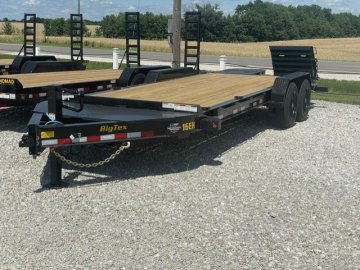

2027 Big Tex Trailers 16EH-22D3A-MRBK 83" x 20ft (19'+3') 17,500# GVWR
$10,299
Trailer Specs
Stock Number:
499469
VIN/Serial Number:
499469
Year:
2027
Length:
20"
Width:
83"
GVWR (lbs):
17,500
The 16EH features a Mega-Sized Toolbox for added storage capacity. It's enhanced with a Full-Length Rub Rail, D-Rings, and Stake Pockets, providing multiple secure tie-down options for a variety of cargo. The 16EH revolutionizes loading and unloading with its Self-Stabilizing Mega Ramps, offering unparalleled flexibility for all your hauling needs.
| Standard Feature | Available Options | |
|---|---|---|
| Axles | 2 - 8,000# Premium, Cambered Axles with Oil Bath and Valcrum Caps | |
| Brakes | Forward Self-Adjusting Electric Brakes on All Hubs | |
| Suspension | Multi-Leaf Slipper Spring w/ Equalizer | |
| Coupler | Adjustable 2-5/16" Demco EZ Latch | Adjustable Pintle in Channel in Lieu of Coupler |
| Safety Chains | 3/8" Grade 70 w/ Safety Latch Hook (2 ea) | |
| Jack | 12,000# Drop-Leg Jack (Side Wind) | |
| Frame | 8" I-Beam | |
| Cross-Members | 3" Channel on 16" Centers | |
| Front Stop Rail | 3/16" Fabricated Front Stop Rail | |
| Floor | Treated Pine Floor | |
| Fenders | 9" x 72" 14 Ga. Diamond Plate Double Square Broke w/Back (Removable) | |

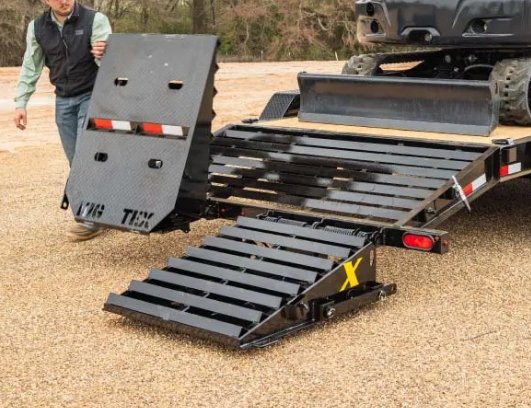

| Ramps | 36" Wide Mega Ramps | |
| Dovetail | 40" Cleated Dovetail | |
| Stake Pockets | Stake Pockets Along Both Sides (Quantity Varies by Length) | |
| Trailer Plug | 7-Way RV | |
| Lights | L.E.D. D.O.T. Stop, Tail, Turn & Clearance | |
| Wiring | Sealed, Modular Cold-Weather Wiring Harness | |
| Tires | ST215/75 R-17.5 Load Range H | |
| Bolt Pattern | 8-Lug | |
| Spare Mount | Spare Tire Compartment in Toolbox | |
| Spare Tire | Not Included | Spare Tire (ST215/75 R-17.5 LR-H) |
| Paint Color | Black | |
| Rubrail | Rub Rail Along Both Sides | |
| Tie-Downs | (6) 5/8" D-Rings | |
| Break-Away Kit | Complete Breakaway System w/ Zip Breakaway Cable | |

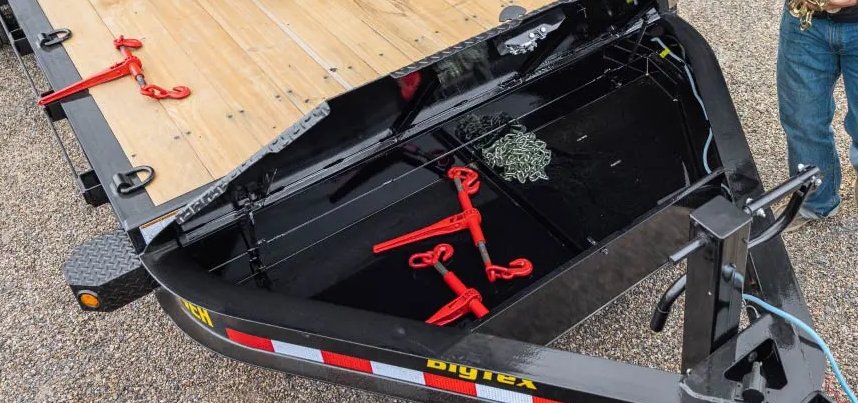

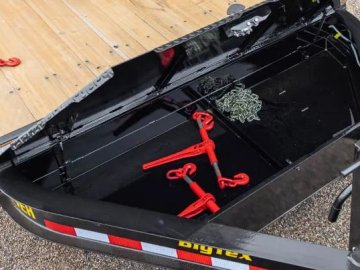

| Storage | Lockable Toolbox Between Risers on Gooseneck ModelMega-Sized Integrated Tongue Box with Lockable Lid (Bumper Pull Only) | |
| Steps & Handles | Convenient Side-Step to Access Deck |
