2027 Load Trail 77" x 12ft Utility Trailer w/ 4ft Rampgate - Gunnmetal Gray-

$2,599
Other - Utility
Trailer Specs
Stock Number: 394100
VIN/Serial Number: 394100
Year: 2027
Model: 77" x 12ft Utility Trailer w/ 4ft Rampgate - Gunnmetal Gray-
Length: 12"
Width: 77"
Height: 19"
GVWR (lbs): 2,990

OPTIONS INCLUDED WITH THIS UNIT: Gray in color, Pipe Top Rail

G.V.W.R.2,990 lbs
G.A.W.R.3,500 lbs/axle
TONGUE3" Channel
FRAME2" x 3" x 3/16" Angle Iron
CROSSMEMBERS2" x 3" Angle Iron, 24" On-center
AXLES(1) 3,500 lb Dexter Idler
SUSPENSIONMulti-Leaf Spring
COUPLER2" A-frame
JACK(1) 2,000 lb Top-wind
WHEELS15" 5Hole Wheels
TIRESST205/75 R15 LRC
SIDE RAILS2" x 2" Square Tube w/2" x 2" Angle Iron Uprights (weld-on)


DECKStraight Deck w/Board Slides
FENDERSSmooth Plate, Weld-on
FLOORTreated Wood Flooring
U-HOOKS(4) 3/8" x 2.75" Cargo Tie-downs
LIGHTSLED Stop, Tail, & Clearance Lights
WIRING16 Ga. 5-Way Double-Insulated Wire Harness
PLUG4-way Plug
SAFETY CHAINS(2) 1/4" Grade 30
PRETREATMENTMechanical and/or Chemical Pretreatment for Maximum Paint Adhesion
FINISH(Black) Sherwin-Williams Powdura OneCure, Primer w/Polyester TGIC Gloss Powder Topcoat

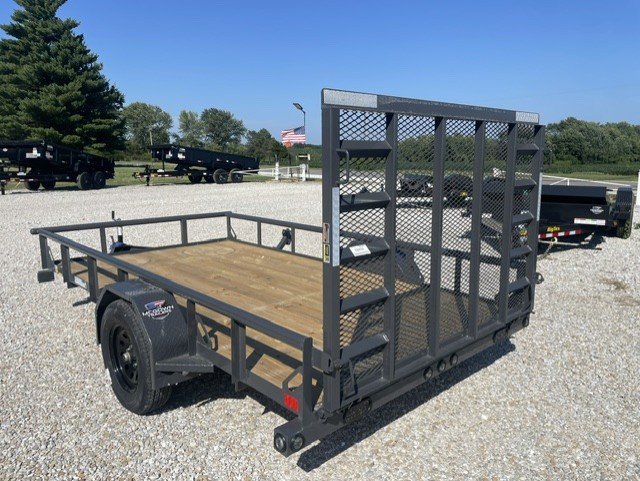

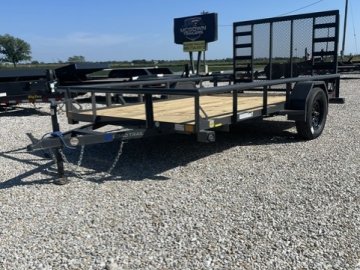

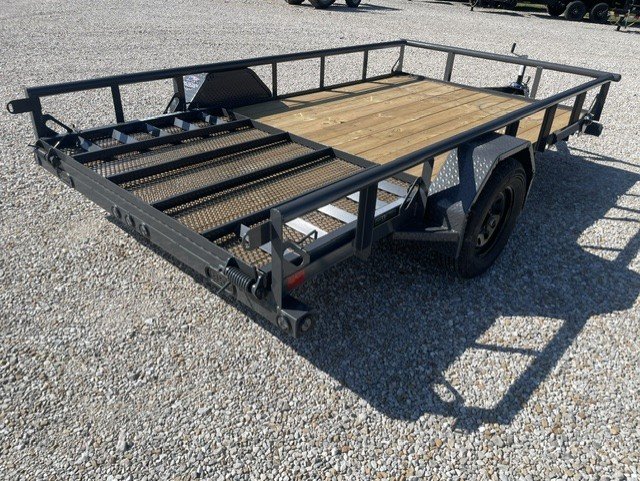

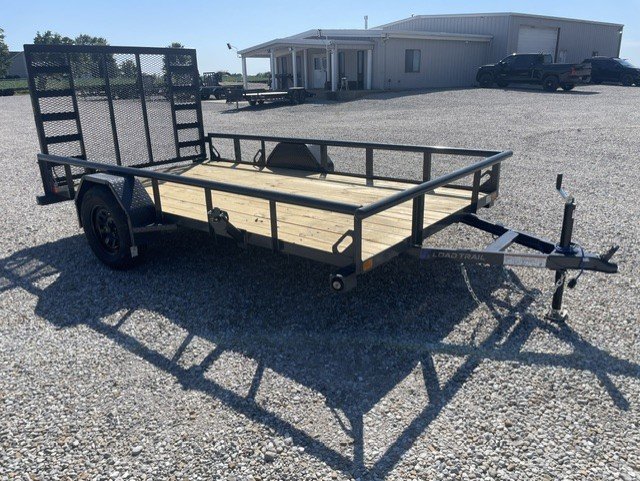

Meet the 2027 Load Trail SE03 Angle Frame Utility SE7712031 (77 x 12)-a compact workhorse with a big "let's get it done" attitude, finished in a sharp that looks ready for action even when it's parked.

Built for the Landscape & Utility world, this open utility trailer keeps things straightforward and practical. You've got a 12-foot (144") cargo area that's long enough to make real progress on weekend projects or jobsite runs, paired with a generous 77" interior width that feels roomy without being bulky to tow. The deck sits at a manageable 19" platform height, making loading and unloading feel less like a workout and more like a smooth routine.

The foundation is all business: a steel frame and steel wheels that match the trailer's no-nonsense mission. Underneath, a single axle with a multi-leaf spring setup and 3,500-lb axle capacity is designed to handle the grind, while a GVWR of 2,990 lbs gives you solid capability for hauling tools, equipment, and materials. Despite that toughness, it keeps a tidy footprint with a dry weight of 1,103 lbs.

Loading is where it really earns its keep. Out back, you get one integrated rear ramp, so it's ready when you are-no separate pieces to wrestle with or forget. Up front, a manual front leveling jack helps you steady things when you're hitching up or parked and loading. Speaking of hitching, the A-frame coupler with a 2" coupler size keeps compatibility simple and common.

Along the sides, the full enclosure side rails/walls help keep cargo corralled and confident, while the plank flooring provides a solid surface for everyday hauling. And when it's time to roll, it rides on ST205/75R15 LRC tires-built trailer-tough for the miles ahead.

In short: it's a clean, capable, utility trailer that's ready to turn "we should" into "done."

Color Options
  • Gray
Warranty
  • Basic Warranty (Months): 24
  • Structure Warranty (Months): 36
Technical Specifications
  • Dimensions: Standard
  • Floor/Deck Length: 12ft
  • Interior Width: 77 in; 1955.8 mm
  • Platform Height: 19 in; 482.6 mm
  • Weight: Standard
  • Dry Weight: 1103 lbs; 500.3 kg
  • GVWR: 2990 lbs; 1356.3 kgs
Exterior
  • Construction: Standard
  • Frame: Steel
  • Trailer Configuration: Open
  • Leveling Jacks: Standard
  • Leveling Jack Type: Front Manual
  • Ramp: Standard
  • Number Of Ramps: 1
  • Ramp Type: Integrated
  • Ramp Location: Rear
  • Side Rail / Wall: Standard
  • Side Rail / Wall Location: Full Enclosure
Cargo Area
  • Cargo Area Dimensions: Standard
  • Cargo Area Length: 12ft
  • Cargo Area Width: 77 in; 1955.8 mm
  • Cargo Area Flooring Type: Plank
  • Tilt Bed: No
  • Cargo Area Rear Door: Optional
Wheels & Tires
  • Wheels: Standard
  • Wheels Composition: Steel
  • Number Of Axles: 1
  • Axle Type: Multi-Leaf Spring
  • Axle Capacity: 3500 lbs; 1587.6 kg
  • Tires: Standard
  • Rear Tire (Full Spec): ST205/75R15 LRC
  • Spare Tire: Optional
Brakes
  • Brakes: Optional
Towing & Hauling
  • Trailer Coupler: Standard
  • Coupler Type: A-Frame
  • Coupler Size (in): 2
Paint & Finish
  • Paint: Standard
