7'x12' Quality Cargo Pet Grooming

Standard Specifications

• 15” Tires
• Silver Mod Wheels
• 32” RV Style Side Door with Flush Lock
• V-Nose with Vertical ATP Trim
• Double Rear Door with Bar Lock or Ramp
• Tandem 3500 lb Spring Axles with 4” Drop & EZ Lube Hubs
• 24” Stoneguard on Front
• White Metal Exterior
• 2” Coupler
• Aluminum Fender with Lights
• 3/4” Plywood Floor (Painted Underneath)
• Premium 3/8” Plywood Sidewalls
• 1” x 1 ½” Steel Tube in Walls and Ceiling
• 75” (6’3”) Interior Height
• 2000 lb Tongue Jack
• 2” x 4” Steel Tube Main Rails
• 12V Dome Light with Switch
• Non-Powered Roof Vent or Sidewall Vent
• LED Strip Tail Lights
• Wall Members 16” O.C.
• Floor Crossmembers 16” O.C.
• Roof Members 24” O.C.
• Screwed Metal Exterior
• Galvalume Roof
• 7-Way Bargman Plug

Structure

• Flat Front with Radius Corners & Header
• 60” Triple Tube Tongue (TTT)
• 9” Extra Height
• 2” x 6” Frame (Required for Tanks)
• Partition Wall (34” from Rear)
• Pull-Out RV Step

Tie-Downs & Stabilizers

• 3,000 lb Electric Tongue Jack

Tires & Wheels

• Mag Wheels
• Chrome Center Lug Covers
• Sand Foot
• Radial Tires

Doors, Ramps & Windows

• 32” RV Side Door with Window (21” from Front)

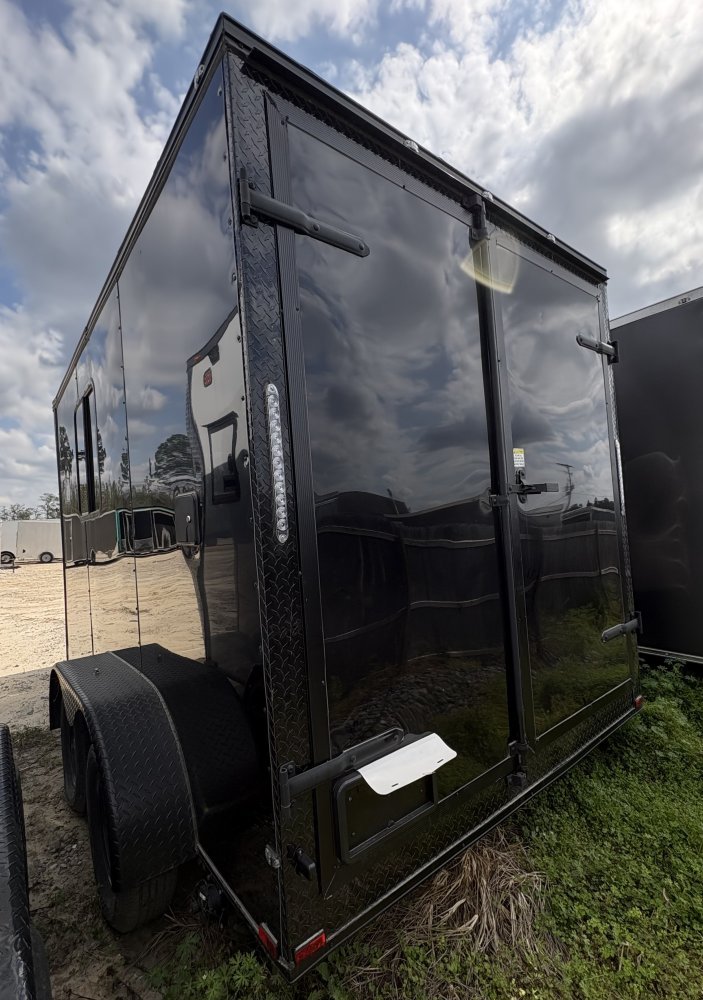

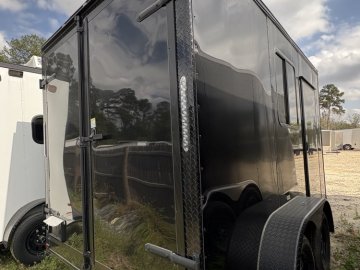

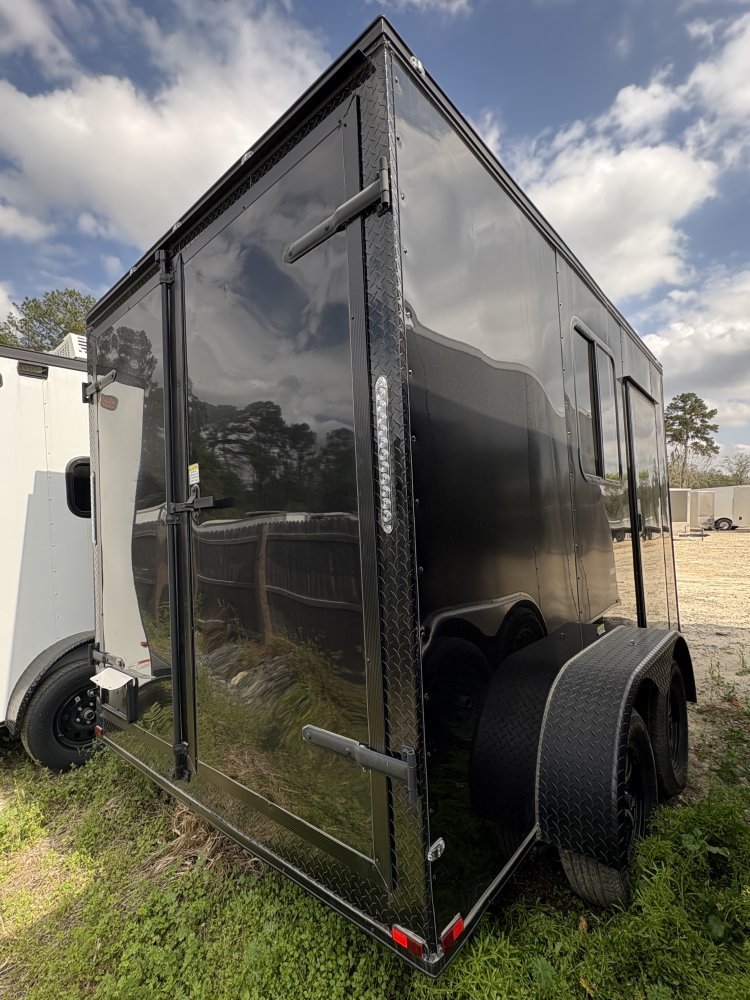

• Rear Barn Doors
• (2) 30” x 30” Windows
• Pull-Out RV Step

Vents & A/C

• 15K BTU A/C with Heat & Thermostat
• Powered Roof Vent (Over Tub)

Exterior

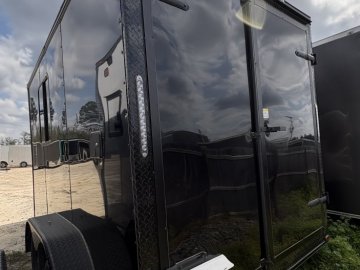

• Black Exterior
• Blackout Package

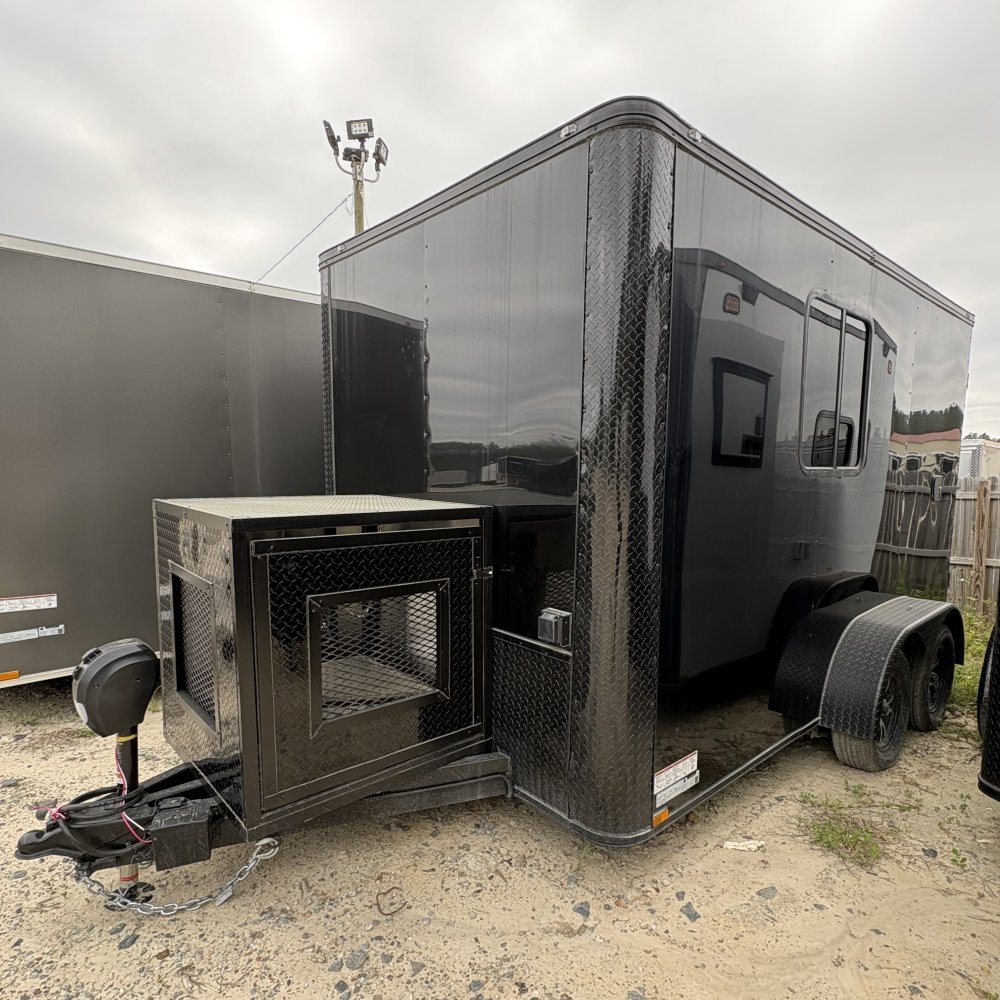

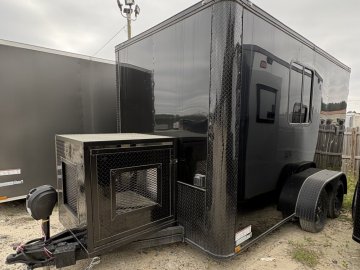

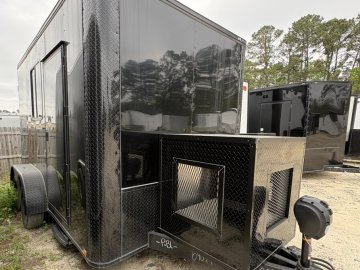

• Generator Box with Heavy-Duty Slide-Out Tray & (4) Vents

Interior

• Cool Seal Liner
• Plywood Trim
• All Black Interior Trim
• Silver Frost Walls
• Silver Frost Ceiling
• Grey Vinyl Floor
• 18” x 24” Full Closet (By Tub, 4 Shelves Evenly Spaced)

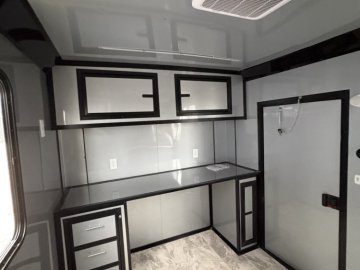

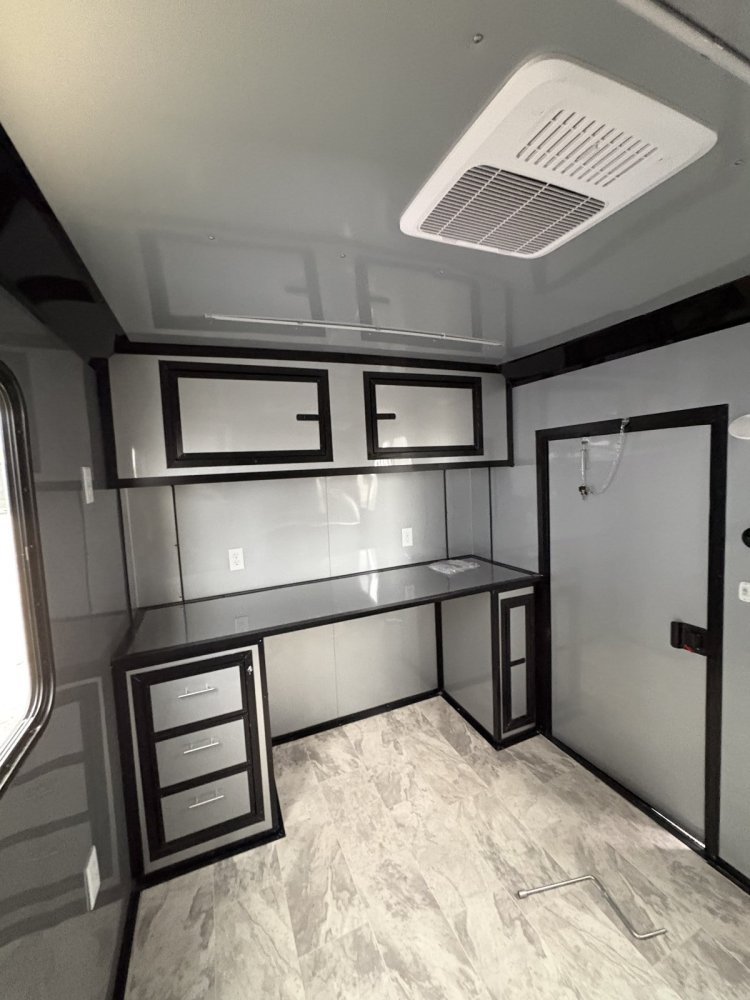

• Upper Cabinet in Flat Front
• Counter with Base Cabinet (One End) & (3) Drawers (Other End)

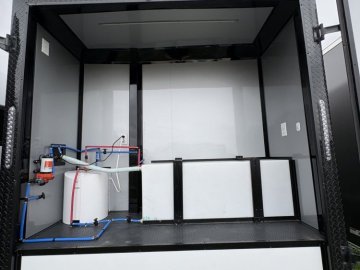

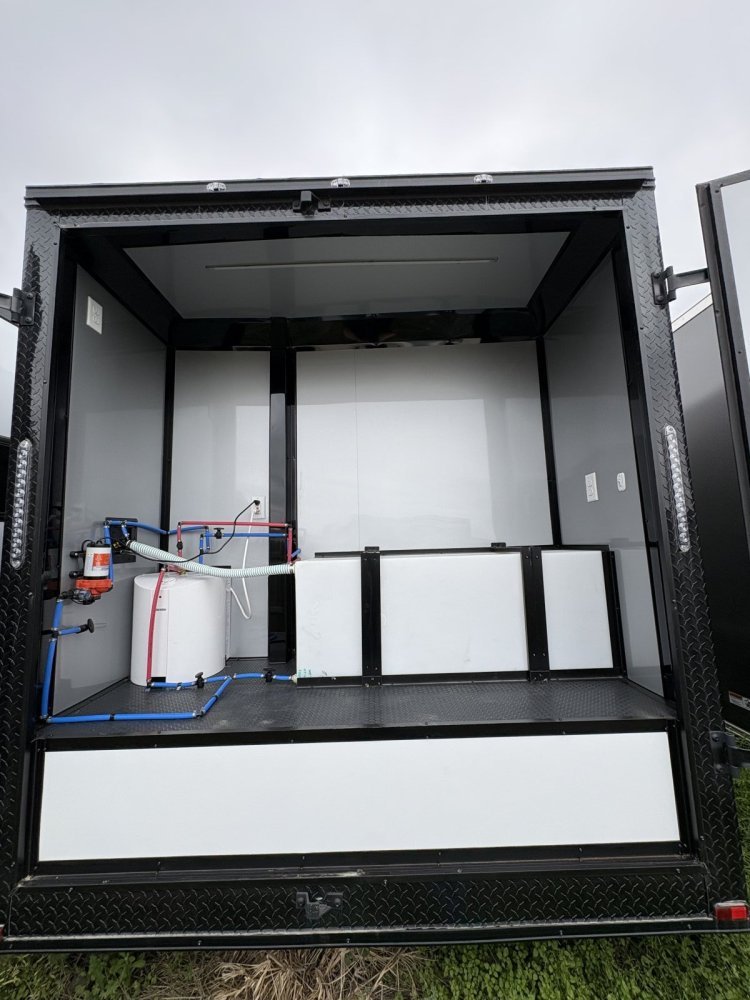

Plumbing

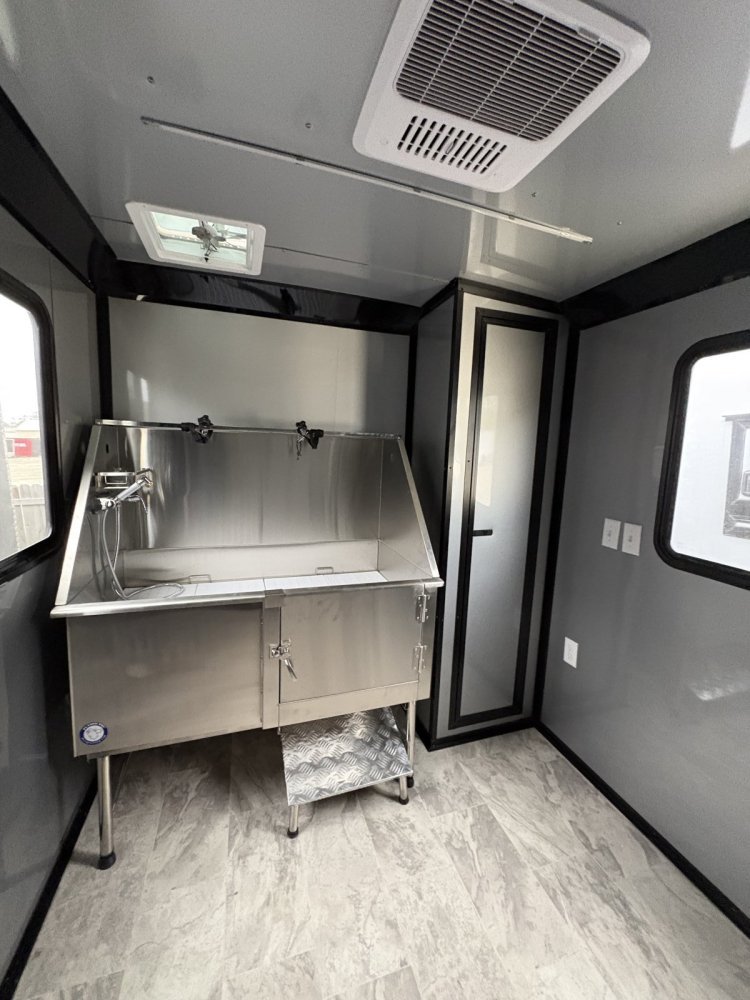

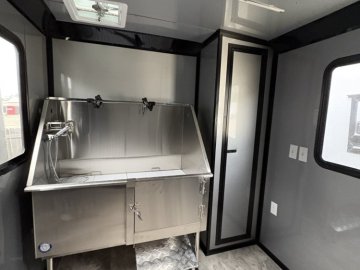

• Water Package with Dog Grooming Station (Electric Flying Pig Tub)
• 60 Gallon Fresh Tank
• 80 Gallon Waste Tank

Electrical

• All LED Exterior Lights
• 100 Amp Electrical Package with 50 Amp Motorbase Plug
• (6) Total Receptacles
  • 2 Between Upper & Lower Cabinets
  • 2 for Dryer & Table
  • 2 Standard Placement
• (3) 12V LED Lights
• 12V Battery with Converter
